Danfoss ICAD 600A electric actuator for ICM motor-operated valves 027H9120

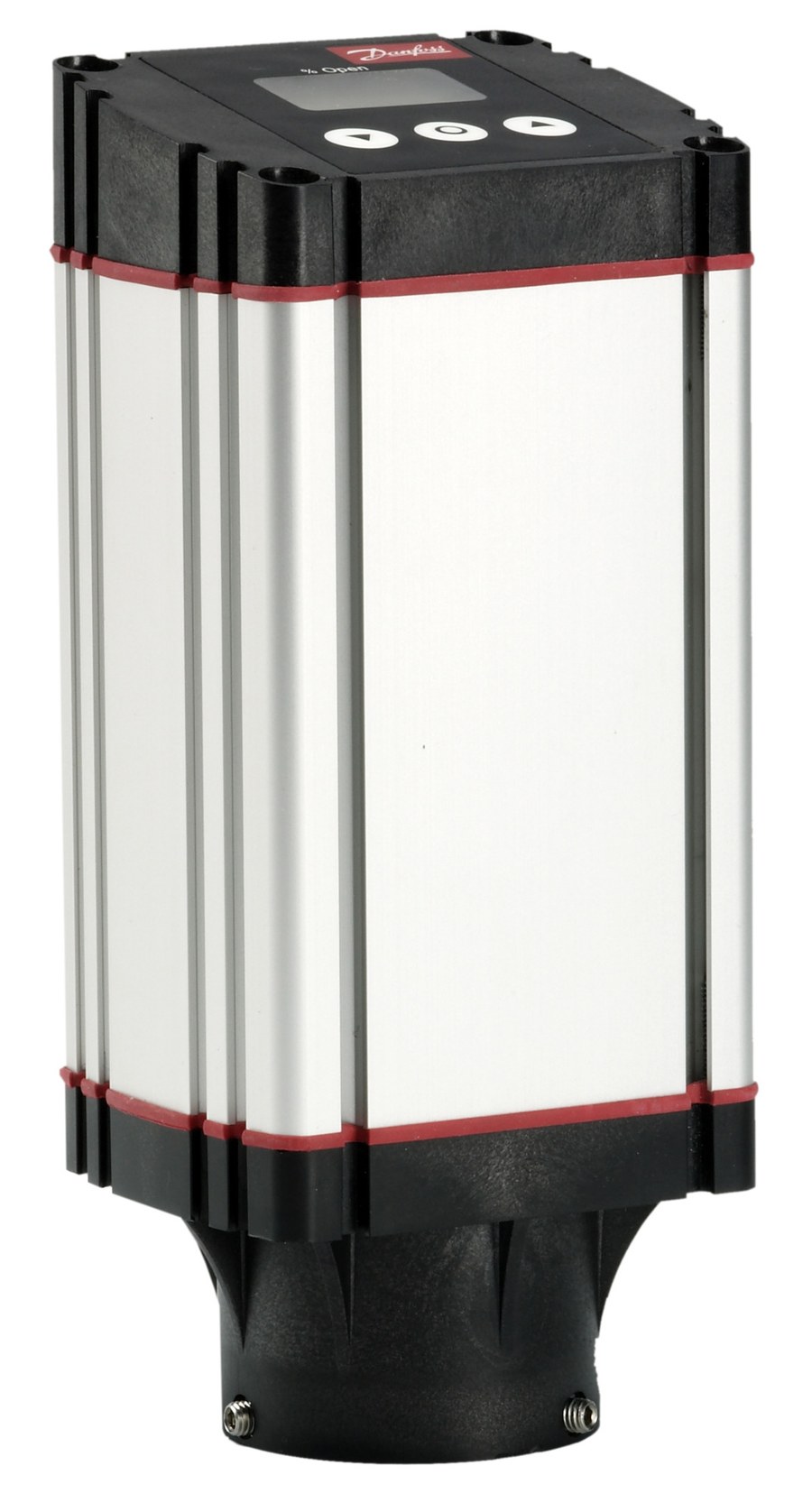

Danfoss ICAD 600A (ICAD) electric actuator for ICM motor-operated valves. Danfoss code number 027H9120. Supplied without cables (M12 connectors). Drives the ICM function module via magnet coupling with continuous position feedback for pressure and temperature regulation in industrial refrigeration.

Brand

Danfoss

Type

ICAD 600A electric actuator (ICAD), without cables

Code number

027H9120

Supply voltage

24 V DC (-15% to +10%)

Supply current

1.2 A

Analog input

4-20 mA / 2-10 V DC

Analog output

4-20 mA

Digital outputs

3 (NPN transistor)

Display

LCD

Enclosure rating

IP67 / NEMA 6

Electrical connection

2 x M12 male connectors

Used for

ICM 20, ICM 25, ICM 32

Temperature range

-30 to 50 °C (-22 to 122 °F)

EAN

5702428898713

Net weight

1.283 kg; gross weight: 1.621 kg

EU RoHS / China RoHS

compliant

Approvals

CE, EAC, UL, CRN

Product group

Press. and temp. regul. valves

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-22 °F

Analog input current opt. [mA] [max]

20 mA

Analog input current opt. [mA] [min]

4 mA

Analog input Volt opt. [V] d.c [max]

10 V

Analog input Volt opt. [V] d.c [min]

2 V

Analog output options [mA] [max]

20 mA

Analog output options [mA] [min]

4 mA

Approval

CE

CE mark

Yes

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.1

Dig. Output-Ext supply [V] d.c [max]

24 V

Dig. Output-Ext supply [V] d.c [min]

5 V

Digital Output-Load [Ohm]

50 Ohm

Digital Output-Max Load [mA]

50 mA

Digital outputs (DO) [pc]

3 pc

Display type

LCD

Enclosure rating IP

IP67

Enclosure rating Nema (~)

6

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Function

Digital output

Load Analog input Current[Ohm]

200 Ohm

Load Analog input Voltage[Ohm]

10000 Ohm

Load Analog output max [Ohm]

250 Ohm

Output configuration

NPN Transistor

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Supply voltage [V] DC

24 V

Supply voltage load [A]

1.2 A

Supply voltage tolerance [%] [max]

10 %

Supply voltage tolerance [%] [min]

-15 %

Temperature range [°C] [max]

50 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

122 °F

Temperature range [°F] [min]

-22 °F

UL approval file name

REFRIGERANT VALVE 53R0

UL mark

Yes

Used for product

ICM 20

Temperature Range

-30 to 50 °C

IP Rating

IP67

Classification / Approval

CE, EAC, UL, CRN

HS Code

9032.89
