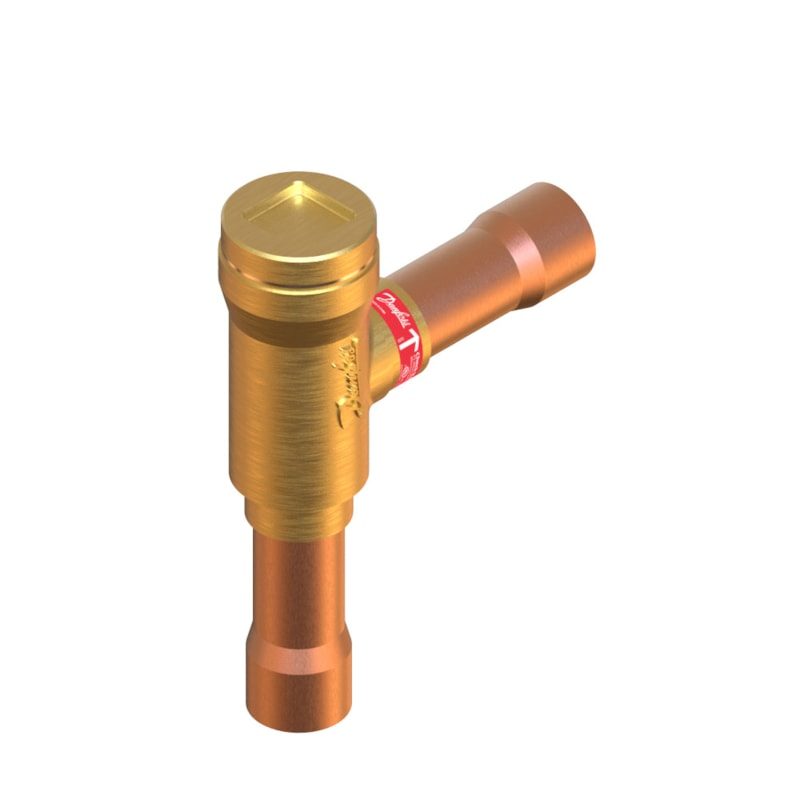

Danfoss NRV 22S Check Valve 22 mm Solder Angleway
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss NRV 22s piston-type check valve (non-return valve), OEM P/N 020-1020. Controls unidirectional refrigerant flow to prevent back-flow in commercial refrigeration and air-conditioning systems. Angleway (90°) pattern, solder ODF connection 22 mm (7/8 in) inlet and outlet. Piston design, single flow. Max working pressure 46 bar (667 psig); media temperature -50 °C to 140 °C. Suitable for oil-free applications. Refrigerant compatibility is listed on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 020-1020
- Model
- NRV 22s piston-type check valve (non-return valve), angleway variant
- Category
- HVAC & Refrigeration — Check Valves
- Direction
- Angleway
- Connection
- Solder, ODF, 22 mm (7/8 in), inlet and outlet
- Max working pressure (PS/MWP)
- 46 bar (667 psig)
- Media temperature range
- -50 °C to 140 °C (-58 °F to 285 °F)
- Kv
- 8.5 m³/h
- Min. pressure drop
- 0.04 bar (0.6 psi)
- Flow
- single flow, piston design; embossed 1-way flow arrow
- Net weight
- 0.515 kg
- EAN
- 5702422028925
- Materials
- Valve body brass; connection copper
- Approvals
- UL (C UL US Listed), EAC
- Refrigerant compatibility per the NRV/NRVH datasheet; suitable for oil-free applications
Standards & Compliance
- Material
- Valve body brass; connection copper — full material breakdown in the NRV/NRVH datasheet
- Pressure Rating
- 46 bar (667 psig) max working pressure
- Temperature Range
- -50 °C to 140 °C
- Classification / Approval
- UL (C UL US Listed), EAC
- HS Code
- 8481.30
Compatibility & Fitment
Install in the direction of the flow arrow. The differential pressure across the valve must exceed the opening pressure, including at the lowest capacity of capacity-regulated compressors. Angleway (90°) pattern with solder ODF connections. Verify code and connection size before ordering.
