Danfoss GBC 18S Shut-off Ball Valve 3/4 in Solder ODF 009G7024
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 18s manually operated shut-off ball valve, OEM P/N 009G7024. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-flow design with solder ODF connections, 3/4 in inlet and outlet. Brass valve body with copper connections and a brass cap with wire seal. Max working pressure 45 bar (650 psig), max test pressure 65 bar (940 psig); media temperature -40 °C to 150 °C. This code is discontinued by Danfoss with a replacement available — listed for spares identification. Refrigerant compatibility is on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 009G7024
- Model
- GBC 18s shut-off (stop) ball valve
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-flow (no installation direction)
- Connection
- Solder, ODF, 3/4 in, inlet and outlet
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Max test pressure
- 65 bar (940 psig)
- Media temperature range
- -40 °C to 150 °C (-40 °F to 300 °F)
- Kv
- 21.93 m³/h
- Cv
- 25.35 gal/min
- Net weight
- 0.374 kg
- Gross weight
- 0.438 kg
- Materials
- Valve body brass; connection copper; cap with wire seal
- Approvals
- C UL US Listed, EAC, CE
- Lifecycle
- Discontinued by Danfoss, replacement available
- Refrigerant compatibility
- R134a, R22, R32, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R507A, R513A, R1234ze(E)
- Code number
- 009G7024
- Product type
- GBC 18s
- Product group
- Shut-off and regulating valves
- Body material
- Brass
- Connection material
- Copper
- Inlet connection type
- Solder, ODF
- Inlet size
- 3/4 in
- Outlet connection type
- Solder, ODF
- Outlet size
- 3/4 in
- Cv value
- 25.350 gal/min
- Temperature range
- -40 °C to 150 °C
- Refrigerants
- R1234ze(E); R134a; R22/R407C; R32; R404A/R507A; R407A; R407F; R410A; R448A; R449A; R450A; R452A; R513A
- Fluid Group
- 1; 2
- PED category
- Art. 4, par. 3
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EAN
- 5702428065597
- Access port
- No
- Equipment
- Cap w. wire seal
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 2-way arrow
Standards & Compliance
- Material
- Valve body brass; connection copper — full material breakdown in the GBC datasheet
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 150 °C
- Classification / Approval
- C UL US Listed, EAC, CE, UL
- HS Code
- 8481.80
Compatibility & Fitment

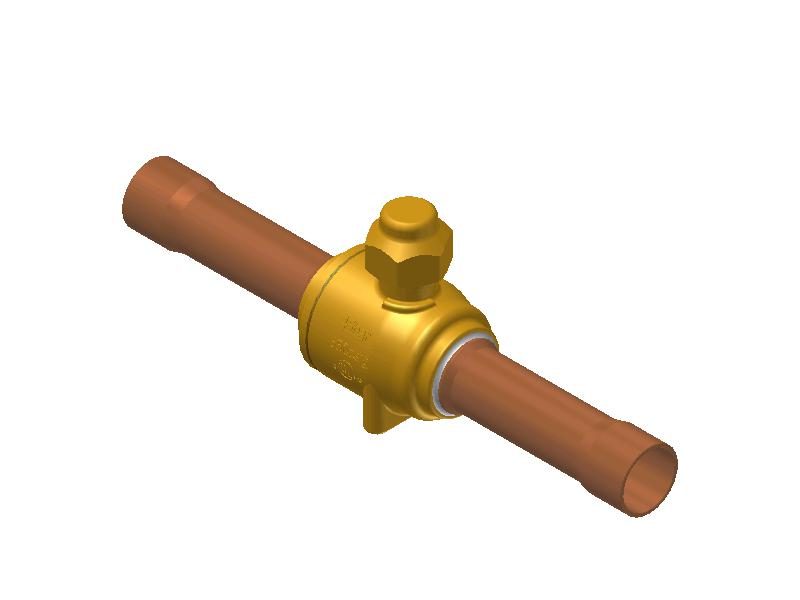

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-flow (no installation direction). Solder ODF connections — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (size-independent body) shared across the GBC line.
