Danfoss GBC 10S Shut-off Ball Valve 3/8 in Solder ODF 009G7021
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 10s manually operated shut-off ball valve, OEM P/N 009G7021. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-flow design with solder ODF connections, 3/8 in inlet and outlet. Brass valve body with copper connections and a brass cap with wire seal. Max working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 009G7021
- Model
- GBC 10s shut-off (stop) ball valve
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-flow (no installation direction)
- Connection
- Solder, ODF, 3/8 in, inlet and outlet
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Media temperature range
- -40 °C to 100 °C (-40 °F to 212 °F)
- Kv
- 7.52 m³/h
- Cv
- 8.69 gal/min
- Net weight
- 0.216 kg
- Gross weight
- 0.284 kg
- Materials
- Valve body brass; connection copper; cap with wire seal
- Approvals
- C UL US Listed, EAC, CE
- Refrigerant compatibility
- R134a, R22, R32, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R507A, R513A, R1234ze(E)
- Code number
- 009G7021
- Product type
- GBC 10s
- Product group
- Shut-off and regulating valves
- Body material
- Brass
- Connection material
- Copper
- Inlet connection type
- Solder, ODF
- Inlet size
- 3/8 in
- Outlet connection type
- Solder, ODF
- Outlet size
- 3/8 in
- Cv value
- 8.690 gal/min
- Temperature range
- -40 °C to 100 °C
- Refrigerants
- R1234ze(E); R134a; R22/R407C; R32; R404A/R507A; R407A; R407F; R410A; R448A; R449A; R450A; R452A; R513A
- Fluid Group
- 1; 2
- PED category
- Art. 4, par. 3
- UL approved refrigerants
- R134a; R22; R404A; R407A; R407C; R407F; R410A; R448A; R449A; R450A; R452A; R507A; R513A
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EAN
- 5702428065511
- Access port
- No
- Equipment
- Cap w. wire seal
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 2-way arrow
- Ignition source assessment
- Yes
Standards & Compliance
- Material
- Valve body brass; connection copper — full material breakdown in the GBC datasheet
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 100 °C
- Classification / Approval
- C UL US Listed, EAC, CE
- HS Code
- 8481.80
Compatibility & Fitment

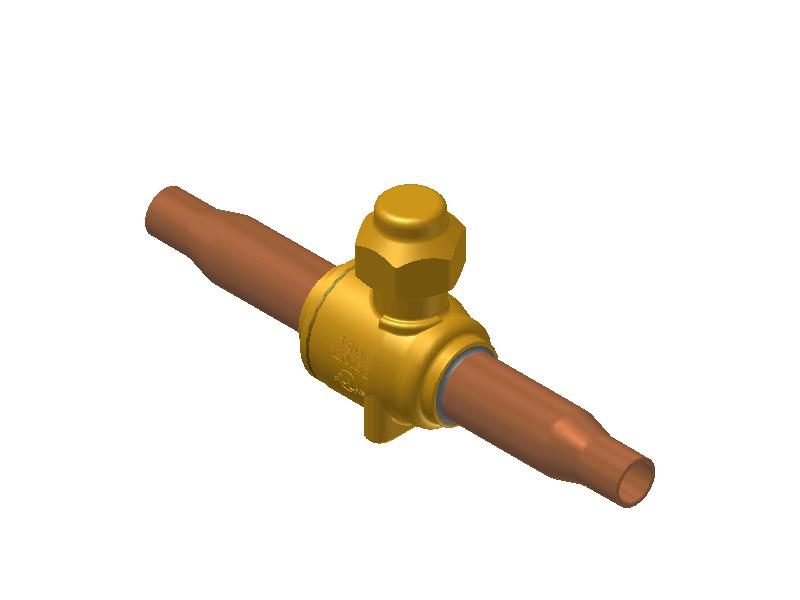

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-flow (no installation direction). Solder ODF connections — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (size-independent body) shared across the GBC line.
