Danfoss GBC 54s Shut-off Ball Valve 54 mm (2 1/8 in) Solder ODF 009L7029
Danfoss · HVAC & Refrigeration · Ball Valves
Danfoss GBC 54s manually operated shut-off ball valve, OEM P/N 009L7029. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF connections, 54 mm (2 1/8 in) inlet and outlet. Brass body with copper tube and a one-piece wire-seal cap. This version has no access port. Max working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Specifications
- Part number
- 009L7029
- HS code
- 8481.80
- Material
- Brass body; copper tube — full material breakdown in the GBC datasheet
- Pressure rating
- 45 bar (650 psig) max working pressure
- Temperature range
- -40 °C to 100 °C
Compatibility

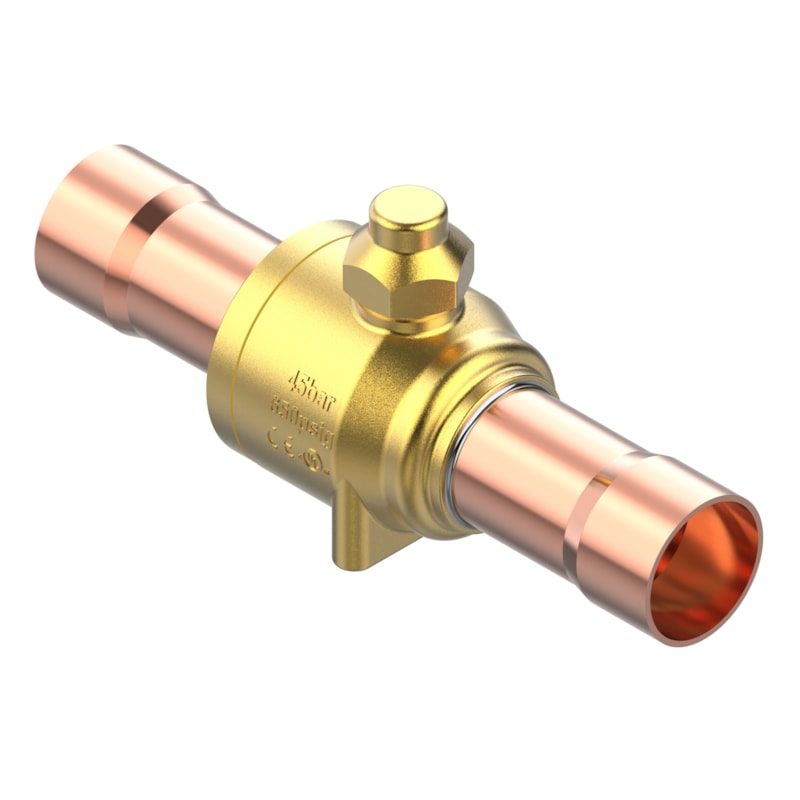

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF 54 mm (2 1/8 in) connections, no access port — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
Standards
Approvals
