Danfoss GBC 79S Shut-off Ball Valve 3 1/8 in Solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 79s manually operated shut-off ball valve, OEM P/N 009L7980. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF connections, 3 1/8 in inlet and outlet. Brass body with copper tube and a one-piece wire-seal cap. This version has no access port. Max working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 009L7980
- Model
- GBC 79s shut-off (stop) ball valve
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODF, 3 1/8 in, inlet and outlet
- Access port
- No
- Max working pressure (PS/MWP)
- 45 bar (650 psig)
- Media temperature range
- -40 °C to 100 °C (-40 °F to 212 °F)
- Kv
- 528.87 m³/h
- Cv
- 611.37 gal/min
- Net weight
- 9.1 kg
- Gross weight
- 10.806 kg
- Materials
- Brass body; copper tube; one-piece wire-seal cap
- PED category
- I
- Approvals
- C UL US Listed, CCS, CE
- Refrigerant compatibility
- R134a, R22/R407C, R290, R32, R404A/R507, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1233zd(E), R1234ze(E), R1234yf
- Code number
- 009L7980
- Product type
- GBC 79s
- Product group
- Shut-off and regulating valves
- Body material
- Brass
- Connection material
- Copper
- Connection notes
- Full Port 79s
- Inlet connection type
- Solder, ODF
- Inlet size
- 3 1/8 in
- Outlet connection type
- Solder, ODF
- Outlet size
- 3 1/8 in
- Cv value
- 611.370 gal/min
- Max. media temp. Oil free
- 80 °C
- Temperature range
- -40 °C to 100 °C
- Refrigerants
- R1234yf; R1234ze(E); R134a; R22/R407C; R32; R404A/R507A; R407A; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B; R516A
- Fluid Group
- 2
- UL approved refrigerants
- R1234yf; R1234ze(E); R134a; R22; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A
- UL mark
- Yes
- CE mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EAN
- 5702428006897
- Equipment
- Cap w. wire seal
- Flow direction
- Bi-flow
Standards & Compliance
- Material
- Brass body; copper tube — full material breakdown in the GBC datasheet
- Pressure Rating
- 45 bar (650 psig) max working pressure
- Temperature Range
- -40 °C to 100 °C
- Classification / Approval
- C UL US Listed, CCS, CE
- HS Code
- 8481.80
Compatibility & Fitment

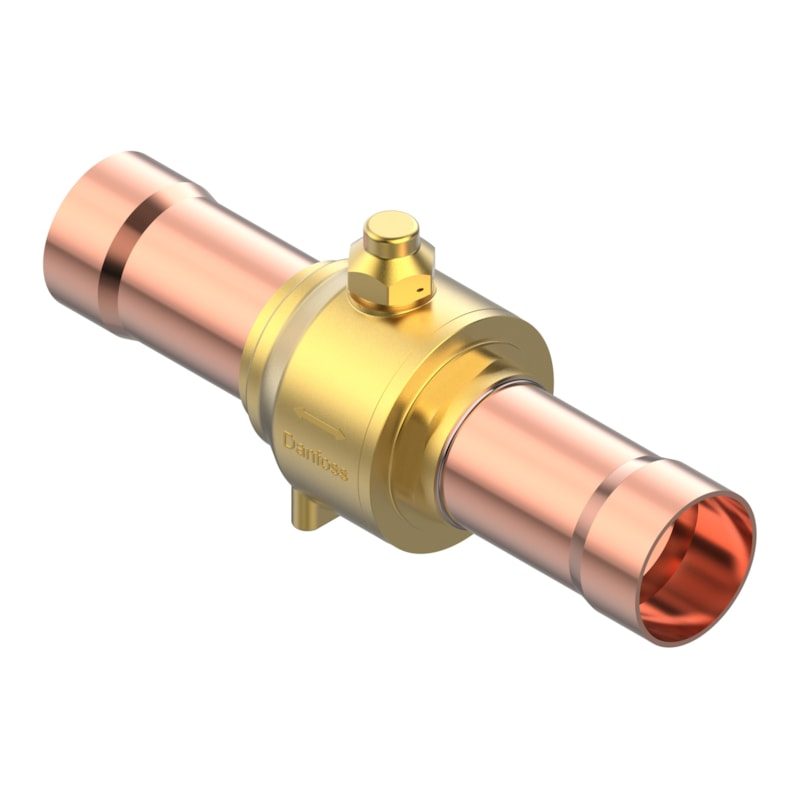

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF 3 1/8 in connections, no access port — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
