Danfoss GBC E 67s RP Shut-off Ball Valve 2 5/8 in Solder ODF with Access Port 009L7066
Danfoss · HVAC & Refrigeration · Ball Valves
Danfoss GBC E 67s RP manually operated shut-off ball valve, OEM P/N 009L7066. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF connections, 2 5/8 in (67 mm) inlet and outlet. This is the reduced-port (RP) version: a smaller flow path than the full-bore code, with a lower Kv. This version has an external Schrader access port (7/16-20 UNF). Max working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge. Per the GBC datasheet, GBC 35s to 79s are not PED-approved for flammable refrigerants.
Specifications
- Part number
- 009L7066
- HS code
- 8481.80
- Material
- Brass body; copper tube — full material breakdown in the GBC datasheet
- Pressure rating
- 45 bar (650 psig) max working pressure
- Temperature range
- -40 °C to 100 °C
Compatibility

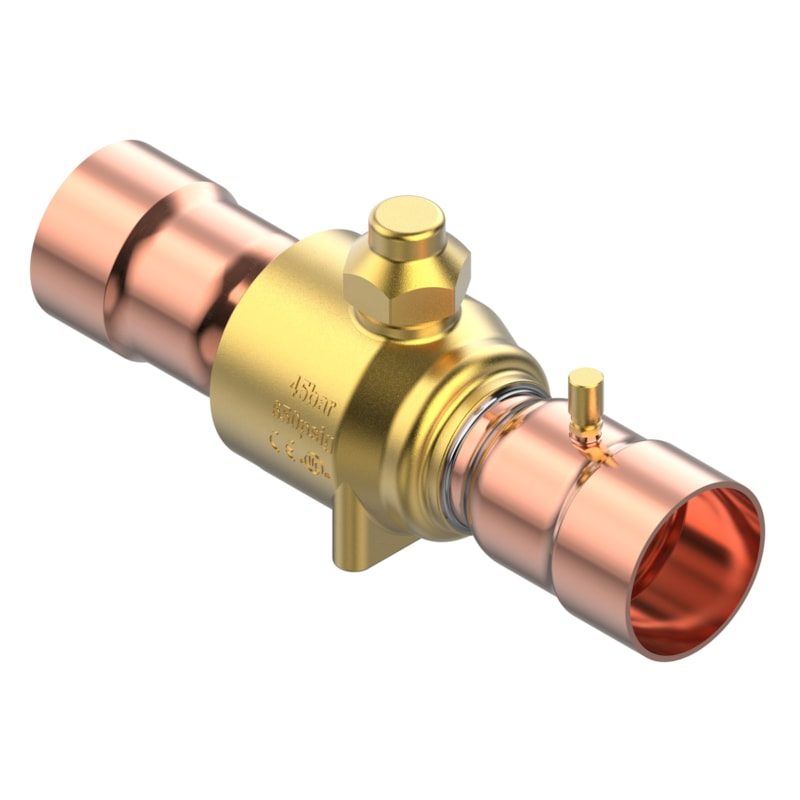

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF 2 5/8 in connections, access port Yes, reduced port — verify code and connection size before ordering. GBC 35s to 79s are not PED-approved for flammable refrigerants (per datasheet). Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
Standards
Approvals
