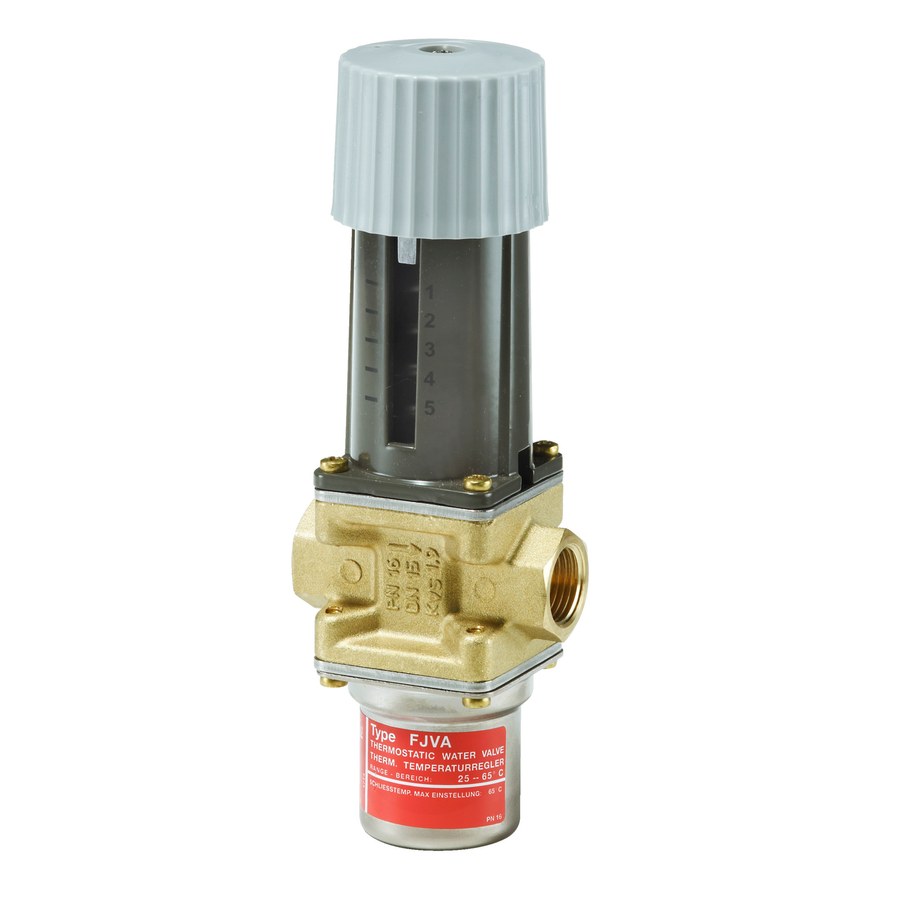

Danfoss FJVA 15 Thermostatically Operated Water Valve G 1/2 25–65 °C 003N8211
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FJVA 15 thermostatically-operated water valve, OEM P/N 003N8211. Regulates cooling-water flow from a temperature sensor; the valve opens on rising sensor temperature. Temperature regulating range 25 °C – 65 °C. Water connection 1/2 G (ISO 228-1). Kv 1.9 m³/h. Body Brass. Max working pressure 16 bar (232 psig). Media Neutral media. OEM designation "". OEM P/N 003N8211. EAN 5702423002870. Technical data quoted verbatim from store.danfoss.com (code 003N8211).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N8211
- Model
- FJVA 15
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Thermostatically-operated water valve
- Nominal size
- FJVA 15 (DN 15)
- Opening configuration
- Opens on rising sensor temp.
- Temperature regulating range
- 25 °C – 65 °C
- Water connection size
- 1/2 G
- Connection standard
- ISO 228-1
- Kv value
- 1.9 m³/h (Cv 2.2 gal/min)
- Orifice size
- 15 mm (3/5 in)
- Bypass diameter
- 2 mm
- Max differential pressure
- 10 bar
- Max working pressure
- 16 bar (232 psig)
- Body material
- Brass
- Media
- Neutral media
- Medium temperature range
- -25 °C to 130 °C (-13 °F to 266 °F)
- Approvals
- PED, EAC, China RoHS, RoHS
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Packing
- Multi pack (10 pc)
- Volume
- 4.082 L
- Net weight
- 1.122 kg
- Gross weight
- 1.354 kg
- OEM description
- EAN: 5702423002870
- HS code
- 8481.80
- EAN
- 5702423002870
Standards & Compliance
- Size / Series
- FJVA 15
- Material
- Brass
- Thread Standard
- ISO 228-1
- Pressure Rating
- 16 bar (232 psig) max working pressure
- Temperature Range
- Regulating range 25 °C–65 °C; medium -25 °C to 130 °C
- Classification / Approval
- PED, EAC, China RoHS, RoHS
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the cooling-water line with the flow arrow in the direction of flow; the sensor senses the medium temperature and the valve opens on rising temperature. Match connection and temperature range to the application. Confirm code before ordering.
Product Documentation
