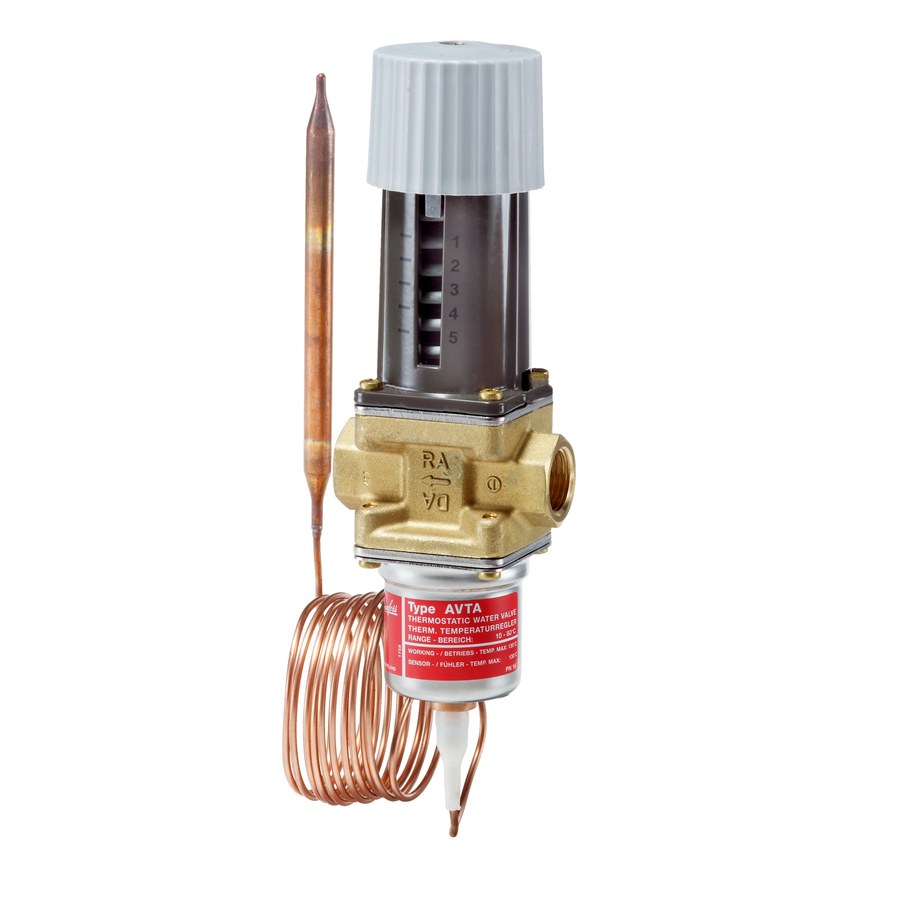

Danfoss AVTA 15 Thermostatic Water Valve NPT 1/2 in
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVTA 15 thermostatically-operated water valve, OEM P/N 003N6100. Regulates cooling-water flow from a temperature sensor; the valve opens on rising sensor temperature. Valve body supplied without sensor element (order the thermostatic element separately). Water connection 1/2 NPT (ANSI/ASME B1.20.1). Kv 1.9 m³/h. Body Brass. Max working pressure 16 bar (232 psig). Media Neutral media. OEM designation "". OEM P/N 003N6100. EAN 5702423006335. Technical data quoted verbatim from store.danfoss.com (code 003N6100).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N6100
- Model
- AVTA 15
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Thermostatically-operated water valve
- Nominal size
- AVTA 15 (DN 15)
- Opening configuration
- Opens on rising sensor temp.
- Water connection size
- 1/2 NPT
- Connection standard
- ANSI/ASME B1.20.1
- Kv value
- 1.9 m³/h (Cv 2.2 gal/min)
- Orifice size
- 15 mm (3/5 in)
- Max differential pressure
- 10 bar
- Max pressure on sensor
- 25 bar
- Max working pressure
- 16 bar (232 psig)
- Body material
- Brass
- Note
- valve body supplied without sensor element (order thermostatic element separately)
- Media
- Neutral media
- Medium temperature range
- -25 °C to 130 °C (-13 °F to 266 °F)
- Approvals
- PED, EAC, China RoHS, RoHS
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Packing
- Multi pack (10 pc)
- Volume
- 4.082 L
- Net weight
- 1.024 kg
- Gross weight
- 1.215 kg
- OEM description
- EAN: 5702423006335
- HS code
- 8481.80
- EAN
- 5702423006335
Standards & Compliance
- Size / Series
- AVTA 15
- Material
- Brass
- Thread Standard
- ANSI/ASME B1.20.1
- Pressure Rating
- 16 bar (232 psig) max working pressure
- Temperature Range
- -25 °C to 130 °C
- Classification / Approval
- PED, EAC, China RoHS, RoHS
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the cooling-water line with the flow arrow in the direction of flow; the sensor senses the medium temperature and the valve opens on rising temperature. Order the matching thermostatic sensor element separately. Match connection and temperature range to the application. Confirm code before ordering.
