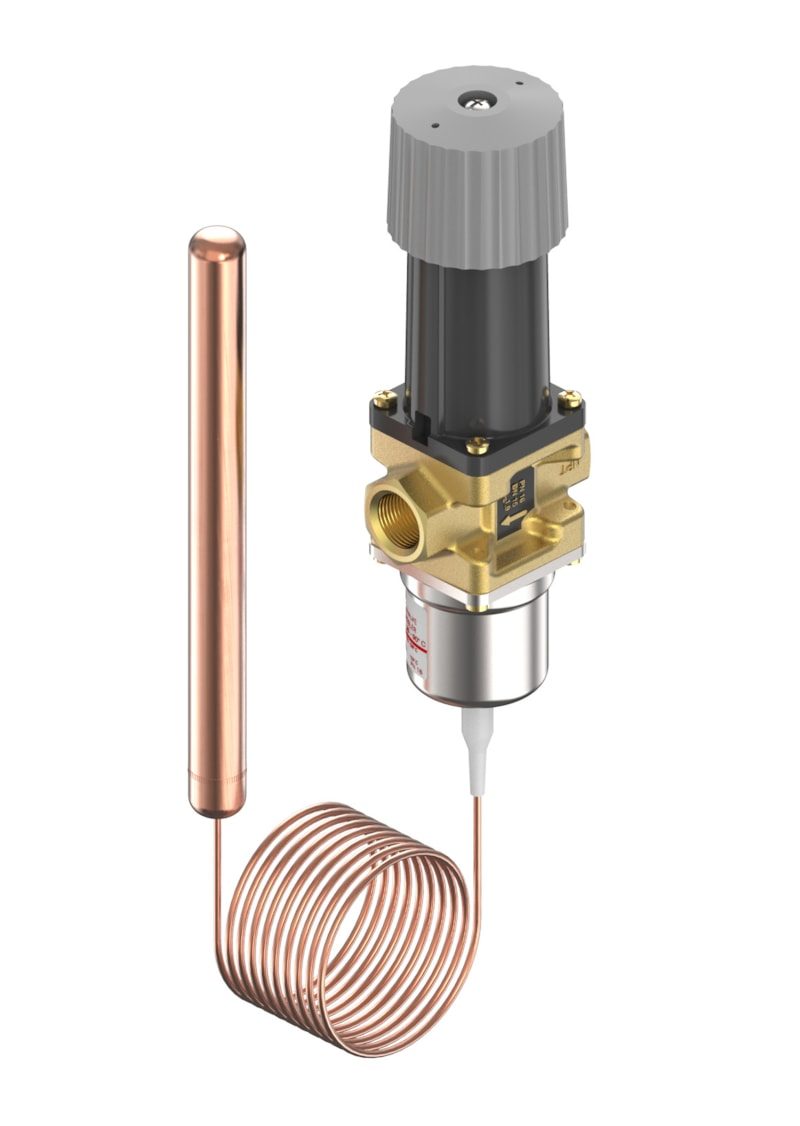

Danfoss AVTB Self-Acting Temperature Controller DN 20 50–90 °C NPT 3/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVTB self-acting thermostatic temperature controller, OEM P/N 003N7272. A proportional, self-acting (no external power) valve that throttles the flow to hold a set medium temperature: the liquid-charged sensor closes the valve on rising temperature. Valve size DN 20. Kvs 3.4 m³/h. Temperature setting range 50 °C – 90 °C. Connection NPT 3/4. PN 16. Body Brass CuZn40Pb2 W. no 2.0402. OEM designation "AVTB 20 Thermostatic valve 50-90#C". OEM P/N 003N7272. EAN 5715255156161. Technical data quoted verbatim from store.danfoss.com (code 003N7272).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N7272
- Model
- AVTB
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Self-acting thermostatic temperature controller
- Valve size
- DN 20
- Valve diameter
- 20 mm
- Temperature setting range
- 50 °C – 90 °C
- Kvs value
- 3.4 m³/h
- Connection size
- NPT 3/4
- Connection type
- Internal thread
- Sensor connection
- M22x1 / R3/4 ext thread acc. DIN 2999
- Temperature sensor length
- 210 mm
- Temperature sensor diameter
- 18 mm
- Capillary tube length
- 2 m
- Max differential pressure
- 10 bar
- Flow characteristic
- Linear
- Cone/seat sealing material
- NBR / Brass W. No 2.0402
- Valve body material
- Brass CuZn40Pb2 W. no 2.0402
- Valve seat material
- Cr Ni steel W.no 1.4301
- Temperature sensor material
- Copper mat. No 2.0090
- Approval standard
- ETA VA 1.54/18952
- Media
- District heating/cooling circulation water
- Medium temperature range
- 2 °C to 130 °C
- Body material
- Brass CuZn40Pb2 W. no 2.0402
- Approvals
- Approval standard ETA VA 1.54/18952
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Volume
- 4.082 L
- Net weight
- 1.641 kg
- Gross weight
- 1.727 kg
- OEM description
- AVTB 20 Thermostatic valve 50-90#C
- EAN
- 5715255156161
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- AVTB
- Material
- Brass CuZn40Pb2 W. no 2.0402
- Pressure Rating
- PN 16; max differential pressure 10 bar
- Temperature Range
- 2 °C to 130 °C (media); setting range 50 °C–90 °C
- Classification / Approval
- Approval standard ETA VA 1.54/18952
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the flow line with the sensor in the medium to be controlled; the AVTB closes on rising temperature. Match valve size (DN 20), Kvs (3.4 m³/h) and temperature setting range to the application before ordering. Self-acting — no external power or actuator required. Confirm code and range before ordering.
