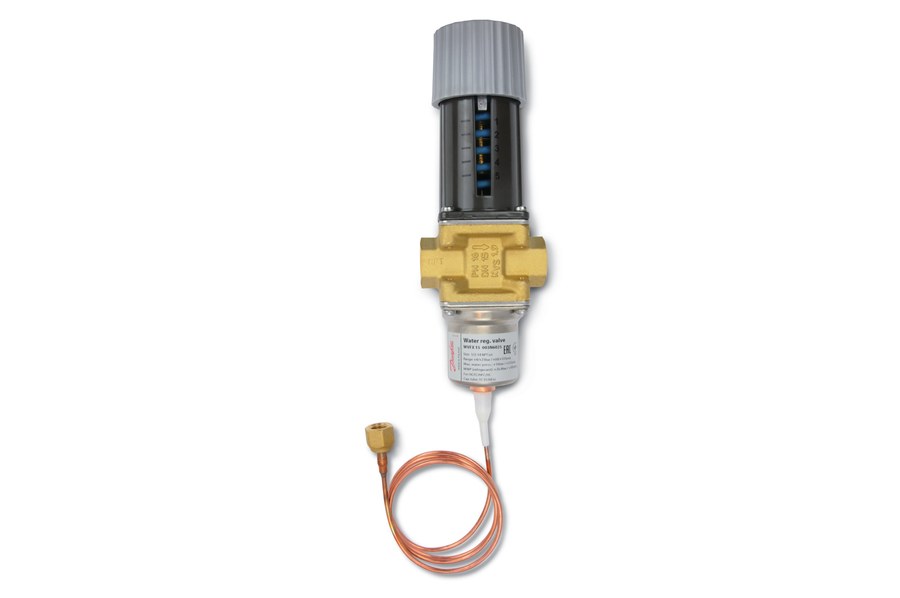

Danfoss WVFX 15 Water Regulating Valve NPT 1/2-14 in 4 – 23 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss WVFX 15 pressure-operated water regulating valve, OEM P/N 003N6006. Modulates condenser cooling-water flow to hold the condensing pressure constant and shuts the water off when the plant stops: the valve is opened by the condensing (refrigerant) pressure on a bellows and closed by an adjustable spring. Opens on rising cond. pressure. Control pressure range 4 bar – 23 bar. Water connection 1/2-14 in NPT (ANSI/ASME B1.20.1); refrigerant sensing 1/4 in - 6 mm SAE flare. Kv 1.9 m³/h. Body Brass. Max working pressure 16 bar (232 psig). Media Fresh water Neutral brine. OEM designation "". OEM P/N 003N6006. EAN 5702422147190. Technical data quoted verbatim from store.danfoss.com (code 003N6006).
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N6006
- Model
- WVFX 15
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Pressure-operated water regulating valve (condenser)
- Nominal size
- WVFX 15 (DN 15)
- Opening configuration
- Opens on rising cond. pressure
- Control pressure range
- 4 bar – 23 bar (60 psig – 333 psig)
- Water connection size
- 1/2-14 in NPT
- Connection standard
- ANSI/ASME B1.20.1
- Refrigerant sensing connection
- 1/4 in - 6 mm SAE flare
- Kv value
- 1.9 m³/h (Cv 2.2 gal/min)
- Orifice size
- 15 mm (3/5 in)
- Max differential pressure
- 10 bar
- Max working pressure
- 16 bar (232 psig)
- Max test pressure
- 24 bar
- Body material
- Brass
- Lubricants
- Oilfree applications
- Refrigerants (sensing side)
- R1234yf R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A
- Media
- Fresh water Neutral brine
- Medium temperature range
- -25 °C to 130 °C (-13 °F to 266 °F)
- Approvals
- UL, PED, EAC, China RoHS, RoHS
- REACH Candidate List substance
- Lead (CAS no. 7439-92-1)
- Packing
- Multi pack (10 pc)
- Volume
- 4.082 L
- Net weight
- 1.18 kg
- Gross weight
- 1.37 kg
- OEM description
- EAN: 5702422147190
- HS code
- 8481.80
- EAN
- 5702422147190
Standards & Compliance
- Size / Series
- WVFX 15
- Material
- Brass
- Thread Standard
- ANSI/ASME B1.20.1
- Pressure Rating
- 16 bar (232 psig) max working pressure
- Temperature Range
- -25 °C to 130 °C
- Classification / Approval
- UL, PED, EAC, China RoHS, RoHS
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the cooling-water line to the condenser with the flow arrow in the direction of flow; the refrigerant sensing connection goes to the condenser/receiver. Set the closing pressure to the required condensing pressure. Direct-acting (opens on rising pressure). Confirm code, water connection and control-pressure range against the datasheet before ordering.
