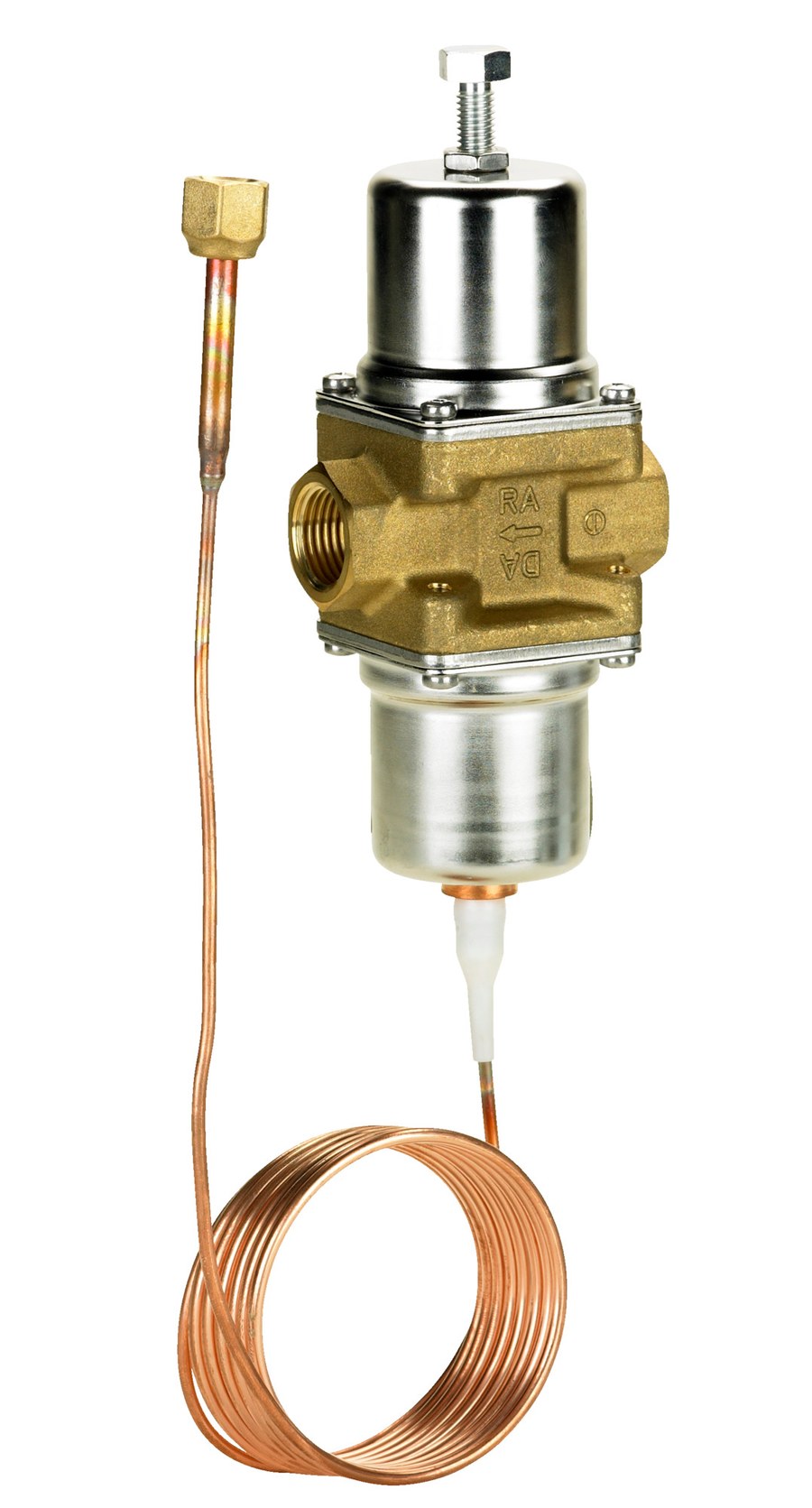

Danfoss WVO 10 Water Regulating Valve G 3/8 in 16 – 20 003N6212
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss WVO 10 pressure-operated water valve, OEM P/N 003N6212. Regulates the flow of cooling water to a water-cooled condenser from the condensing (refrigerant) pressure and shuts the water off when the plant stops. Opens on rising condensing pressure; narrow control-pressure band set on the adjustment spring. Brass body, ISO 228-1 water connection. Water connection G 3/8 in; refrigerant sensing connection 1/4 in / 6 mm SAE flare. Control pressure range 16 – 20 bar; Kv 1.4 m³/h. Body brass. Max working pressure 16 bar (232 psig). Media: Fresh water, neutral brine. Verify the setting range and refrigerant against the datasheet before ordering.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N6212
- Model
- WVO 10 pressure-operated water valve
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Version
- narrow control-range spring, G (ISO 228-1) water connection
- Function
- opens on rising condensing (refrigerant) pressure; narrow-band regulation of condensing pressure by throttling the condenser cooling water
- Nominal size
- WVO 10 (DN 10)
- Water-side connection
- G 3/8 in, ISO 228-1 (inlet and outlet)
- Refrigerant sensing connection
- 1/4 in / 6 mm SAE flare
- Control pressure range
- 16 – 20 bar
- Kv
- 1.4 m³/h
- Max working pressure (MWP)
- 16 bar (232 psig) water side
- Media temperature range
- -25 °C to 130 °C
- Orifice
- 10 mm
- Body material
- brass
- Media
- Fresh water, neutral brine
- Packing
- Single pack
- EAN
- 5702422170631
- Materials
- Valve housing hot-pressed brass; regulating seat and bellows stainless steel; adjustment spring steel
- Approvals
- UL Listed (C UL US), EAC, PED, EU RoHS, China RoHS
Standards & Compliance
- Size / Series
- WVO 10
- Material
- Valve housing hot-pressed brass; regulating seat and bellows stainless steel; adjustment spring steel
- Thread Standard
- ISO 228-1
- Pressure Rating
- 16 bar (232 psig) water side max working pressure
- Temperature Range
- -25 °C to 130 °C
- Classification / Approval
- UL Listed (C UL US), EAC, PED, EU + China RoHS
- HS Code
- 8481.80
Compatibility & Fitment
Fit in the cooling-water line to the condenser with the flow arrow in the direction of flow; the refrigerant sensing flare connects to the condenser/receiver. Set the closing pressure on the adjustment spring to the required condensing pressure. Direct-acting (opens on rising pressure). Confirm code, water connection and setting range before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss WVO 20 Water Regulating Valve G 3/4 in 6 – 10
003N6215
Danfoss
Danfoss WVO 10 Water Regulating Valve G 3/8 in 16 – 22
003N6220
Danfoss
Danfoss WVO 20 Water Regulating Valve G 3/4 in 16 – 20
003N6232
Danfoss
Danfoss WVO 10 Water Regulating Valve NPT 3/8-18 in 14 – 18
003N8026
Danfoss
Danfoss WVFX 25 Water Regulating Valve NPT 1-11.5 in 4 – 23
003N8025
Danfoss
Danfoss FJVA 15 Thermostatically Operated Water Valve G 1/2
003N8210
Danfoss
Danfoss FJVA 20 Thermostatically Operated Water Valve G 3/4
003N8215
Danfoss

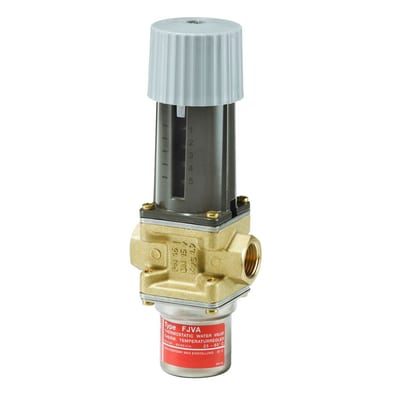

Danfoss FJVA 25 Thermostatically Operated Water Valve G 1
