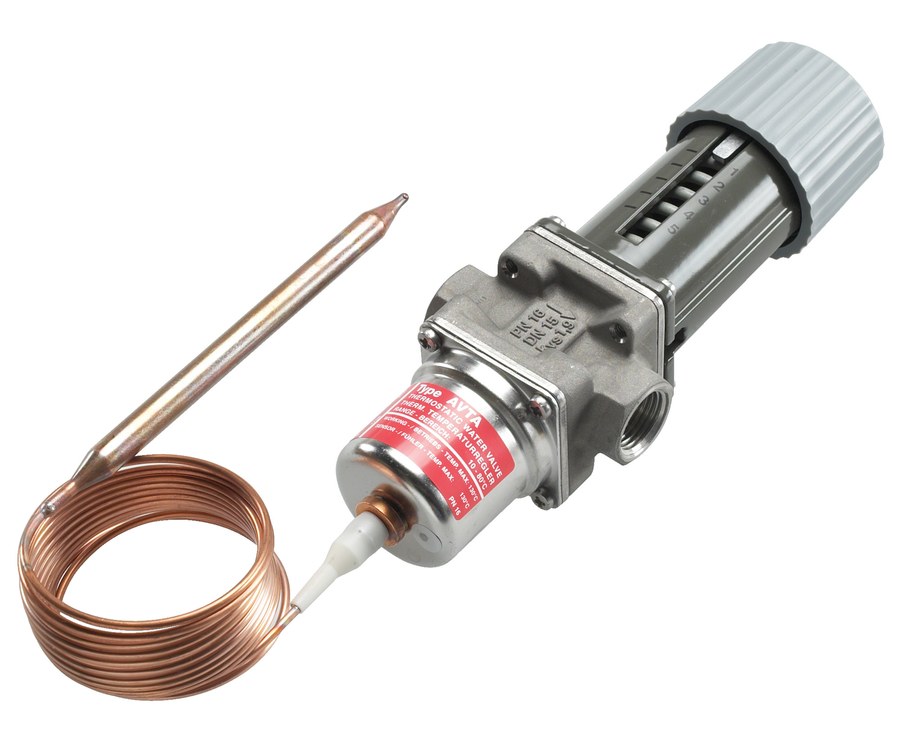

Danfoss Thermostatic Water Valve AVTA 25 — G 1, Adsorption Charge 10–80 °C
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AVTA 25 thermostatically operated water valve, genuine OEM code 003N4150. Self-acting proportional temperature-regulating valve for cooling-water and heating circuits: it opens on rising sensor temperature and needs no external power supply, compressed air or electricity. Adsorption charge with a regulating range of 10–80 °C. Connection G 1 (ISO 228-1); kv 5.5 m³/h; stainless steel valve body. Pressure-relieved design — the degree of opening is not affected by differential pressure. Supplied complete with capillary tube gland and hermetically sealed thermostatic element (sensor 9.5 x 150 mm, capillary 2300 mm). Adsorption charge — sensor can be installed in any position; regulating point independent of sensor orientation. EAN 5702423104772.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N4150
- Type
- AVTA 25 — thermostatically operated (self-acting) water regulating valve
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Function
- Opens on rising sensor temperature (proportional flow regulation)
- Charge type
- Adsorption
- Regulating range
- 10–80 °C
- kv value
- 5.5 m³/h
- Valve size / orifice
- DN25 / 25 mm
- Connection
- G 1 (ISO 228-1)
- Body material
- Stainless steel (AVTA SS — for aggressive media, marine and chemical duty)
- Seat / cone material
- EPDM (ethylene-propylene rubber)
- Sensor
- 9.5 x 150 mm (stainless steel)
- Capillary tube length
- 2300 mm
- Max. working pressure (MWP)
- 16 bar (232 psi)
- Max. test pressure
- 25 bar (365 psi)
- Max. pressure on sensor
- 25 bar (365 psi)
- Medium temperature range
- -25 to 130 °C (-13 to 266 °F)
- Media
- fresh water or neutral brine (ethylene glycol up to 40%)
- Net weight
- 1.24 kg
- EAN
- 5702423104772
- HS code
- 8481.80 (thermostatically controlled valves)
Standards & Compliance
- Size / Series
- G 1
- Material
- Stainless steel
- Thread Standard
- G 1
- Pressure Rating
- 16 bar (232 psi) max working pressure
- Temperature Range
- Regulating range 10–80 °C; medium -25 to 130 °C
- HS Code
- 8481.80
Compatibility & Fitment
Self-acting valve — no power supply required. Select charge type (Adsorption) and regulating range (10–80 °C) to suit the temperature to be maintained; aim to keep the required sensor temperature near the middle of the range. Install an FV strainer ahead of the valve; route the capillary without kinks.
Product Documentation
More from Danfoss
Danfoss
Danfoss Thermostatic Water Valve AVTA 15 — NPT 1/2-14, Universal Charge 0–30 °C
003N6132
Danfoss
Danfoss Thermostatic Water Valve AVTA 15 — NPT 1/2-14, Universal Charge 50–90 °C
003N6182
Danfoss
Danfoss Thermostatic Water Valve AVTA 20 — NPT 3/4-14, Universal Charge 50–90 °C
003N7182
Danfoss
Danfoss Thermostatic Water Valve AVTA 25 — NPT 1, Universal Charge 50–90 °C
003N8182
Danfoss
Danfoss Thermostatic Water Valve AVTA 15 — G 1/2, Mass Charge 0–30 °C
003N0042
Danfoss
Danfoss Thermostatic Water Valve AVTA 25 — G 1, Mass Charge 25–65 °C
003N0047
Danfoss
Danfoss Thermostatic Element for AVTA / AVTB — Universal Charge 0–30 °C — Spare Part
003N0075
Danfoss

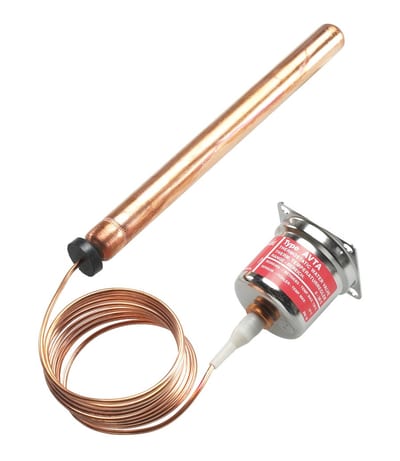

Danfoss Thermostatic Element for AVTA / AVTB — Adsorption Charge 30–100 °C — Spare Part
