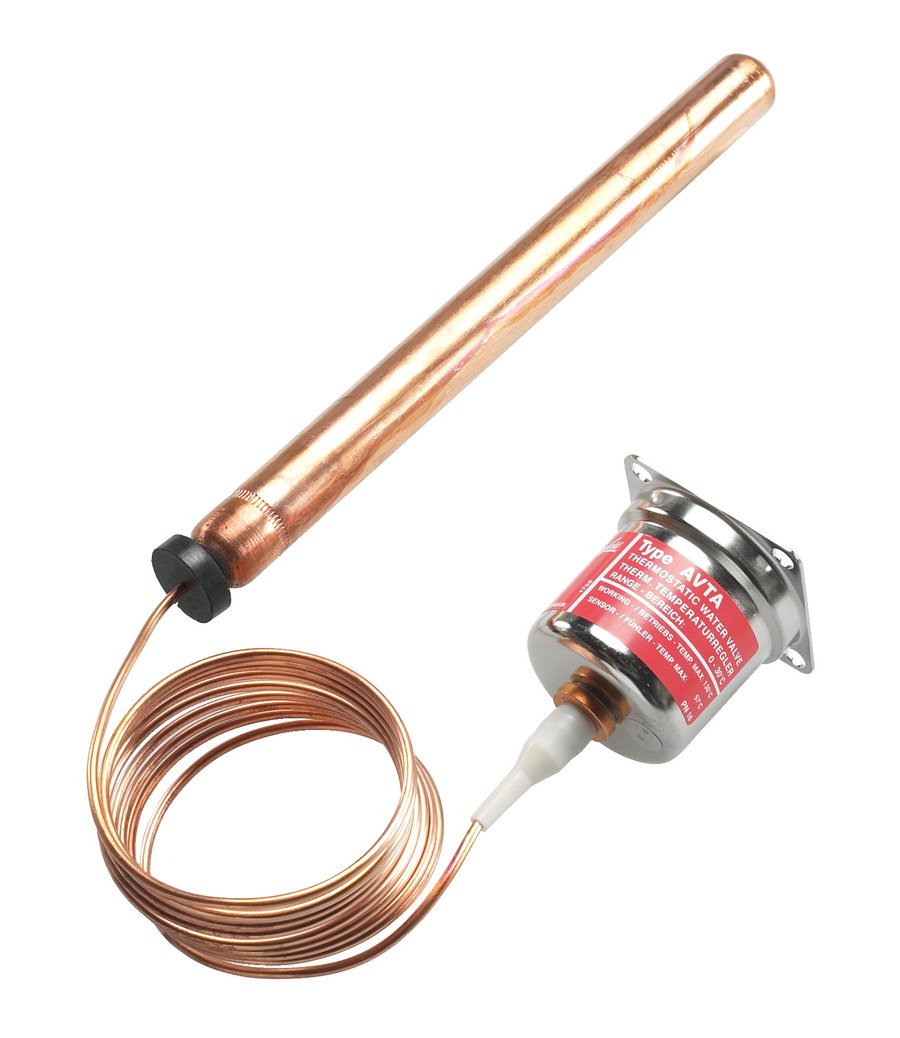

Danfoss Thermostatic Element for AVTA / AVTB — Adsorption Charge 30–100 °C — Spare Part
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss genuine spare part, OEM code 003N0278. Hermetically sealed thermostatic element (sensor, bellows and charge) for AVTA and AVTB thermostatically operated water valves. Adsorption charge, regulating range 30–100 °C, sensor 9.5 x 150 mm, capillary tube 2300 mm. Replaces the element on an installed AVTA/AVTB valve without changing the valve body or setting section. Adsorption charge — sensor can be installed in any position; regulating point independent of sensor orientation. EAN 5702423007219.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0278
- Type
- Genuine spare part — Thermostatic element
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Fits valve(s)
- AVTA, AVTB
- Charge type
- Adsorption
- Regulating range
- 30–100 °C
- Sensor
- 9.5 x 150 mm
- Capillary tube length
- 2300 mm
- Max. pressure on sensor
- 25 bar (365 psi)
- Net weight
- 0.245 kg
- EAN
- 5702423007219
- HS code
- 8481.90 (valve parts)
- Compatible with
- AVTA / AVTB — Adsorption Charge 30–100 °C
- Product group
- Water valves spare parts
- Cap. tube length fraction [in]
- 90 9/16 in
- Capillary tube length [mm]
- 2300 mm
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 130 °C
- Max. sensor temperature [°F]
- 266 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor size (Ø x L) [in]
- 3/8 x 5 29/32 in
- Sensor size (Ø x L) [mm]
- 9.5 x 150 mm
- Temp. range AVTA/FJVA [°C] [max]
- 80 °C
- Temp. range AVTA/FJVA [°C] [min]
- 10 °C
- Temp. range AVTA/FJVA [°F] [max]
- 176 °F
- Temp. range AVTA/FJVA [°F] [min]
- 50 °F
- Temp. range AVTB/FJV [°C] [max]
- 100 °C
- Temp. range AVTB/FJV [°C] [min]
- 30 °C
- Temp. range AVTB/FJV [°F] [max]
- 212 °F
- Temp. range AVTB/FJV [°F] [min]
- 86 °F
- Type designation
- Thermostatic element
- Used for product
- AVTA
Standards & Compliance
- Size / Series
- AVTA, AVTB
- Temperature Range
- Regulating range 30–100 °C
- HS Code
- 8481.90
Compatibility & Fitment
Confirm the required charge type (Adsorption) and regulating range (30–100 °C) before ordering — the element determines the valve's temperature range. Install per the AVTA/AVTB service instructions.
