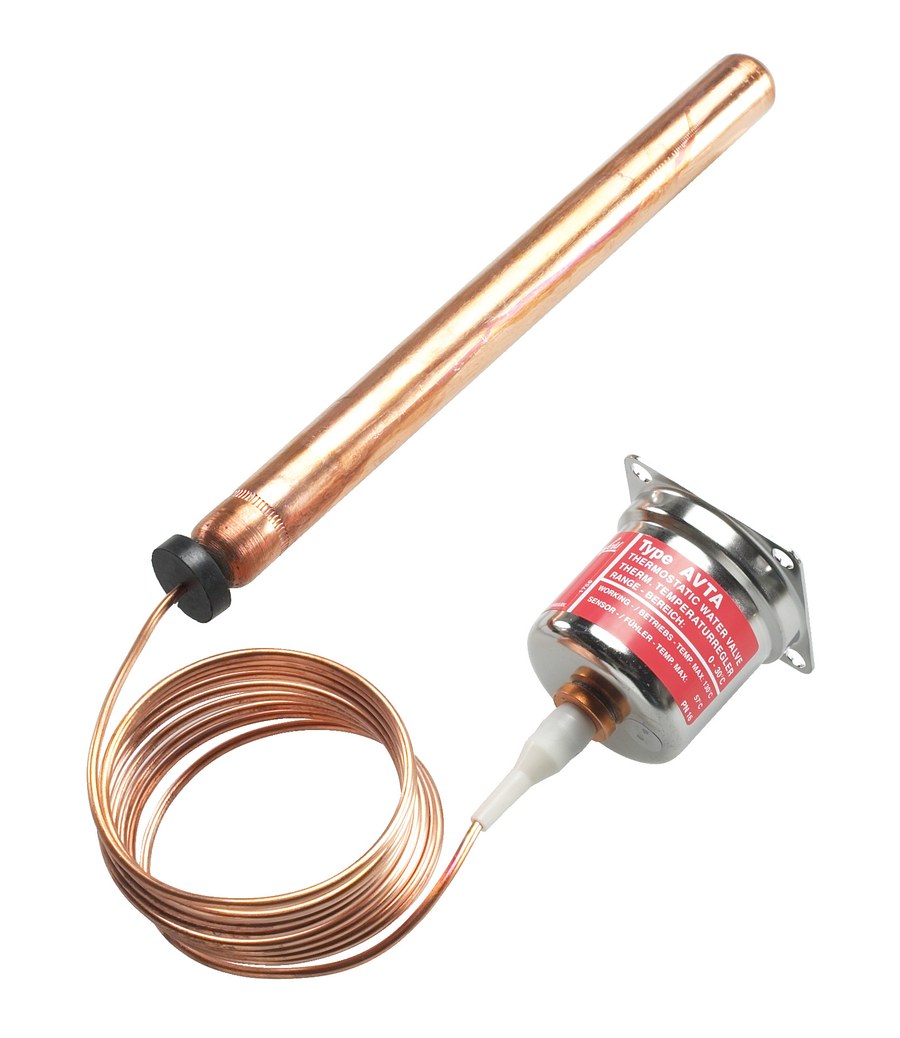

Danfoss Thermostatic Element for AVTA / AVTB — Universal Charge 0–30 °C — Spare Part
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss genuine spare part, OEM code 003N0075. Hermetically sealed thermostatic element (sensor, bellows and charge) for AVTA and AVTB thermostatically operated water valves. Universal charge, regulating range 0–30 °C, sensor 18 x 210 mm, capillary tube 2000 mm. Replaces the element on an installed AVTA/AVTB valve without changing the valve body or setting section. Universal charge — the liquid regulating point remains inside the sensor; sensor may be warmer or colder than the valve. EAN 5702423002498.
Technical Specifications
- Brand
- Danfoss
- Part number
- 003N0075
- Type
- Genuine spare part — Thermostatic element
- Category
- HVAC & Refrigeration — Water Regulating Valves
- Fits valve(s)
- AVTA, AVTB
- Charge type
- Universal
- Regulating range
- 0–30 °C
- Sensor
- 18 x 210 mm
- Capillary tube length
- 2000 mm
- Max. pressure on sensor
- 25 bar (365 psi)
- Net weight
- 0.298 kg
- EAN
- 5702423002498
- HS code
- 8481.90 (valve parts)
- Compatible with
- AVTA / AVTB — Universal Charge 0–30 °C
- Product group
- Water valves spare parts
- Cap. tube length fraction [in]
- 78 3/4 in
- Capillary tube length [mm]
- 2000 mm
- China RoHS compliance
- Yes
- EU RoHS compliance
- Out of scope
- Max. sensor temperature [°C]
- 57 °C
- Max. sensor temperature [°F]
- 134.6 °F
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor size (Ø x L) [in]
- 23/32 x 8 1/4 in
- Sensor size (Ø x L) [mm]
- 18 x 210 mm
- Temp. range AVTA/FJVA [°C] [max]
- 30 °C
- Temp. range AVTA/FJVA [°C] [min]
- 0 °C
- Temp. range AVTA/FJVA [°F] [max]
- 86 °F
- Temp. range AVTA/FJVA [°F] [min]
- 32 °F
- Temp. range AVTB/FJV [°C] [max]
- 30 °C
- Temp. range AVTB/FJV [°C] [min]
- 0 °C
- Temp. range AVTB/FJV [°F] [max]
- 86 °F
- Temp. range AVTB/FJV [°F] [min]
- 32 °F
- Type designation
- Thermostatic element
- Used for product
- AVTA
Standards & Compliance
- Size / Series
- AVTA, AVTB
- Temperature Range
- Regulating range 0–30 °C
- HS Code
- 8481.90
Compatibility & Fitment
Confirm the required charge type (Universal) and regulating range (0–30 °C) before ordering — the element determines the valve's temperature range. Install per the AVTA/AVTB service instructions.
