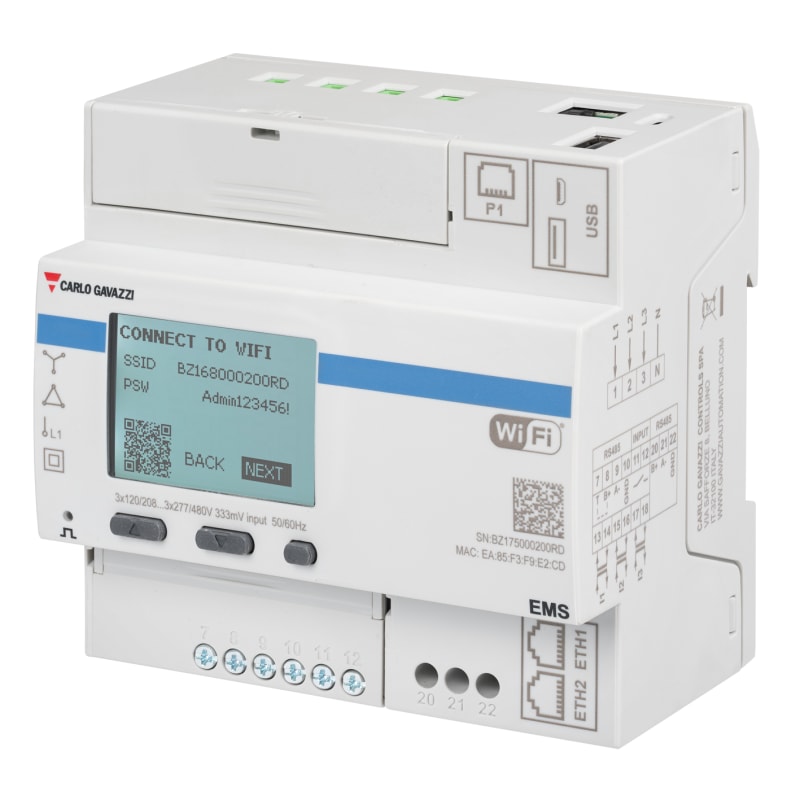

Energilogger with webserver 3-Phase 333MV (EMS10MV5S1X)

Carlo Gavazzi EMS10MV5S1X Manufacturer description: Three-phase all-in-one IoT meter, 120-277 V L-N, 208-480 V L-L, current sensor 333 mV, self power supply, with RS485 Modbus master port, RS485 Modbus slave port, Digital input. Energy meter (333mV) with logging, web-server and Gateway. Can connects up to 23 pcs 3-phase mustlinger.

Manufacturer part number (MPN)

EMS10MV5S1X

EAN / GTIN

8054155008987

Sales unit

pcs

Frequency

50Hz; 60Hz

Current inputs

333 mV current sensors

Energy metering

Consumption and generation

Static output

Alarm; Remote control

Communication port and protocol

Ethernet (Modbus TCP/IP); BACnet IP

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); cULus (North America)

E-number (NO)

8200753

E-number (SE)

0981033

Mounting method

DRA (DIN-rail adaptor)

Width

90 mm

Model

Measurement transformer

Height

90 mm

Depth

44 mm

Suitable for

Purchase/supply

Type of indication

Digital

Power consumption

10 W

Width in number of modular spacings

5

Number of positions total (counter)

11

Type of meter

Electronic

Degree of protection (IP)

IP40

Type of interface

Modbus

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

Internal/external

Escapement mechanism

Yes

Calibrated

Yes

Approval

Domestic

Pulse output

Optical

Accuracy class

B

Pole type

Three conductor/four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

Yes

Nominal voltage (Un) N-L

120–277 V

Nominal voltage (Un) L-L

208–480 V

Country of origin

Italy

HS Code

9028.30

• EAN 8054155008987
• SAP 1200966332
• Code 84275733
