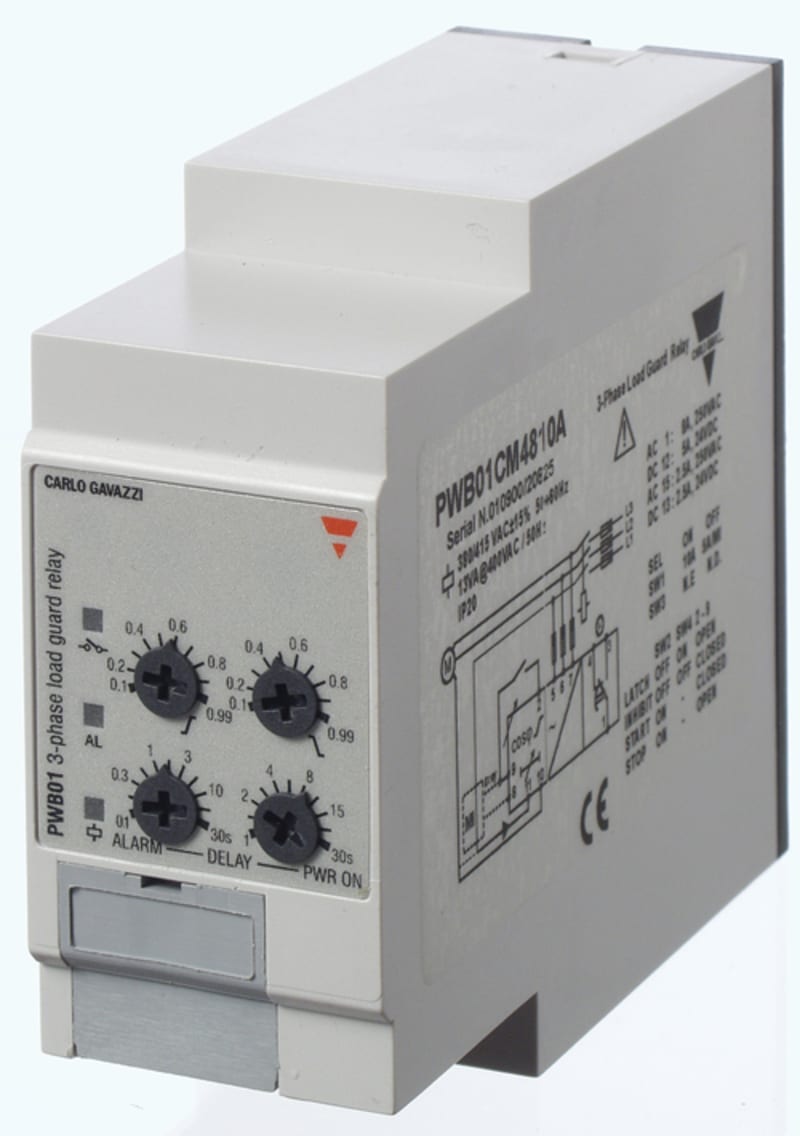

Motor Load Monitor cos. phi 380-480V (PWB01CM4810A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PWB01CM4810A Manufacturer description: 3-phase power factor monitoring relay, measuring range up to 5A, 10A or with MI current transformers, 1 SPDT relay output, 36 mm plug-in housing. PWB01CM4810A Belastningsrelé.
Technical Specifications
- Manufacturer part number (MPN)
- PWB01CM4810A
- EAN / GTIN
- 8030956005134
- Sales unit
- pcs
- Mains voltage
- 380-480 V AC
- Mounting
- Plug-in
- Power function
- Power factor
- 3-phase voltage range
- 380-480 Vac
- Time delay
- Delay on alarm
- Output
- 1 x SPDT change-over contact
- Max. permitted delay-on energization time
- 30 s
- Type of electric connection
- Plug-in connection
- With approval according to UL
- Yes
- E-number (NO)
- 4134876
- Rated control supply voltage AC 50 Hz
- 380–415 V
- Rated control supply voltage AC 60 Hz
- 380–415 V
- Voltage type for actuating
- AC
- Rated voltage
- 380–415 V
- Measurement current
- 0.5–10 A
- Number of phases
- 3
- Min. adjustable delay-on energization time
- 0.1 s
- Min. adjustable off-delay time
- 0.1 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- Width
- 36 mm
- Height
- 80 mm
- Depth
- 94 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956005134
- SAP 1000140512
- Code 8645080
Product Documentation
