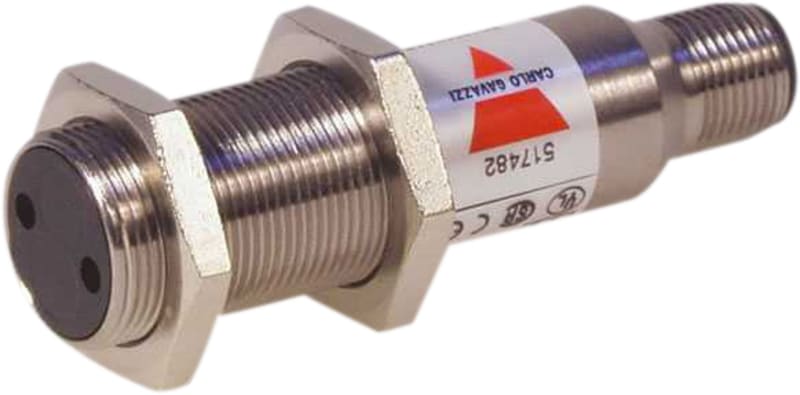

Photocell MOTT. M18 PNP PLUG
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ET1820PPAS-1 Manufacturer description: Through-beam Photoelectric Receiver, Range: 0-20000mm, Adjustable Sensitivity, infrared light 880nm, Power Supply : 10to40 VDC, N.O. and N.C., light and dark switching, M12 connection, M18 housing. ET1820PPAS-1 Photocells with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- ET1820PPAS-1
- EAN / GTIN
- 5709870077017
- Sales unit
- pcs
- Output type
- PNP
- Output function
- Complementary (NO+NC)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing Material
- Metal
- Type of light
- Infrared light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67
- Rated Operational voltage UB at DC
- 10 V ... 40 V
- E-number (NO)
- 4351342
- Scope of delivery of the one-way system
- Receiver
- Rated switching distance
- 20000 mm
- Max. switching distance
- 20000 mm
- Max. output current
- 200 mA
- Setting procedure
- Manual adjustment
- Number of protected contact energized outputs
- 2
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Anticoincidence
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 200 mA
- Min. reflector distance
- 0 mm
- Response time
- 1.6 ms
- Switching frequency
- 170 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- DC
- Laser protection class
- None
- Wavelength of the sensor
- 880 nm
- AWG-number
- 23
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870077017
- SAP 1200454354
- Code 82529163
Product Documentation
