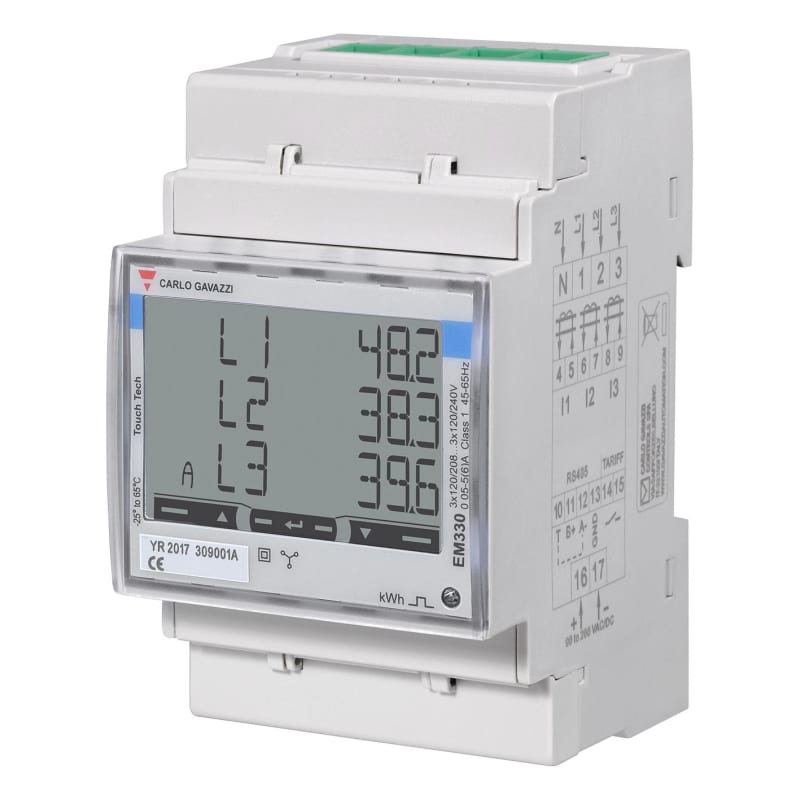

Meter 1-/3 Phase Pulse Output MID
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM330DINAV53HO1PFA Manufacturer description: Three-phase Energy analyzer, V L-N400 to 480 V L-L, 5 (6) A, Pulse output. Energy meter EM330DINAV53HO1PFA.
Technical Specifications
- Manufacturer part number (MPN)
- EM330DINAV53HO1PFA
- EAN / GTIN
- 8030956069853
- Sales unit
- pcs
- Voltage inputs
- 3-phase (4-wire), 230/400 V; 3-phase ( 4-wire), 240/415 V; 3-phase (4-wire), 277/480 V; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L; 3-phase (3-wire), 480 V L-L
- Frequency
- 50Hz
- Energy metering
- Consumption
- Static output
- Pulse
- Power supply
- Auxiliary power supply 220-240 Vac
- Approvals, marks, declarations
- CE (Europe); MID (Europe, fiscal metering); UKCA (UK)
- E-number (NO)
- 8200708
- E-number (SE)
- 0933001
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Measurement transformer
- Suitable for
- Purchase
- Type of indication
- Digital
- Max. current (Imax)
- 6 A
- Width in number of modular spacings
- 3
- Number of positions total (counter)
- 8
- Type of meter
- Electronic
- Degree of protection (IP)
- IP51
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Measuring Instruments Directive
- Pulse output
- Electrical
- Pulse type
- S0
- Pulse rate
- 100–1500 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 230–277 V
- Nominal voltage (Un) L-L
- 400–480 V
- Nominal current (In)
- 5 A
- Country of origin
- China
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956069853
- SAP 1200454063
- Code 82514897
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Room sensor, passive PT1000 element, black (5470073)
Carlo Gavazzi
Time Relay Off-delay (PBB02CM24)
Carlo Gavazzi
Current Transformer 300/5A (CTD3X3005AXXX)
Carlo Gavazzi
Safety Relay SMS31
Carlo Gavazzi

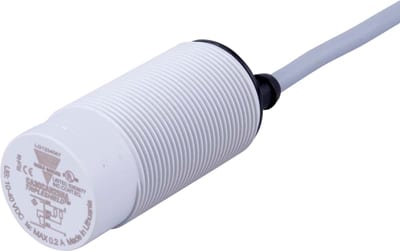

Capacitive transmitter M30,sn 25mm, PNP, NO/NC
CA30CAN25PA
Carlo Gavazzi

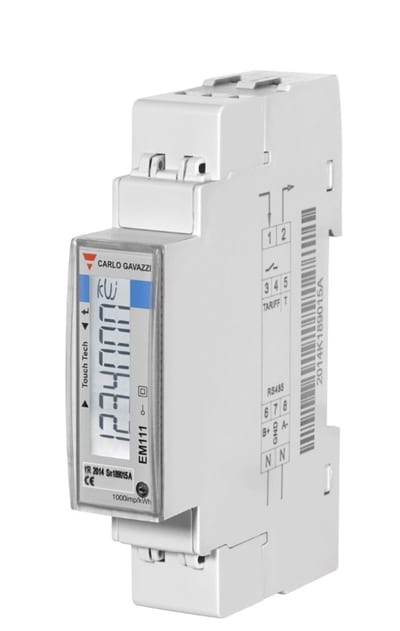

Meter 1-Phase 230V 32A Mbus (EM111DINAV81XM1X)
