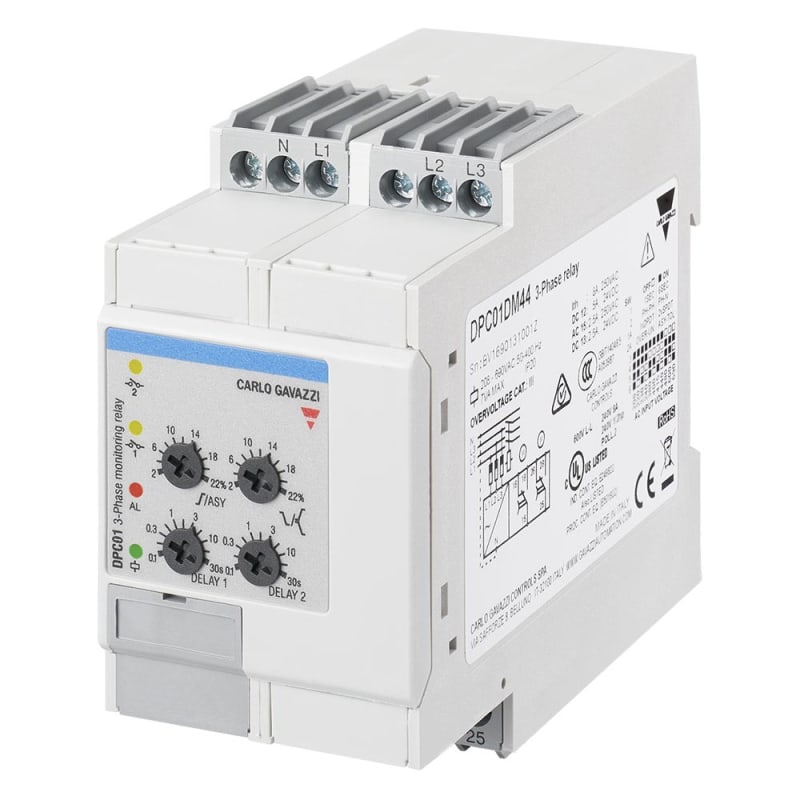

3-Phase supply monitoring relay 208-690 VAC

Mains monitoring relay 3-phase+N-conductor. Manufacturer description: 3-phase monitoring relay for phase loss, sequence, asymmetry, tolerance, over and undervoltage, nominal range 208-690 V AC, delay on alarm 0.1-30 s, 2 SPDT relay outputs, 45 mm DIN-rail housing. 208–690 V AC. Monitors asymmetry, over-/undervoltage, phase loss and phase sequence.

Manufacturer part number (MPN)

DPC01DM44

EAN / GTIN

8030956085433

Sales unit

pcs

Package quantity

5 pcs

Mounting

Industrial DIN-rail

Function

Phase loss; Phase sequence; Overvoltage; Undervoltage; Voltage asymmetry

3-phase voltage range

208-240 Vac; 208-480 Vac; 208-690 Vac; 380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

2 relays

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America; for China; for Australia

Setting method through NFC

No

E-number (NO)

4300783

External power supply required

No

Rated switch current

2 A

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

With detachable clamps

No

Phase sequence monitoring

Yes

Phase failure detection

Yes

Function under voltage detection

Yes

Function overvoltage detection

Yes

Phase imbalance monitoring

Yes

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

30 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

2

Width

45 mm

Height

73 mm

Depth

99 mm

Country of origin

Italy

HS Code

9032.89
