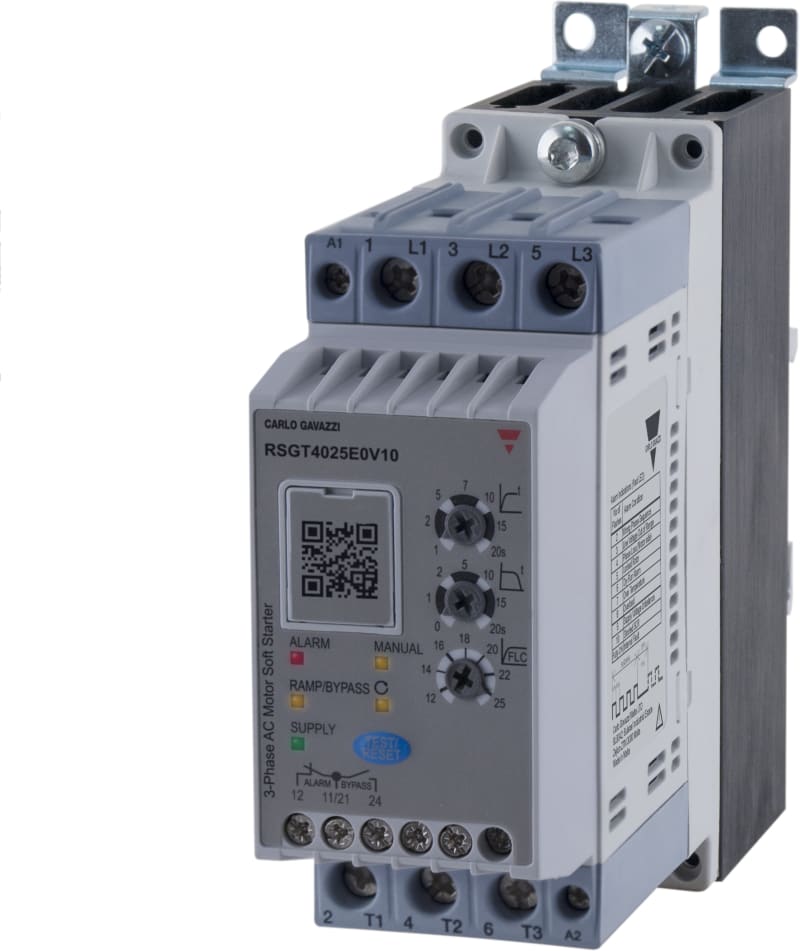

3-Phase Soft Starter 25A 230-400V (RSGT4025E0V10)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RSGT4025E0V10 Manufacturer description: 3 phase soft starter for induction motors, Operating voltage (Ue): 220 - 400 Vac, Rated current (Ie): 25 Aac, Control voltage (Uc): 110 - 400 Vac/dc, DIN rail/Panel mount, Supply voltage (Us): Internal, 3-phase control, Class 10 overload. Soft starter for general drift RSGT4025E0V10.
Technical Specifications
- Manufacturer part number (MPN)
- RSGT4025E0V10
- EAN / GTIN
- 5350035435120
- Sales unit
- pcs
- Rated operation current Ie at 40C Tu
- 25 A
- Rated operating voltage Ue
- 187 V ... 440 V
- Rated power three-phase motor, inline, at 230 V
- 5.5 kW
- Rated power three-phase motor, inline, at 400 V
- 11 kW
- Rated control supply voltage Us at AC 50HZ
- 93.5 V ... 440 V
- Rated control supply voltage Us at DC
- 0 V ... 0 V
- Internal bypass
- Yes
- Product Width
- 45 mm
- Product Height
- 125 mm
- Product Depth
- 150 mm
- E-number (NO)
- 4100893
- E-number (SE)
- 3304436
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Release class
- CLASS 10
- Rated surrounding temperature without derating
- 40 °C
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5350035435120
- SAP 1200590005
- Code 82961669
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Auxiliary Relay 4 changeover 12VDC
RMIA4512VDC
Carlo Gavazzi
Power Supply 15W 15VDC 1A
SPMA15151
Carlo Gavazzi
Level Probe Conductive Isolated 3 Electrodes (VTI3)
Carlo Gavazzi

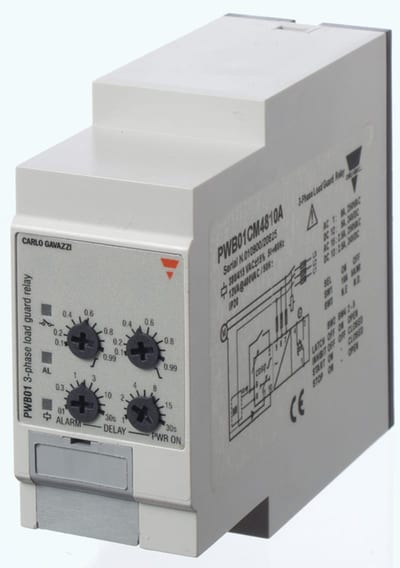

Motor Load Monitor cos. phi 380-480V (PWB01CM4810A)
Carlo Gavazzi

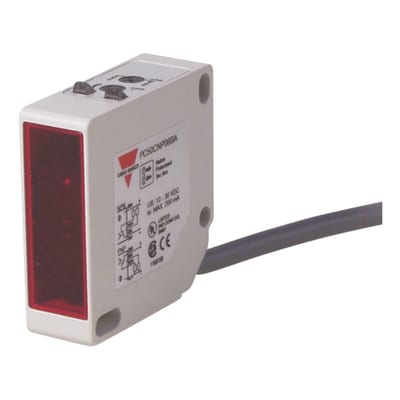

FOTO.MOT.Flat,DC,NO+NC,CAB (PC50CNR10BA)
Carlo Gavazzi
3-Phase supply monitoring relay 208-690 VAC
DPC01DM44
Carlo Gavazzi
3-Phase nettvakt multifunction 600/690V
DPC01DM69
Carlo Gavazzi

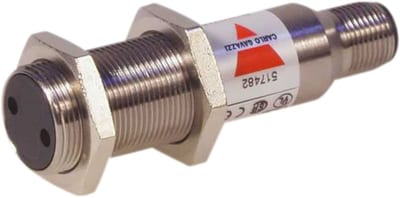

Photocell MOTT. M18 PNP PLUG
