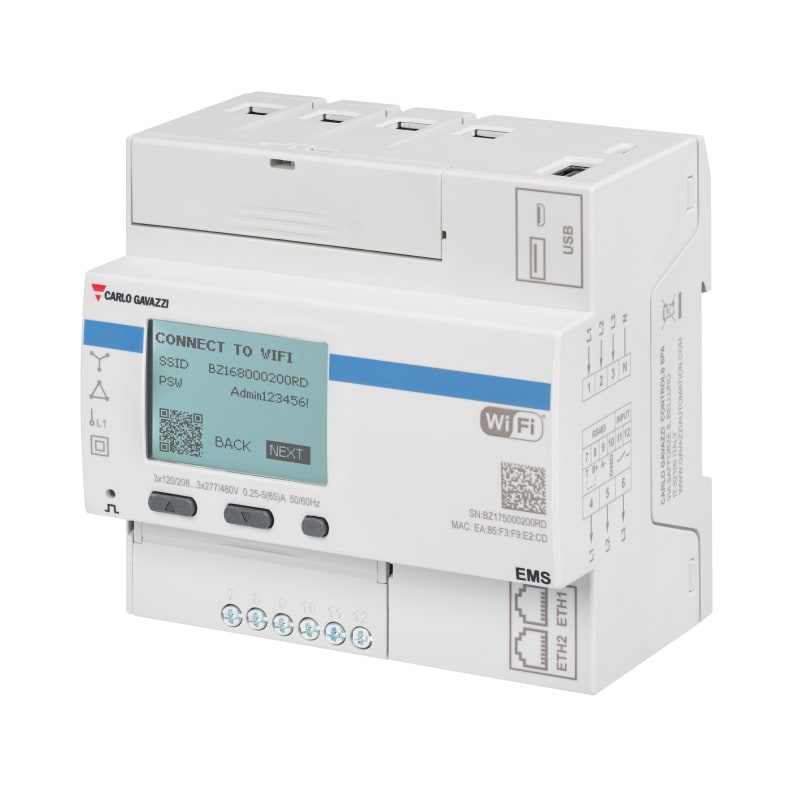

Energilogger with webserver 3-Phase (65A) (EMS10AV2S1X)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EMS10AV2S1X Manufacturer description: Three-phase all-in-one IoT meter, 120-277 V L-N, 208-480 V L-L, direct connection up to 65 A, self power supply, with RS485 Modbus slave port, Digital input. Energy meter 65A with logging, web-server and Gateway. Can connects up to 23 pcs 3-phase mustlinger.
Technical Specifications
- Manufacturer part number (MPN)
- EMS10AV2S1X
- EAN / GTIN
- 8054155008963
- Sales unit
- pcs
- Frequency
- 50Hz; 60Hz
- Current inputs
- direct connection up to 65 A
- Energy metering
- Consumption and generation
- Static output
- Alarm; Remote control
- Communication port and protocol
- Ethernet (Modbus TCP/IP); BACnet IP
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America)
- E-number (NO)
- 8200751
- E-number (SE)
- 0981000
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 90 mm
- Model
- Direct measurement
- Height
- 90 mm
- Depth
- 44 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 10 W
- Max. current (Imax)
- 65 A
- Width in number of modular spacings
- 5
- Number of positions total (counter)
- 11
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Type of interface
- RS-485
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- Internal/external
- Escapement mechanism
- Yes
- Calibrated
- Yes
- Approval
- Domestic
- Pulse output
- Optical
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 120–277 V
- Nominal voltage (Un) L-L
- 208–480 V
- Nominal current (In)
- 5 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8054155008963
- SAP 1200966330
- Code 84275709
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Double 3-phase meter RS485 (EM27072DMV53X2SX)
Carlo Gavazzi
3 X ROG CURRENTTRANSFORM. 600mm
ROG4X1002M6003X
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30L50F22POM1)
Carlo Gavazzi
Meter 3-Phase (5A) MBUS MID (EM530DINAV53XM1PFA)
Carlo Gavazzi
Meter 3-Phase (5A) Pulse Output
EM530DINAV53XO1X
Carlo Gavazzi
Carlo Gavazzi EM511 Single-Phase 45 A Energy Analyzer M-Bus EM511DINAV81XM1X
Carlo Gavazzi
Split-core Current Transformer (CTV6X400A333MV)
Carlo Gavazzi
FOTO.REFL M18,PNP,NO+NC,Plug (ER1830PPAS-1)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy EMS10AV2S1X?
- EMS10AV2S1X can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is EMS10AV2S1X.
- What is the HS code for EMS10AV2S1X?
- The customs tariff (HS) code for EMS10AV2S1X is 9028.30.
- Who manufactures EMS10AV2S1X?
- EMS10AV2S1X is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for EMS10AV2S1X?
- Yes — the EMS10AV2S1X datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for EMS10AV2S1X?
- The minimum order quantity is 1.
- Is EMS10AV2S1X available?
- Yes — EMS10AV2S1X is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
