Meter 3-Phase (5A) Pulse Output
Pricing
Request a quote
We reply within 24 hours
Product Description

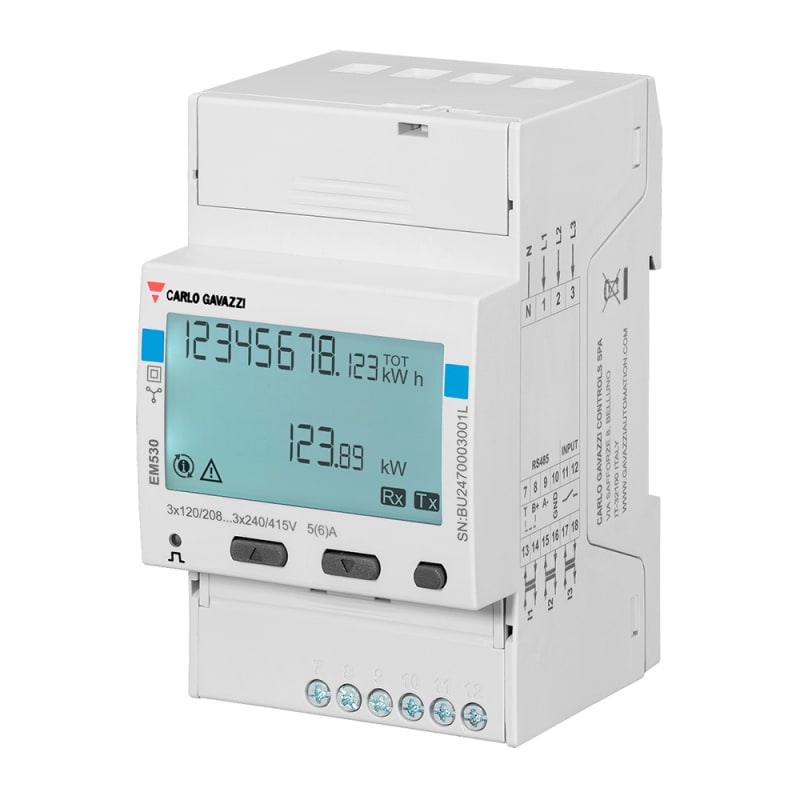

Carlo Gavazzi EM530DINAV53XO1X Manufacturer description: Three-phase MID Energy analyzer, 120 to 240 V L-N, 208 to 415 V L-L, 5 (6) A, Static Output. METER 3-PHASE (5A) PULSUTG.
Technical Specifications
- Manufacturer part number (MPN)
- EM530DINAV53XO1X
- EAN / GTIN
- 8030956089271
- Sales unit
- pcs
- Frequency
- 50Hz; 60Hz
- Current inputs
- 5 A current transformers
- Energy metering
- Consumption and generation
- Static output
- Alarm; Pulse; Remote control
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America); UKCA (UK)
- E-number (NO)
- 8201140
- E-number (SE)
- 0953000
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 54 mm
- Model
- Measurement transformer
- Height
- 90 mm
- Depth
- 63 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 1.3 W
- Max. current (Imax)
- 6 A
- Width in number of modular spacings
- 3
- Number of positions total (counter)
- 11
- Type of meter
- Electronic
- Degree of protection (IP)
- IP40
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Escapement mechanism
- No
- Calibrated
- Yes
- Approval
- Domestic
- Pulse output
- Optical
- Pulse type
- S0
- Pulse rate
- 0.001–10 Imp/kWh (kvarh)
- Accuracy class
- B
- Pole type
- Three conductor/four conductor
- Measurement type load profile
- No
- EEC40 signature
- No
- With lock code
- Yes
- Nominal voltage (Un) N-L
- 120–240 V
- Nominal voltage (Un) L-L
- 208–415 V
- Nominal current (In)
- 5 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8030956089271
- SAP 1200714223
- Code 83813597
Product Documentation
