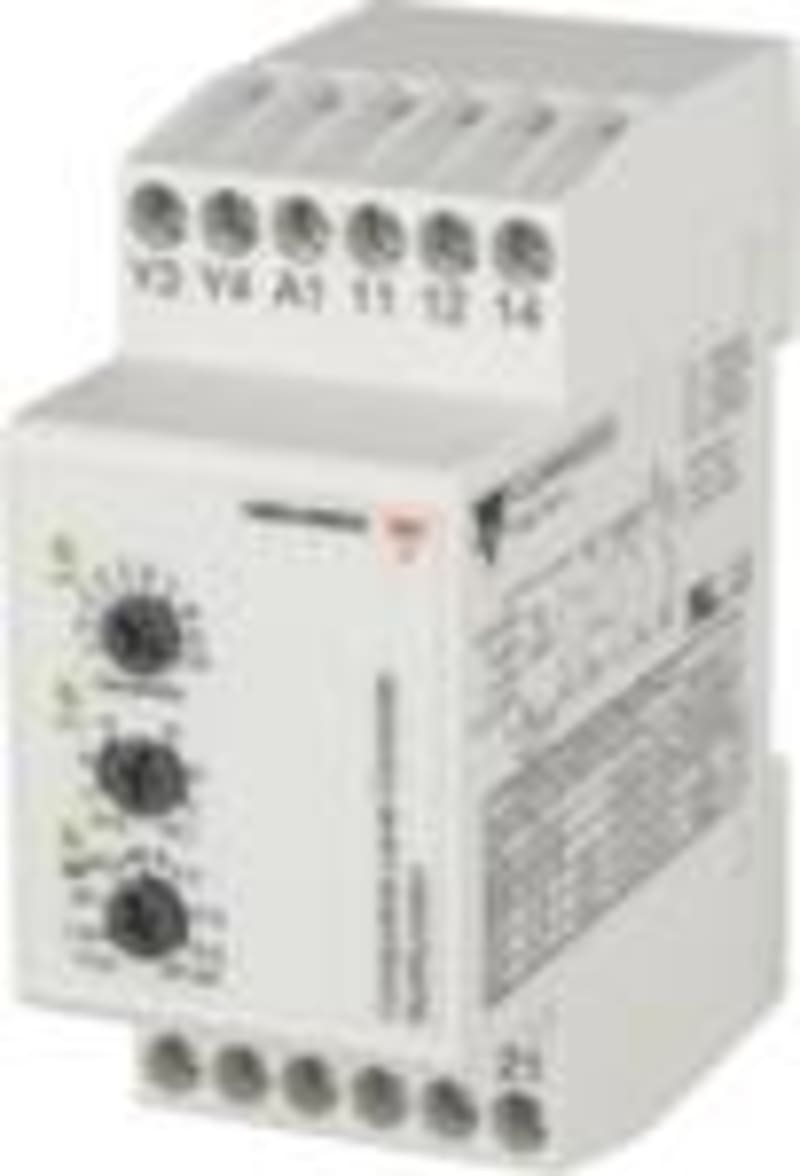

Level Relay 2+2 level DIN 230VAC

Carlo Gavazzi CLD4MA2D230 Manufacturer description: Conductive 2 to 4-point level controller, DIN rail mount, filing-emptying with multifunction, sensitivity 250 ohm -500 Kohm, SPST + SPDT relay output, supply voltage 230VAC, 35.5x81x60,2mm housing, IP20. CLD4MA2D230 Level Relay.

Manufacturer part number (MPN)

CLD4MA2D230

EAN / GTIN

5709870381343

Sales unit

pcs

Number of input probes

5

Adjustable sensitivity

No

Number of relay outputs

1

Min on-delay time

1 s

Max on-delay time

1 s

Min off-delay time

1 s

Max off-delay time

1 s

Rated operating voltage

0 V ... 0 V

Connection type

Screw terminals

Product width

35.5 mm

E-number (NO)

4367609

E-number (SE)

3864378

Operating voltage AC 50 Hz

0–5 V

Operating voltage AC 60 Hz

0–5 V

Supply voltage AC 50 Hz

195–265 V

Supply voltage AC 60 Hz

195–265 V

Rated switch current

8 A

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

230 V

Voltage type for actuating

AC

Number of inputs for electrodes

4

Min. adjustable operate delay time

1 s

Max. permitted operate delay time

1 s

Min. adjustable off-delay time

1 s

Max. permitted off-delay time

1 s

Number of contacts as normally open contact

1

Number of contacts as change-over contact

1

Physical measurement principle

Conductive

Width

35.5 mm

Height

81 mm

Depth

60.2 mm

Country of origin

Italy

HS Code

9030.90

• EAN 5709870381343
• SAP 1000250093
• Code 8208233
