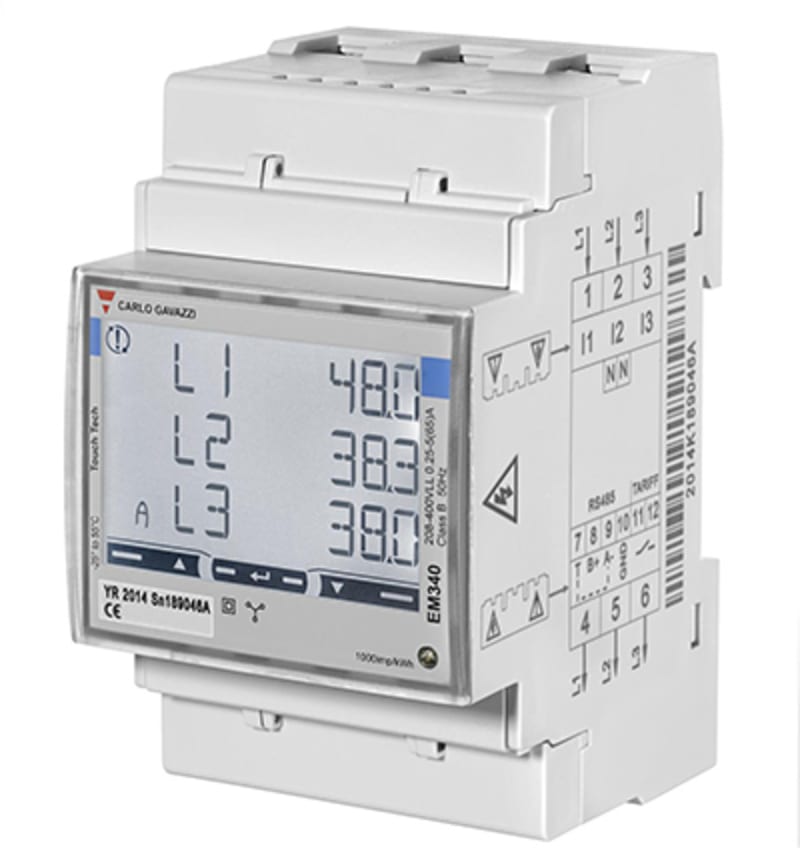

Carlo Gavazzi EM340 3-Phase MID Energy Meter 5(65) A with M-Bus

Carlo Gavazzi EM340DINAV23XM1PFA is a three-phase MID-certified energy meter measuring 120-230 V line-neutral or 208-400 V line-line at 5 A rated (65 A max) current. It supports direct measurement with an integrated M-Bus interface for remote reading. The 3-module DIN-rail unit provides two-tariff active and reactive energy metering to accuracy class B for fiscal billing. Typical use is sub-metering in commercial and industrial buildings.

Manufacturer part number (MPN)

EM340DINAV23XM1PFA

EAN / GTIN

8030956070224

Sales unit

pcs

Voltage inputs

2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L

Frequency

50Hz

Energy metering

Consumption

Communication port and protocol

M-Bus

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); MID (Europe, fiscal metering); UKCA (UK)

E-number (NO)

8200406

E-number (SE)

0934004

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Max. current (Imax)

65 A

Width in number of modular spacings

3

Number of positions total (counter)

8

Type of meter

Electronic

Degree of protection (IP)

IP51

Type of interface

M-bus (wired)

Energy type

Effective power and reactive power

Tariff type

Two-tariff

Tariff control

External

Approval

Measuring Instruments Directive

Pulse output

Optical

Accuracy class

B

Pole type

Three conductor/four conductor

Nominal current (In)

5 A

Country of origin

China

HS Code

9030.90
