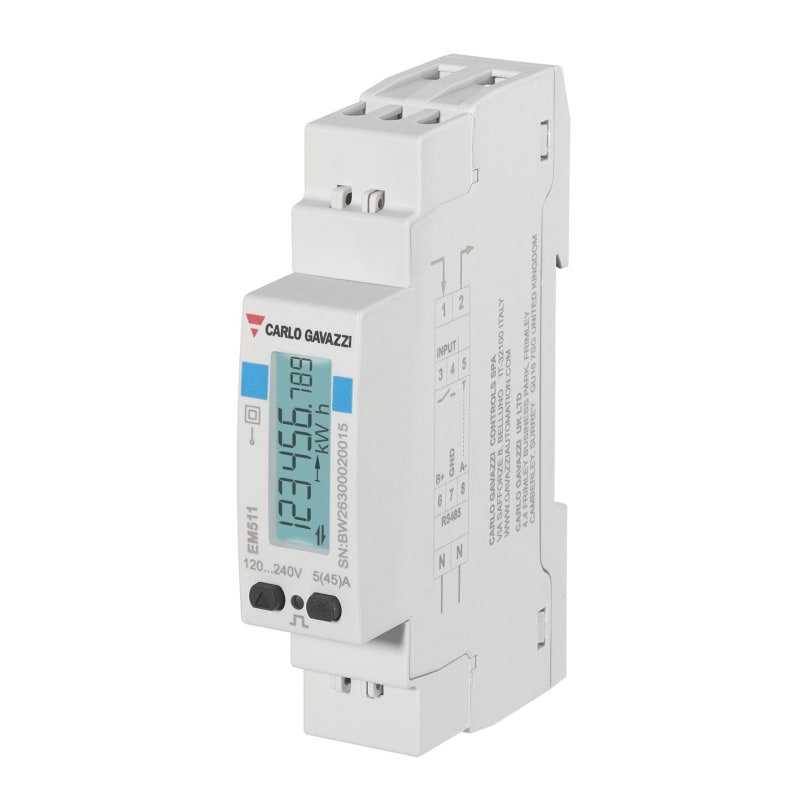

Carlo Gavazzi EM511 Single-Phase 45 A Energy Analyzer M-Bus EM511DINAV81XM1X
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi EM511DINAV81XM1X is a single-phase direct-connect energy analyzer for 120-240 V L-N systems up to 45 A. Communication is over M-Bus with a digital input; self-powered operation eliminates auxiliary supply wiring. DIN-rail mounted, 18 mm wide, IP20 protection, accuracy class C. Supports consumption and generation metering under MID approval. Typical applications include sub-metering, tenant billing and energy monitoring in commercial and industrial buildings.
Technical Specifications
- Manufacturer part number (MPN)
- EM511DINAV81XM1X
- EAN / GTIN
- 8054155003142
- Sales unit
- pcs
- Voltage inputs
- 1-phase (2-wire), 120 V L-N; 1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 1-phase (2-wire), 240 V L-N
- Frequency
- 60Hz
- Current inputs
- direct connection up to 45 A
- Energy metering
- Consumption and generation
- Communication port and protocol
- M-Bus
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); cULus (North America); UKCA (UK)
- E-number (NO)
- 8201175
- E-number (SE)
- 0951112
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 18 mm
- Model
- Direct measurement
- Height
- 90 mm
- Depth
- 58 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Power consumption
- 0.6 W
- Max. current (Imax)
- 45 A
- Width in number of modular spacings
- 1
- Number of positions total (counter)
- 9
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Type of interface
- M-bus (wired)
- Energy type
- Effective power and reactive power
- Tariff type
- One-tariff
- Tariff control
- External
- Approval
- Measuring Instruments Directive
- Pulse output
- None
- Accuracy class
- C
- Pole type
- Single phase
- Nominal current (In)
- 45 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9033.00
Cross References
- EAN 8054155003142
- SAP 1200714240
- Code 83813591
Product Documentation
