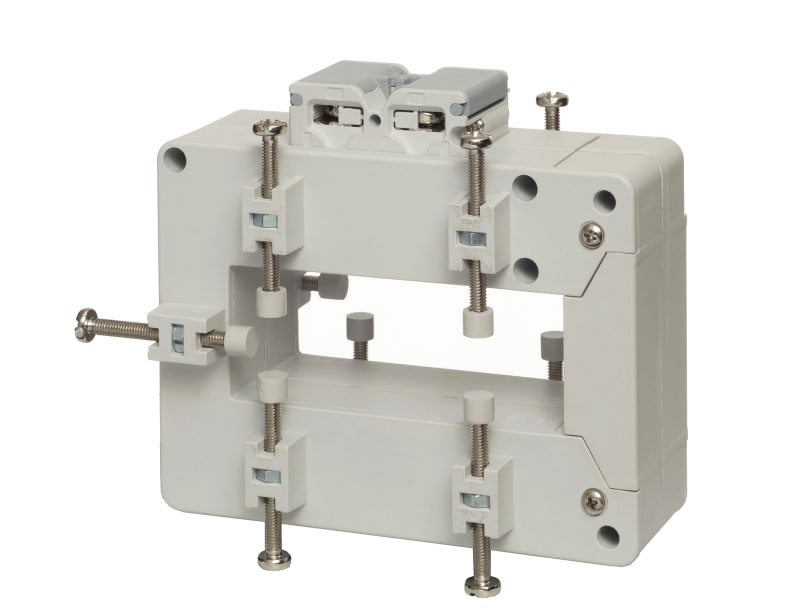

Current Transformer 1000/5A (CTD8H10005AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD8H10005AXXX Manufacturer description: Solid core Current transformer 1000A/5A. CTD8H10005AXXX Current transformer 1000/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD8H10005AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200520
- ETIM class
- SC002048
- Rated primary current
- 1000 A
- Output
- 5 A
- Hole diameter
- 31 mm (1.22 in)
- Max busbar width
- 81 mm (3.18 in)
- Accuracy class
- 0.5
- E-number (NO)
- 8200520
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 10 VA
- Overcurrent limiting factor
- FS 5
- Opening diameter
- 31 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453826
- Code 82515032
- El-nr 8200520
Product Documentation
