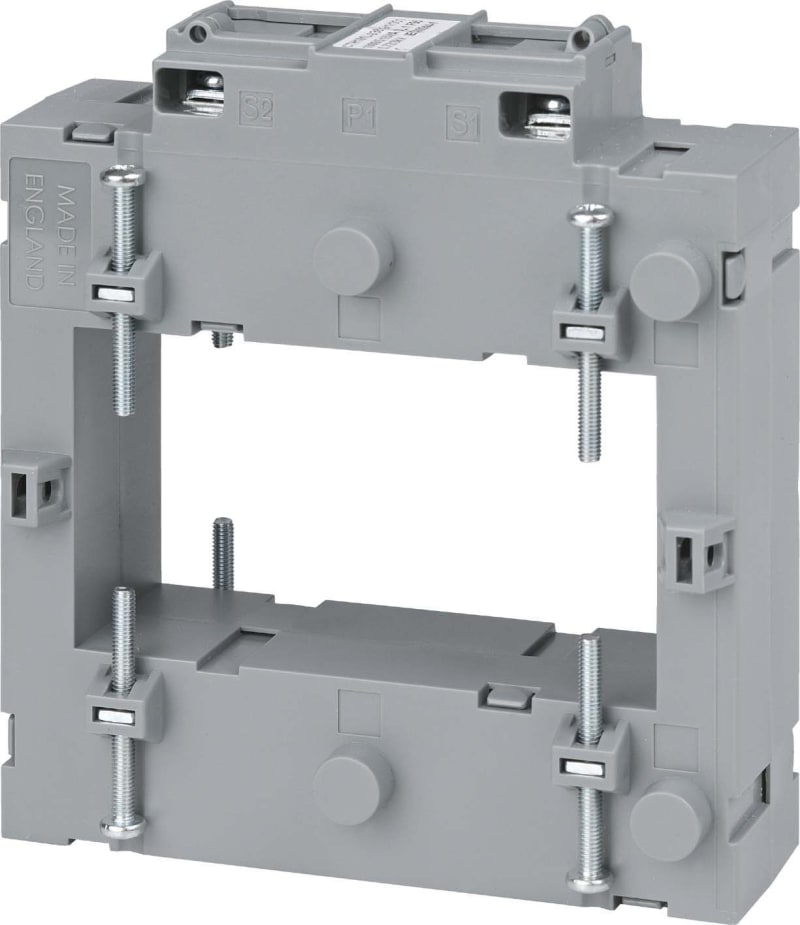

Current Transformer 1000/5A (CTD8Q10005AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD8Q10005AXXX Manufacturer description: Solid core Current transformer 1000A/5A. CTD8Q10005AXXX Current transformer 1000/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD8Q10005AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200527
- ETIM class
- SC002048
- Rated primary current
- 1000 A
- Output
- 5 A
- Hole diameter
- 55 mm (2.17 in)
- Max busbar width
- 101 mm (3.98 in)
- Accuracy class
- 0.5
- E-number (NO)
- 8200527
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 15 VA
- Overcurrent limiting factor
- FS 10
- Opening diameter
- 55.5 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453833
- Code 82514720
- El-nr 8200527
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Current Transformer 70/5A (CTD2X705AXXX)
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30S30N22POM1)
Carlo Gavazzi
Current Transformer 75/5A (CTD2X755AXXX)
Carlo Gavazzi
Current Transformer 400/5A (CTD8H4005AXXX)
Carlo Gavazzi
Current Transformer 1000/5A (CTD9H10005AXXX)
Carlo Gavazzi
Split-core current transformer 200A (CTD6S2005AXXX)
Carlo Gavazzi
Current Transformer 150/5A (CTD3X1505AXXX)
Carlo Gavazzi
Current Relay progr.bart 1/2/5A 230V (PIB01CB235A)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CTD8Q10005AXXX?
- CTD8Q10005AXXX can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CTD8Q10005AXXX.
- What is the HS code for CTD8Q10005AXXX?
- The customs tariff (HS) code for CTD8Q10005AXXX is 8504.31.
- Who manufactures CTD8Q10005AXXX?
- CTD8Q10005AXXX is a Carlo Gavazzi product in the Electrical Components range.
- Is a datasheet available for CTD8Q10005AXXX?
- Yes — the CTD8Q10005AXXX datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CTD8Q10005AXXX?
- The minimum order quantity is 1.
- Is CTD8Q10005AXXX available?
- Yes — CTD8Q10005AXXX is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
