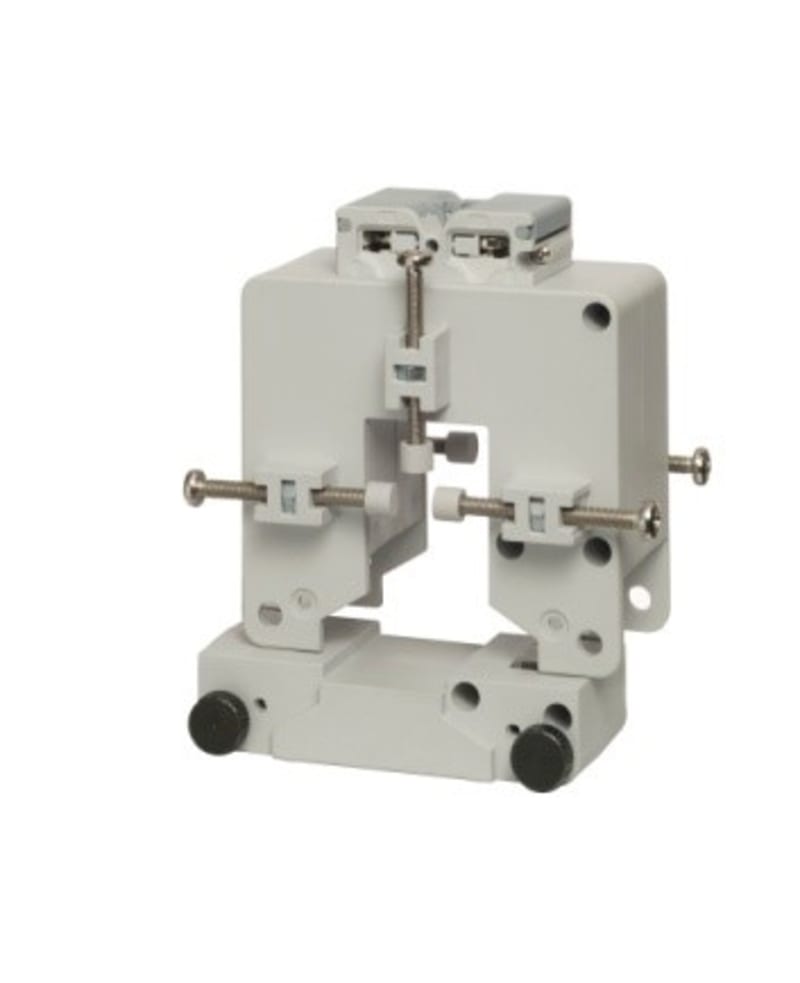

Split-core current transformer 100A (CTD5S1005AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD5S1005AXXX Manufacturer description: Split core Current transformer 100A/5A. CTD5S1005AXXX Divisible current transformer 100/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD5S1005AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200566
- ETIM class
- SC002048
- Rated primary current
- 100 A
- Output
- 5 A
- Hole diameter
- 26 mm (1.02 in)
- Max busbar width
- 26 mm (1.02 in)
- Accuracy class
- 3
- E-number (NO)
- 8200566
- E-number (SE)
- 4272554
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 1.5 VA
- Overcurrent limiting factor
- FS 5
- Opening diameter
- 26.7 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453900
- Code 82514894
- El-nr 8200566
Product Documentation
