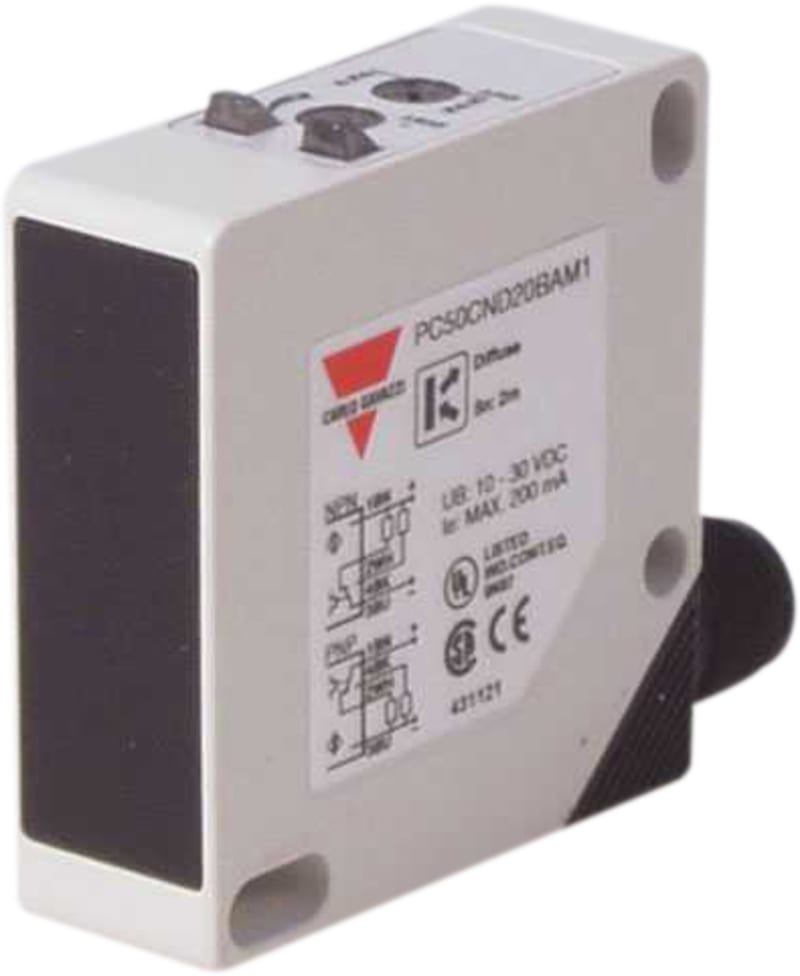

Photoelectric Sensor, Rectangular
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PC50CNB50BAM1 Manufacturer description: Diffuse-reflective Photoelectric Sensor with Adjustable Background Suppression, Range: 0-500mm, infrared light 850nm, Power Supply 10-30VDC, PNP/NPN Output, N.O. and N.C., light and dark switching, M12 Plug, 17x50x50mm housing, IP67. PC50CNB50BAM1 Photocell.
Technical Specifications
- Manufacturer part number (MPN)
- PC50CNB50BAM1
- EAN / GTIN
- 5709870293462
- Sales unit
- pcs
- Output type
- PNP/NPN
- Output function
- Change-over contact (NO/NC)
- Connection type
- Connector M12
- Housing type
- Rectangular
- Housing material
- Plastic
- Emitted light
- Infrared light
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP67
- Rated power supply
- 10 V ... 30 V
- E-number (NO)
- 4351111
- Triangulation
- Background fade-out
- Rated switching distance
- 500 mm
- Max. switching distance
- 500 mm
- Max. output current
- 200 mA
- Setting procedure
- Manual adjustment
- Number of semiconductor outputs with signalling function
- 2
- Number of protected semiconductor outputs
- 2
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Change-over contact (NO/NC)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Width sensor
- 17 mm
- Height of sensor
- 50 mm
- Length of sensor
- 50 mm
- Material of optical surface
- Plastic
- Max. output current at protected output
- 200 mA
- Min. reflector distance
- 120 mm
- Response time
- 2 ms
- Switching frequency
- 250 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- DC
- Laser protection class
- None
- Wavelength of the sensor
- 850 nm
- Type of light
- Infrared light
- Light dot
- 240 mm²
- AWG-number
- 22
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870293462
- SAP 1200454396
- Code 82528977
