3-Phase Soft Starter 25A 230-400V (RSGT4025F0V10)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RSGT4025F0V10 Manufacturer description: 3 phase soft starter for induction motors, Operating voltage (Ue): 220 - 400 Vac, Rated current (Ie): 25 Aac, Control voltage (Uc): 24 Vac/dc, DIN rail/Panel mount, Supply voltage (Us): Internal, 3-phase control, Class 10 overload. Soft starter for general drift RSGT4025F0V10.
Technical Specifications
- Manufacturer part number (MPN)
- RSGT4025F0V10
- EAN / GTIN
- 5350035435137
- Sales unit
- pcs
- Rated operation current Ie at 40C Tu
- 25 A
- Rated operating voltage Ue
- 187 V ... 440 V
- Rated power three-phase motor, inline, at 230 V
- 5.5 kW
- Rated power three-phase motor, inline, at 400 V
- 11 kW
- Rated control supply voltage Us at AC 50HZ
- 21.6 V ... 26.4 V
- Rated control supply voltage Us at DC
- 21.6 V ... 26.4 V
- Internal bypass
- Yes
- Product Width
- 45 mm
- Product Height
- 125 mm
- Product Depth
- 150 mm
- E-number (NO)
- 4100894
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Release class
- CLASS 10
- Rated surrounding temperature without derating
- 40 °C
- Voltage type for actuating
- DC
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 5350035435137
- SAP 1200590006
- Code 82961674
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
SSR 3-F. 600VAC/75A 24-275VAC (RZ3A60A75)
Carlo Gavazzi

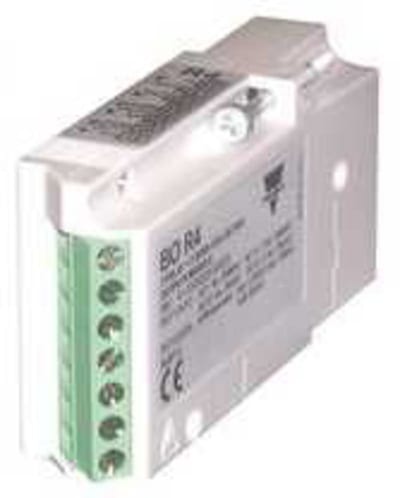

INPUT AC/DC V/A LOW, HJ.SPG. U
BQLSE
Carlo Gavazzi

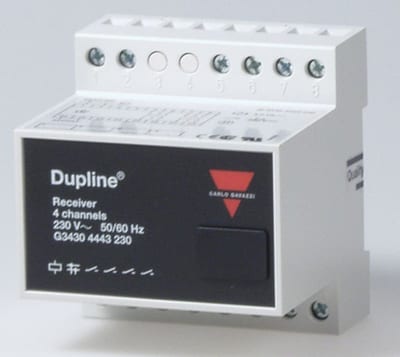

Dupline 8-Channel receiver 230VAC
G34305521230
Carlo Gavazzi

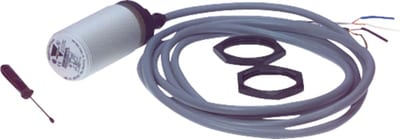

KAP.Transmitter M30,AC,NO+NC,CAB (EC3025TBAPL)
Carlo Gavazzi

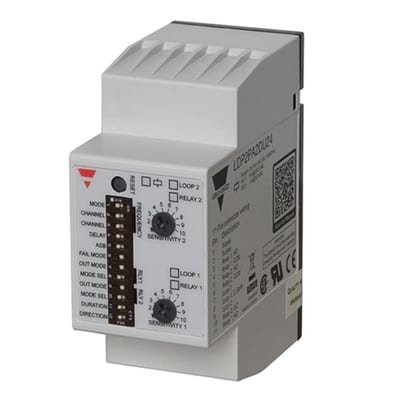

Carlo Gavazzi LDP2PA2DU24 Dual-Channel Loop Detector, Plug-In, 24-240 V AC/DC
Carlo Gavazzi
UK Närvarodetektor PD4-1C-CEILING
92149
Carlo Gavazzi
Photoelectric Sensor IO link BGS 350mm cable IP69K
PD30ETBR35BPA2IO
Carlo Gavazzi

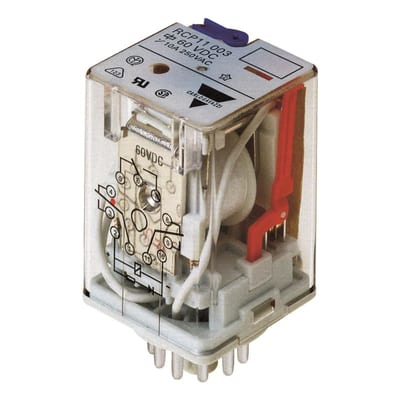

Auxiliary Relay 11-Pin 24VDC
