KAP.Transmitter M30,AC,NO+NC,CAB (EC3025TBAPL)
Pricing
Request a quote
We reply within 24 hours
Product Description

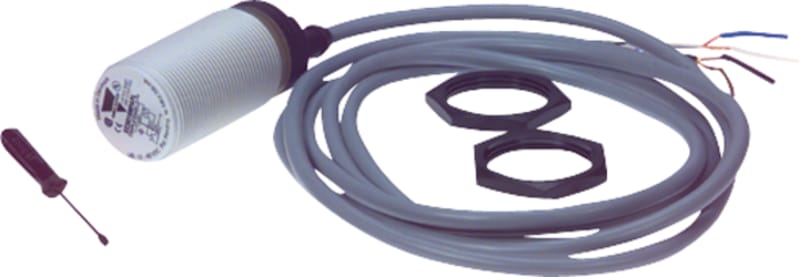

Carlo Gavazzi EC3025TBAPL Manufacturer description: Capacitive Proximity Sensor, Non-flush mountable, Sensing Range 25mm, Adjustable 4-25mm, Power Supply 20-250VAC, SCR output N.C.+N.O., Cable PVC, Housing M30 x 75,6mm, Tripleshield, IP67. EC3025TBAPL Sensors kapasitive.
Technical Specifications
- Manufacturer part number (MPN)
- EC3025TBAPL
- EAN / GTIN
- 5709870217598
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Installation type
- Non-Flush
- Output type
- Two-wire
- Output function
- Configurable
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Plastic
- Rated power supply
- 20 V ... 250 V
- Degree of protection
- IP67
- E-number (NO)
- 4368014
- E-number (SE)
- 3834440
- Length of sensor
- 75.6 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 25 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- 2-wire
- Type of electric connection
- Cable
- Number of protected semiconductor outputs
- 1
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 500 mA
- Voltage type
- AC
- Switching frequency
- 10 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870217598
- SAP 1000140235
- Code 81132027
Product Documentation
