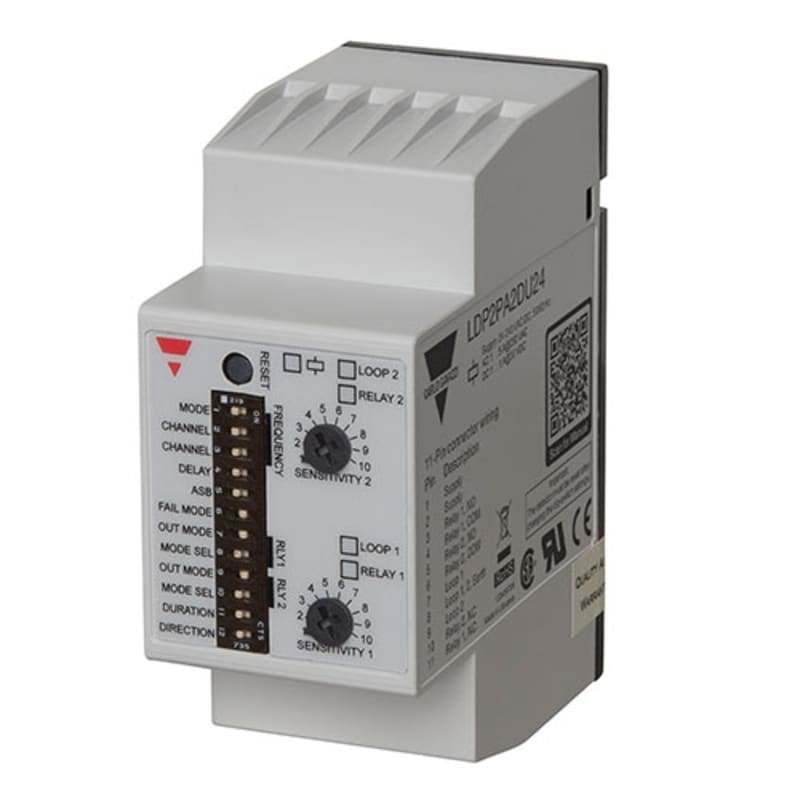

Carlo Gavazzi LDP2PA2DU24 Dual-Channel Loop Detector, Plug-In, 24-240 V AC/DC

Carlo Gavazzi LDP2PA2DU24 is a dual-channel plug-in loop detector for inductive vehicle detection. Loop inductance range 20 uH to 1000 uH with adjustable sensitivity 0.01-1 percent, automatic sensitivity boost and manual or automatic frequency tuning across four channels. Supply 24-240 V AC/DC, IP30, width 35.5 mm.

Manufacturer part number (MPN)

LDP2PA2DU24

EAN / GTIN

5709870400259

Sales unit

pcs

Number of input probes

2

Adjustable sensitivity

Yes

Min on-delay time

0.01 s

Max on-delay time

1 s

Rated operating voltage

24 V ... 240 V

Connection type

Plug-in connection

Product width

35.5 mm

E-number (NO)

4367688

E-number (SE)

3832484

Supply voltage AC 50 Hz

24–240 V

Supply voltage AC 60 Hz

24–240 V

Supply voltage DC

24–240 V

Rated switch current

5 A

Voltage type (supply voltage)

AC/DC

Type of electric connection

Plug-in connection

Voltage type for actuating

AC/DC

With detachable clamps

No

Number of inputs for electrodes

2

Min. adjustable operate delay time

0.01 s

Max. permitted operate delay time

1 s

Min. adjustable off-delay time

0 s

Response value sensitivity adjustable

Yes

Number of contacts as change-over contact

2

Physical measurement principle

Inductive

Cascadable

No

Width

35.5 mm

Height

81 mm

Depth

76.2 mm

Country of origin

Italy

HS Code

9030.90

• EAN 5709870400259
• SAP 1200293027
• Code 82417004
