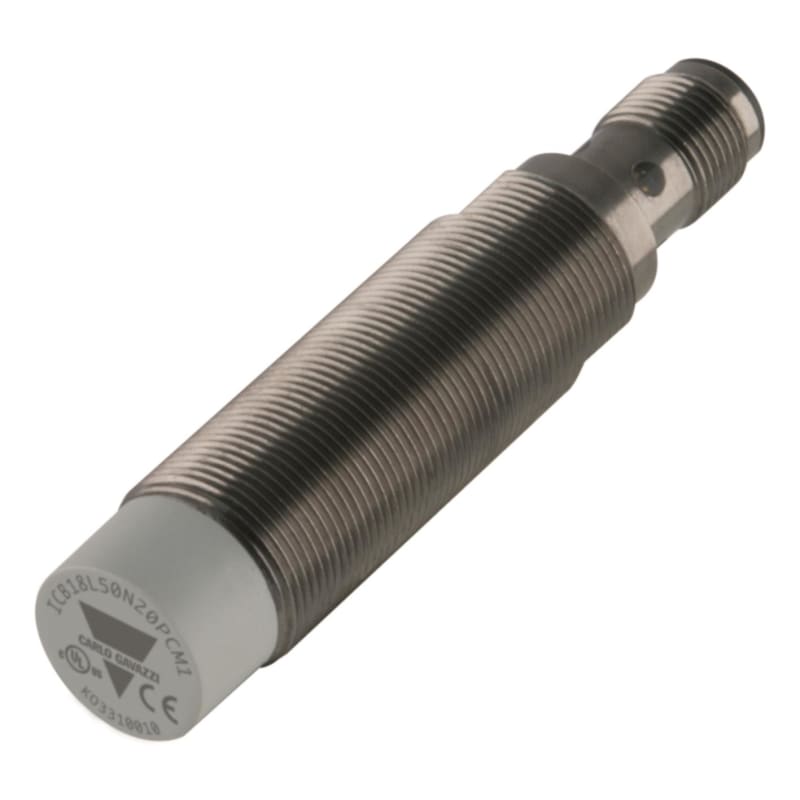

Inductive transmitter M18 PNP NC plug connection (ICB18L50N20PCM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB18L50N20PCM1 Manufacturer description: Inductive proximity sensor, M18 Nickel-Plated Brass, M12 plug, Sn 20mm, Non-flush mount, Long body, PNP NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1,5 kHz, Operating temperature -25C - +70C, IP67. Inductive transmitter M18 PNP NC plug connection, unshielded version length 50mm. Sensing distance 20mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB18L50N20PCM1
- EAN / GTIN
- 8030956075526
- Sales unit
- pcs
- Rated operating distance
- 20 mm
- Installation type
- Non-flush
- Diameter
- M18
- Output type
- PNP
- Output function
- Normally Closed (NC)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336948
- Length of sensor
- 85 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 20 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956075526
- SAP 1200292845
- Code 82264044
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive transmitter M12 PNP NO 2M cable (ICB12S30N10PO)
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18L50F08A2IO)
Carlo Gavazzi
Meter Wireless MBUS INT ANT (EM24DINAV53XW1IX)
Carlo Gavazzi
Inductive Transmitter ICB30L50F15PO
Carlo Gavazzi

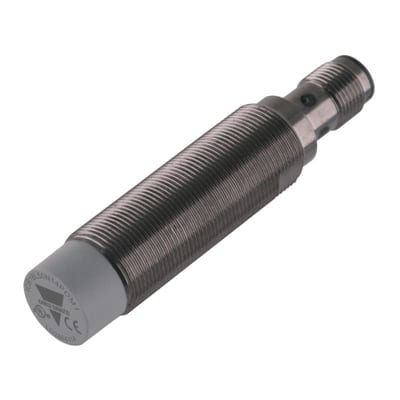

Inductive transmitter M18 PNP NC plug connection (ICB18L50N14PCM1)
Carlo Gavazzi

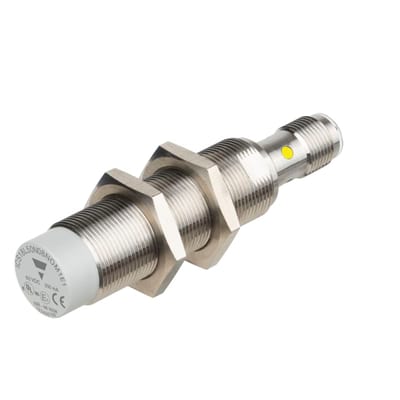

IND Transmitter M18 NPN NO Unshielded PLUG
4316505
Carlo Gavazzi

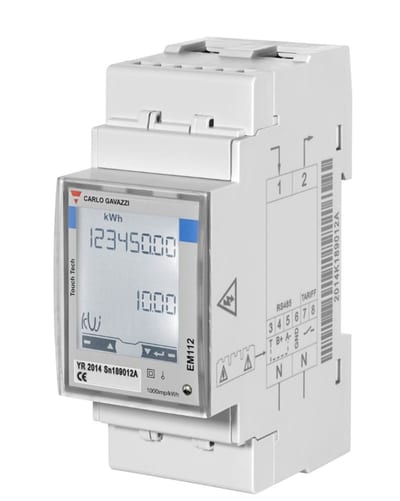

Meter 1-Phase 100A with RS485 (EM112DINAV01XS1X)
Carlo Gavazzi

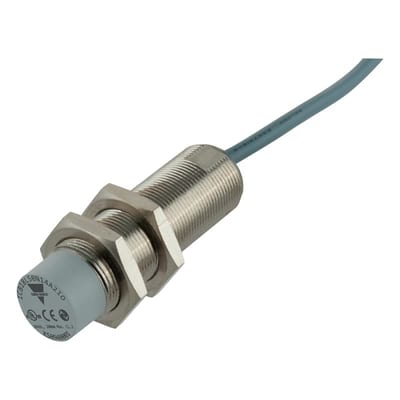

Inductive Transmitter M18 IO-LINK (ICB18S30N14A2IO)
