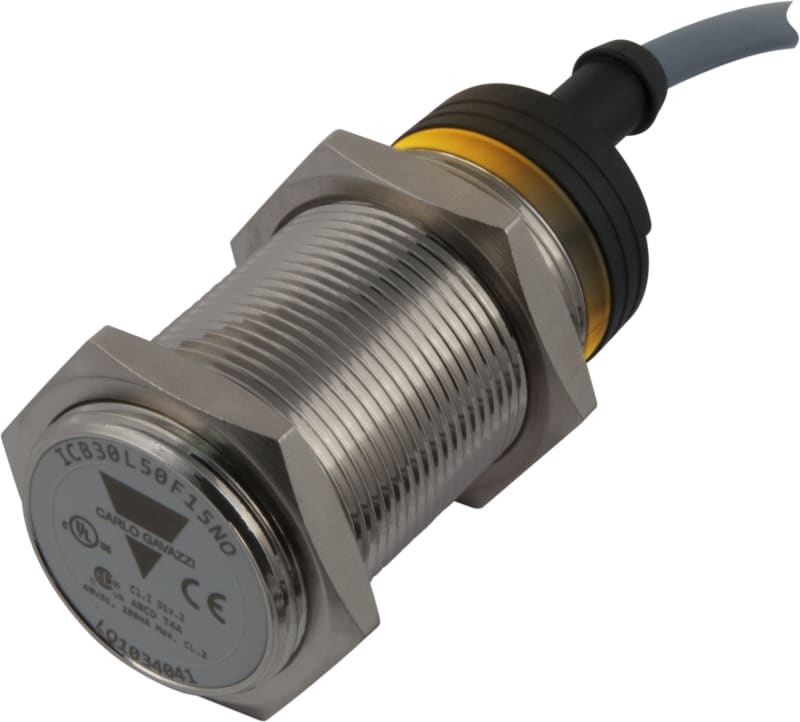

Inductive Transmitter ICB30L50F15PO
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB30L50F15PO Manufacturer description: Inductive proximity sensor, M30 Nickel-Plated Brass, 2m cable, Sn 15mm, Flush mount, Long body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1 kHz, Operating temperature -25C - +70C, IP67. ICB30L50F15PO INDUCTIVE TRANSMITTER.
Technical Specifications
- Manufacturer part number (MPN)
- ICB30L50F15PO
- EAN / GTIN
- 8030956080230
- Sales unit
- pcs
- Rated operating distance
- 15 mm
- Installation type
- Flush
- Diameter
- M30
- Output type
- PNP
- Output function
- Normally Open (NO)
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4367663
- Length of sensor
- 50 mm
- Diameter sensor
- 30 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 15 mm
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1000 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956080230
- SAP 1200292939
- Code 82264100
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Inductive transmitter M18 PNP NC plug connection (ICB18L50N14PCM1)
Carlo Gavazzi
IND Transmitter M18 NPN NO Unshielded PLUG
4316505
Carlo Gavazzi
Meter 1-Phase 100A with RS485 (EM112DINAV01XS1X)
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18S30N14A2IO)
Carlo Gavazzi

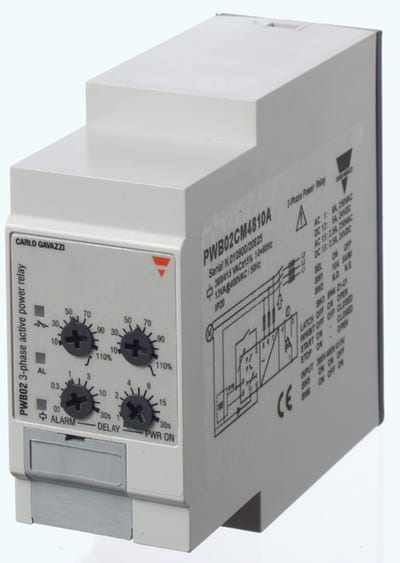

Motor Load Monitor cos. phi 380-480V (PWB02CM4810A)
