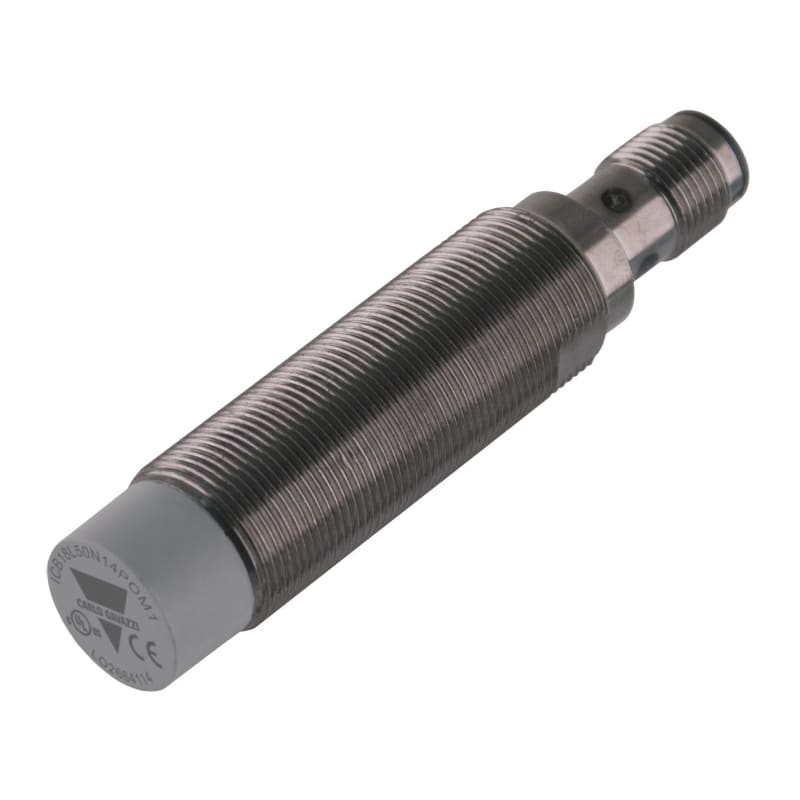

Inductive transmitter M18 PNP NC plug connection (ICB18L50N14PCM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB18L50N14PCM1 Manufacturer description: Inductive proximity sensor, M18 Nickel-Plated Brass, M12 plug, Sn 14mm, Non-flush mount, Long body, PNP NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1,5 kHz, Operating temperature -25C - +70C, IP67. Inductive transmitter M18 PNP NC plug connection, unshielded version length 50mm. Sensing distance 14mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB18L50N14PCM1
- EAN / GTIN
- 8030956073331
- Sales unit
- pcs
- Rated operating distance
- 14 mm
- Installation type
- Non-flush
- Diameter
- M18
- Output type
- PNP
- Output function
- Normally Closed (NC)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336944
- Length of sensor
- 85 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 14 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956073331
- SAP 1200292837
- Code 82263349
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
IND Transmitter M18 NPN NO Unshielded PLUG
4316505
Carlo Gavazzi
Meter 1-Phase 100A with RS485 (EM112DINAV01XS1X)
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18S30N14A2IO)
Carlo Gavazzi
Motor Load Monitor cos. phi 380-480V (PWB02CM4810A)
Carlo Gavazzi
3-Phase soft starter 70A 230-400V (RSGT4070F0V111C)
Carlo Gavazzi
IND Transmitter M12 NPN NO Unshielded PLUG
ICS12L50N08NOM1E1
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18S30F08A2IO)
Carlo Gavazzi
Inductive transmitter M30 PNP NC 2M cable (ICB30L50N15PC)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ICB18L50N14PCM1?
- ICB18L50N14PCM1 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is ICB18L50N14PCM1.
- What is the HS code for ICB18L50N14PCM1?
- The customs tariff (HS) code for ICB18L50N14PCM1 is 8536.50.
- Who manufactures ICB18L50N14PCM1?
- ICB18L50N14PCM1 is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for ICB18L50N14PCM1?
- Yes — the ICB18L50N14PCM1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ICB18L50N14PCM1?
- The minimum order quantity is 1.
- Is ICB18L50N14PCM1 available?
- Yes — ICB18L50N14PCM1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
