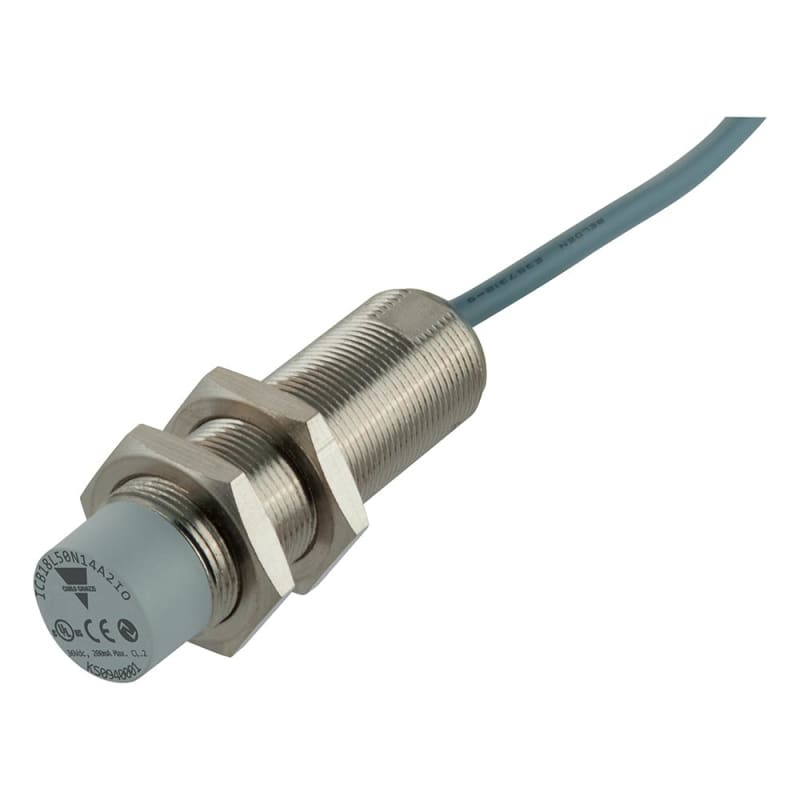

Inductive Transmitter M18 IO-LINK (ICB18S30N14A2IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB18S30N14A2IO Manufacturer description: Inductive proximity sensor, M18 Nickel-Plated Brass, 2m cable, Sn 14mm, Non-Flush mount, Short body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1.5 kHz, Operating temp. -25C - +70C, IP67, IO-Link. Inductive transmitter IO link ICB18S30N14A2IO.
Technical Specifications
- Manufacturer part number (MPN)
- ICB18S30N14A2IO
- EAN / GTIN
- 5709870394541
- Sales unit
- pcs
- Rated operating distance
- 14 mm
- Installation type
- Non-flush
- Diameter
- M18
- Output type
- PNP/NPN
- Output function
- Programmable/configurable
- Connection type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4319132
- E-number (SE)
- 3832460
- Width sensor
- 1 mm
- Height of sensor
- 1 mm
- Length of sensor
- 30 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 14 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Cable
- Number of semiconductor outputs with signalling function
- 1
- Number of contact energized outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Number of protected contact energized outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 100 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic DC- and AC-field
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870394541
- SAP 1200292894
- Code 82264026
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Motor Load Monitor cos. phi 380-480V (PWB02CM4810A)
Carlo Gavazzi
3-Phase soft starter 70A 230-400V (RSGT4070F0V111C)
Carlo Gavazzi
IND Transmitter M12 NPN NO Unshielded PLUG
ICS12L50N08NOM1E1
Carlo Gavazzi
Inductive Transmitter M18 IO-LINK (ICB18S30F08A2IO)
Carlo Gavazzi
Inductive transmitter M30 PNP NC 2M cable (ICB30L50N15PC)
Carlo Gavazzi
3-Phase soft starter 55A 230-400V (RSGT4055F0V111C)
Carlo Gavazzi
Meter Wireless MBUS EXT ANT (EM24DINAV23XW1EPFA)
Carlo Gavazzi
Carlo Gavazzi Surface-Mount Plinth for SxQxxx PIR Sensor
4540287
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ICB18S30N14A2IO?
- ICB18S30N14A2IO can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is ICB18S30N14A2IO.
- What is the HS code for ICB18S30N14A2IO?
- The customs tariff (HS) code for ICB18S30N14A2IO is 9030.90.
- Who manufactures ICB18S30N14A2IO?
- ICB18S30N14A2IO is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for ICB18S30N14A2IO?
- Yes — the ICB18S30N14A2IO datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ICB18S30N14A2IO?
- The minimum order quantity is 1.
- Is ICB18S30N14A2IO available?
- Yes — ICB18S30N14A2IO is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
