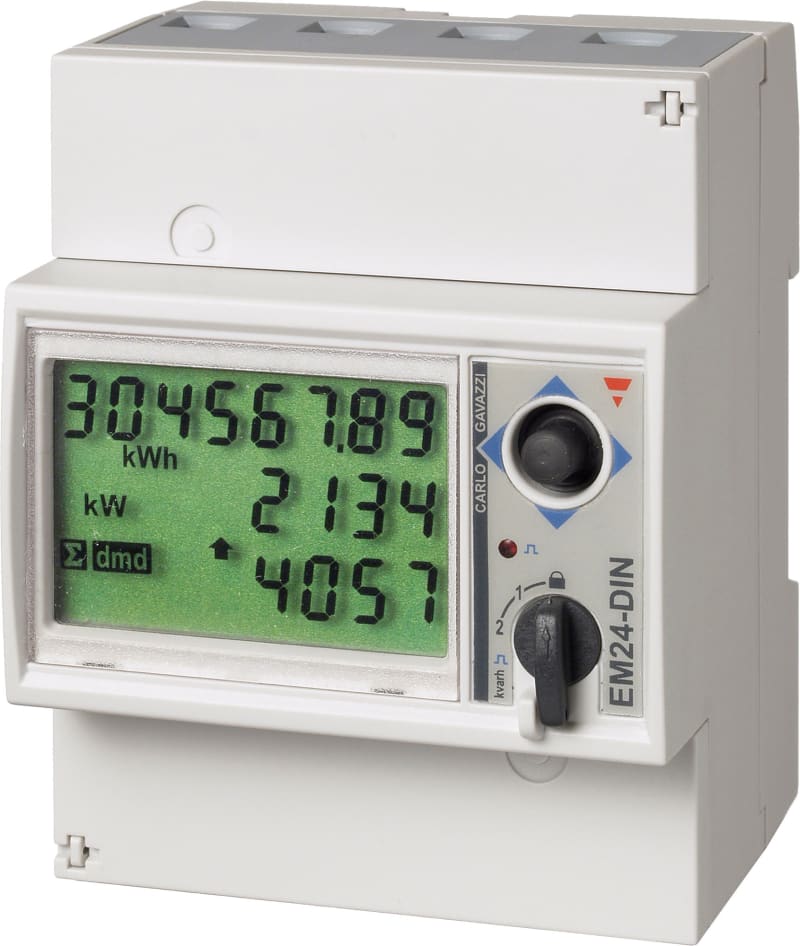

Meter Wireless MBUS EXT ANT (EM24DINAV23XW1EPFA)

Carlo Gavazzi EM24DINAV23XW1EPFA Manufacturer description: Three-phase MID Energy analyzer, 133 to 230 V L-N, 230 to 400 V L-L, 10 (65) A, Wireless M-Bus, external antenna. Energy meter EM24DINAV23XW1EPFA.

Manufacturer part number (MPN)

EM24DINAV23XW1EPFA

EAN / GTIN

8030956087321

Sales unit

pcs

Voltage inputs

1-phase (2-wire), 220 V L-N; 1-phase (2-wire), 230 V L-N; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L

Frequency

50Hz

Current inputs

direct connection up to 65 A

Energy metering

Consumption

Communication port and protocol

wireless M-Bus with external antenna

Power supply

Self power supply

Approvals, marks, declarations

CE (Europe); MID (Europe, fiscal metering); UKCA (UK)

E-number (NO)

8200745

E-number (SE)

0902424

Mounting method

DRA (DIN-rail adaptor)

Model

Direct measurement

Suitable for

Purchase

Type of indication

Digital

Max. current (Imax)

65 A

Width in number of modular spacings

4

Number of positions total (counter)

8

Type of meter

Electronic

Degree of protection (IP)

IP50

Type of interface

M-bus (wired)

Energy type

Effective power and reactive power

Tariff type

Multi-tariff

Tariff control

External

Escapement mechanism

No

Calibrated

Yes

Approval

Measuring Instruments Directive

Pulse output

Optical

Accuracy class

B

Pole type

Three conductor/four conductor

Measurement type load profile

No

EEC40 signature

No

With lock code

Yes

Nominal voltage (Un) N-L

120–277 V

Nominal voltage (Un) L-L

208–480 V

Nominal current (In)

10 A

Country of origin

China

HS Code

9031.80

• EAN 8030956087321
• SAP 1200453778
• Code 82515046
