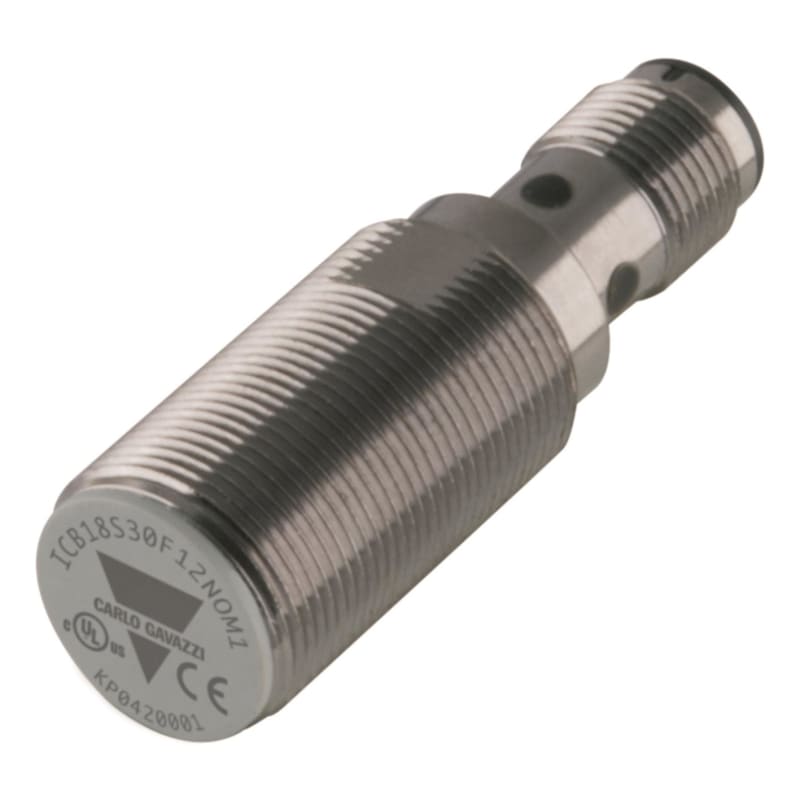

Inductive transmitter M18 PNP NO plug connection (ICB18S30F12POM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB18S30F12POM1 Manufacturer description: Inductive proximity sensor, M18 Nickel-Plated Brass, M12 plug, Sn 12mm, Quasi-flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1,5 kHz, Operating temperature -25C - +70C, IP67. Inductive transmitter M18 PNP NO plug connection, shielded version length 30mm. Sensing distance 12mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB18S30F12POM1
- EAN / GTIN
- 8030956075397
- Sales unit
- pcs
- Rated operating distance
- 12 mm
- Installation type
- Quasi-flush
- Diameter
- M18
- Output type
- PNP
- Output function
- Normally Open (NO)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336956
- Length of sensor
- 55 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 12 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 1500 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956075397
- SAP 1200292881
- Code 82264014
Product Documentation
