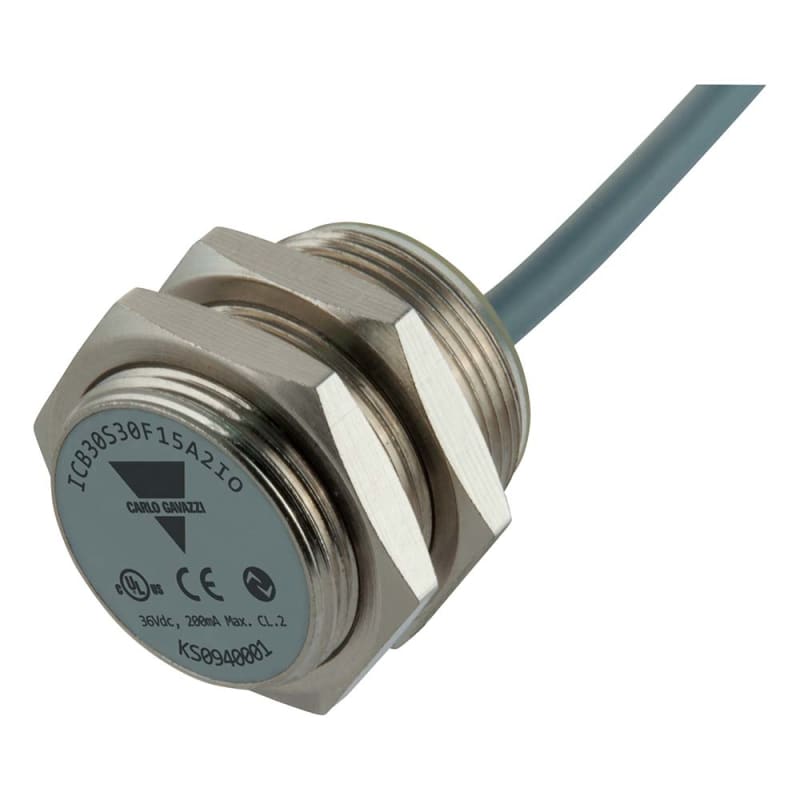

Inductive Transmitter M30 IO-LINK (ICB30S30F15A2IO)

Carlo Gavazzi ICB30S30F15A2IO Manufacturer description: Inductive proximity sensor, M30 Nickel-Plated Brass, 2m cable, Sn 15mm, Flush mount, Short body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1 kHz, Operating temperature -25C - +70C, IP67, IO-Link. Inductive transmitter IO link ICB30S30F15A2IO.

Manufacturer part number (MPN)

ICB30S30F15A2IO

EAN / GTIN

5709870394619

Sales unit

pcs

Rated operating distance

15 mm

Installation type

Flush

Diameter

M30

Output type

PNP/NPN

Output function

Programmable/configurable

Connection type

Cable

Housing type

Cylindrical, threaded barrel

Housing material

Metal

Rated power supply

10 V ... 36 V

E-number (NO)

4319142

E-number (SE)

3832462

Width sensor

1 mm

Height of sensor

1 mm

Length of sensor

30 mm

Diameter sensor

30 mm

Mechanical mounting condition for sensor

Concise

Switching distance

15 mm

Type of switch function

Programmable/configurable

Type of switching output

PNP/NPN

Type of electric connection

Cable

Number of semiconductor outputs with signalling function

1

Number of contact energized outputs with signalling function

1

Number of protected semiconductor outputs

1

Number of protected contact energized outputs

1

Type of actuation

Metallic Target

Type of interface for safety communication

None

Construction type housing

Cylinder, screw-thread

Coating housing

Nickel-plated

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Max. output current at protected output

100 mA

Voltage type

DC

Switching frequency

1500 Hz

Explosion safety category for gas

None

Explosion safety category for dust

None

Interference resistance to magnetic fields

Immune against magnetic DC- and AC-field

Country of origin

Italy

HS Code

9030.90
