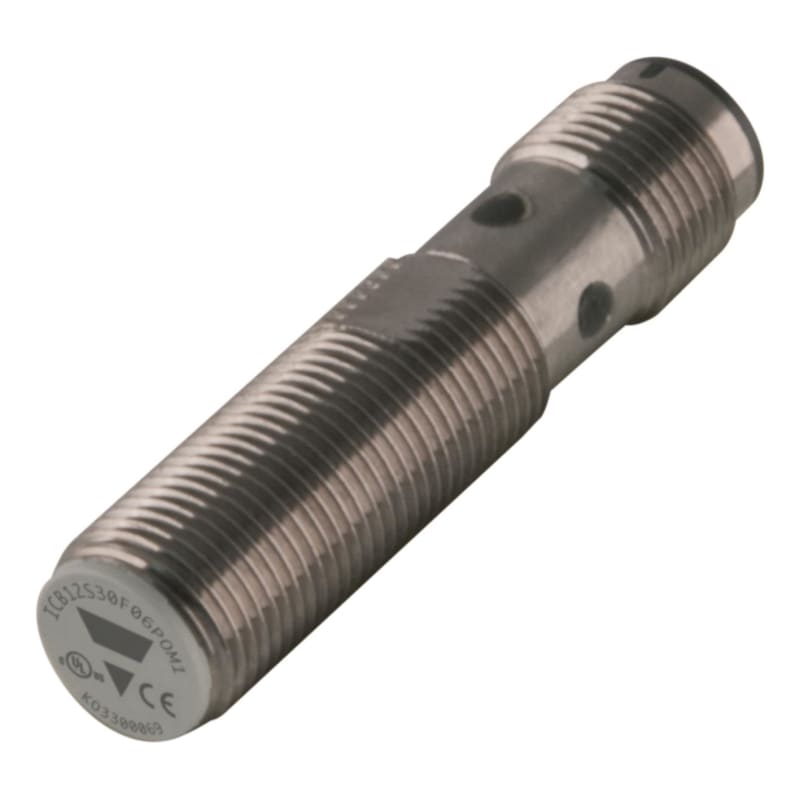

Inductive transmitter M12 PNP NO plug connection (ICB12S30F06POM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB12S30F06POM1 Manufacturer description: Inductive proximity sensor, M12 Nickel-Plated Brass, M12 plug, Sn 6mm, Quasi-flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C - +70C, IP67. Inductive transmitter M12 PNP NO plug connection, shielded version length 30mm. Sensing distance 6mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB12S30F06POM1
- EAN / GTIN
- 8030956075052
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operating distance
- 6 mm
- Installation type
- Quasi-flush
- Diameter
- M12
- Output type
- PNP
- Output function
- Normally Open (NO)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336926
- Length of sensor
- 50 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 6 mm
- Suitable for safety functions
- No
- Type of switch function
- Normally open contact (NO)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 2000 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956075052
- SAP 1200292738
- Code 82262635
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
PCB Socket for RSLM-relay
ZRLP
Carlo Gavazzi
Split-core Current Transformer (CTA6X600A5A)
Carlo Gavazzi
Double Differansetrykktrans AIR 2500PA (kpel-N)
KPEL-N
Carlo Gavazzi
Fotocelleforsterker 3-Channel 24VAC/DC
PAM03DB1RAU24
Carlo Gavazzi
Carlo Gavazzi RHS301 DIN Rail Heatsink for SSR 0.82 °C/W
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30L50F10POM1)
Carlo Gavazzi
Carlo Gavazzi LDP1PA2DU24 Single-Channel Plug-In Loop Detector Relay
Carlo Gavazzi
Photoelectric Sensor, Direct M18,AC,NO,CAB
PA18ALD04TOSA
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ICB12S30F06POM1?
- ICB12S30F06POM1 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is ICB12S30F06POM1.
- What is the HS code for ICB12S30F06POM1?
- The customs tariff (HS) code for ICB12S30F06POM1 is 8536.50.
- Who manufactures ICB12S30F06POM1?
- ICB12S30F06POM1 is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for ICB12S30F06POM1?
- Yes — the ICB12S30F06POM1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ICB12S30F06POM1?
- The minimum order quantity is 1.
- Is ICB12S30F06POM1 available?
- Yes — ICB12S30F06POM1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
