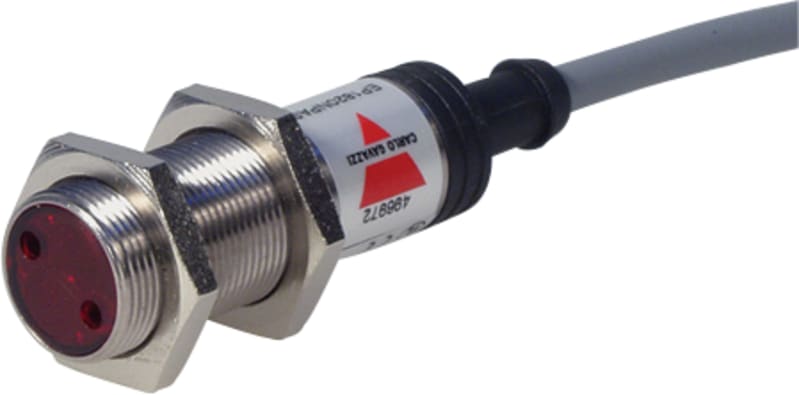

Photoelectric Sensor, Direct M18,AC,NO,CAB
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PA18ALD04TOSA Manufacturer description: Diffuse-reflective Photoelectric Sensor, range 400 mm, infrared modulated light 880nm, Power Supply 20-250VAC, 2-Wire, NO, 2m cable. PA18ALD04TOSA Photocells with accessories.
Technical Specifications
- Manufacturer part number (MPN)
- PA18ALD04TOSA
- EAN / GTIN
- 5709870262284
- Sales unit
- pcs
- Rated operating distance (Sn)
- 0 mm ... 400 mm
- Output type
- Two-wire
- Output function
- Normally Open (NO)
- Connection Type
- Cable
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Light source
- Infrared light
- Sensing mode
- Light switching
- Degree of protection
- IP67
- Rated power supply
- 0 V ... 0 V
- E-number (NO)
- 4351107
- E-number (SE)
- 3834920
- Voltage type
- AC
- Max. output current
- 500 mA
- Switching frequency
- 20 Hz
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Cable
- Type of switching output
- 2-wire
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Laser protection class
- None
- Type of light
- Infrared light
- Light dot
- 2177 mm²
- Max. output current at protected output
- 500 mA
- Min. reflector distance
- 0 mm
- Response time
- 20 ms
- Switching voltage of OSSD at state "high"
- 250 V
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 0–400 mm
- Wavelength of the sensor
- 880 nm
- Material of optical surface
- Plastic
- Material of cable sheath
- Polyvinyl chloride (PVC)
- AWG-number
- 20
- Diameter sensor
- 18 mm
- Length of sensor
- 71.5 mm
- Max. switching distance
- 400 mm
- With reflector
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870262284
- SAP 1000442420
- Code 8538485
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Socket for RMIA45 (ZMI4SA)
Carlo Gavazzi
Meter 1-Phase 230V 32A Mbus (EM111DINAV81XM1PFB)
Carlo Gavazzi
Carlo Gavazzi RHS00 DIN Rail Adapter Clip for RA/RK/RM/RAM/RS SSRs
Carlo Gavazzi
Time Relay BLINK/Pulse generator (ECSSM23A1M)
Carlo Gavazzi
Time Relay BLINK/Pulse generator (ECSSM23A10M)
Carlo Gavazzi
Inductive transmitter M30 PNP NO 2M cable (ICB30S30N22PO)
Carlo Gavazzi
Consumptionsmeter direct 100A
ET112DINAV01XS1X
Carlo Gavazzi
Time relay delayed. in. 1XRELEUTG. 22,5mm
DAA01CM24
