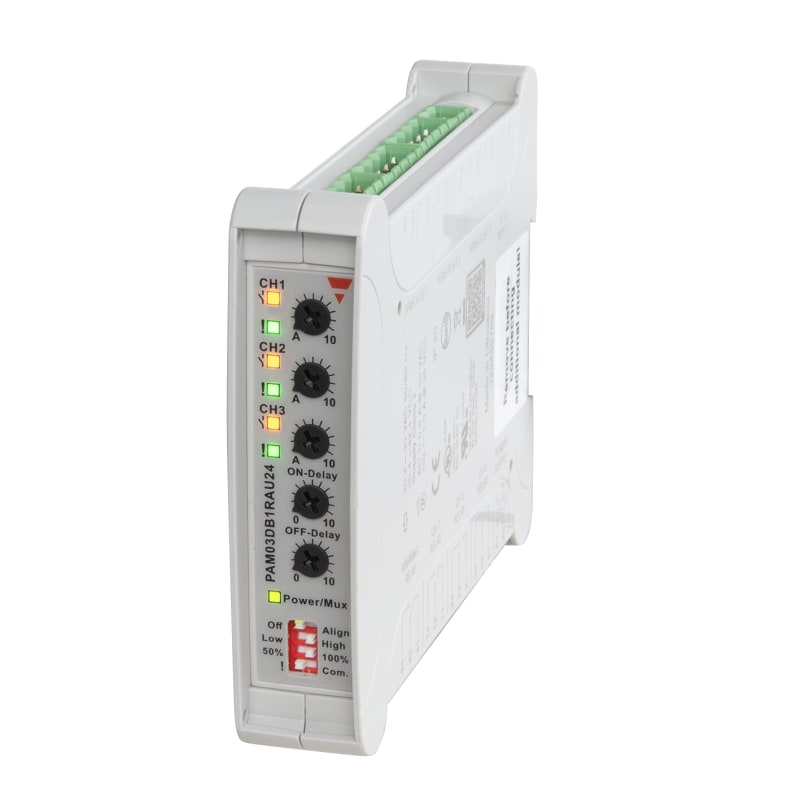

Fotocelleforsterker 3-Channel 24VAC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi PAM03DB1RAU24 Manufacturer description: Amplifier for 3 Through Beam sensors, Range up to: 50000mm, Adjustable Sensitivity, Diagnostic Functions, Alignment help, Power Supply : 24-42 VAC/DC, SPDT RELAY outputs, NO/NC, DIN-rail Spring terminals, UL508, UL325, Test input. Fotocelleforsterker 3-channel 24VAC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- PAM03DB1RAU24
- EAN / GTIN
- 8054155007966
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Rated operating distance
- 50000 mm
- Output type
- Relay contact
- Output function
- Change-over contact (NO/NC)
- Connection type
- Spring clamp connection
- Housing type
- Rectangular
- Housing Material
- Plastic
- Sensing mode
- Light-/dark switching
- Degree of protection
- IP20
- Rated Operational voltage UB at DC
- 24 V ... 42 V
- E-number (NO)
- 4317466
- Scope of delivery of the one-way system
- Transmitter and receiver
- Rated switching distance
- 50000 mm
- Max. switching distance
- 50000 mm
- Max. output current
- 1000 mA
- Setting procedure
- Manual adjustment
- Number of contact energized outputs with signalling function
- 4
- Type of electric connection
- Spring clamp connection
- Type of switching output
- Relay contact
- Type of switch function
- Change-over contact (NO/NC)
- Operation agent-safety class
- Safety class 2
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width sensor
- 23 mm
- Height of sensor
- 98 mm
- Length of sensor
- 122 mm
- Max. output current at protected output
- 1000 mA
- Response time
- 9 ms
- Switching frequency
- 55 Hz
- Switching voltage of OSSD at state "high"
- 40 V
- Voltage type
- AC/DC
- AWG-number
- 12
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8054155007966
- SAP 1200900018
- Code 84221697
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Carlo Gavazzi RHS301 DIN Rail Heatsink for SSR 0.82 °C/W
Carlo Gavazzi
Inductive transmitter M30 PNP NO plug connection (ICB30L50F10POM1)
Carlo Gavazzi
Carlo Gavazzi LDP1PA2DU24 Single-Channel Plug-In Loop Detector Relay
Carlo Gavazzi
Photoelectric Sensor, Direct M18,AC,NO,CAB
PA18ALD04TOSA
Carlo Gavazzi
Socket for RMIA45 (ZMI4SA)
Carlo Gavazzi
Meter 1-Phase 230V 32A Mbus (EM111DINAV81XM1PFB)
Carlo Gavazzi
Carlo Gavazzi RHS00 DIN Rail Adapter Clip for RA/RK/RM/RAM/RS SSRs
Carlo Gavazzi
Time Relay BLINK/Pulse generator (ECSSM23A1M)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy PAM03DB1RAU24?
- PAM03DB1RAU24 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is PAM03DB1RAU24.
- What is the HS code for PAM03DB1RAU24?
- The customs tariff (HS) code for PAM03DB1RAU24 is 8536.50.
- Who manufactures PAM03DB1RAU24?
- PAM03DB1RAU24 is a Carlo Gavazzi product in the Sensors & Instrumentation range.
- Is a datasheet available for PAM03DB1RAU24?
- Yes — the PAM03DB1RAU24 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for PAM03DB1RAU24?
- The minimum order quantity is 1.
- Is PAM03DB1RAU24 available?
- Yes — PAM03DB1RAU24 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
