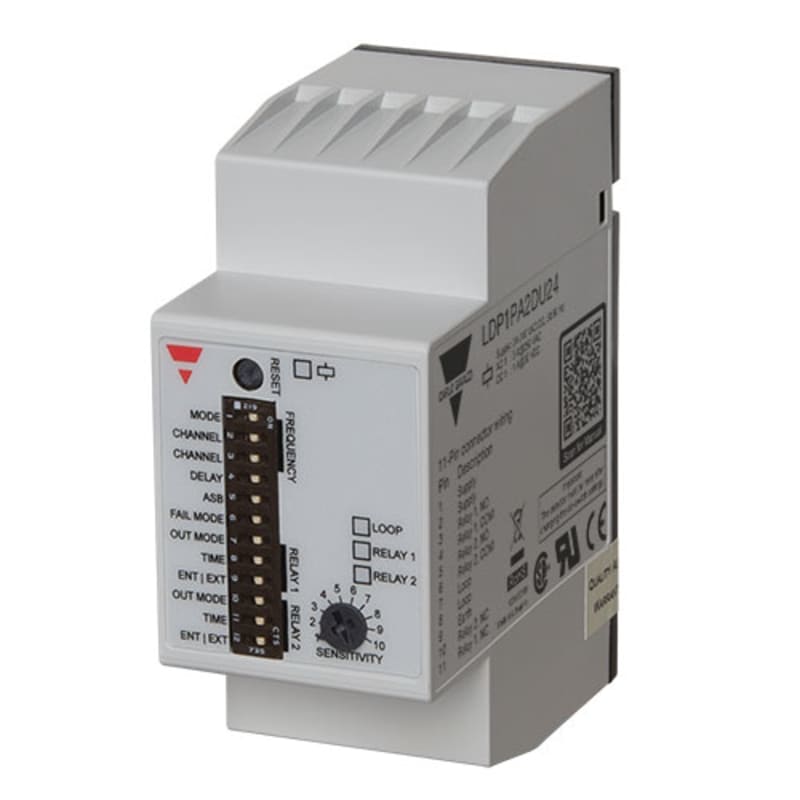

Carlo Gavazzi LDP1PA2DU24 Single-Channel Plug-In Loop Detector Relay

Carlo Gavazzi LDP1PA2DU24 single-channel plug-in loop-detector relay for inductance loops of 20-1000 µH, sensitivity adjustable from 0.01% to 1%. Automatic sensitivity boost, manual and automatic frequency tuning across four channels, dual change-over contact output, supply 24-240 V AC/DC and IP30.

Manufacturer part number (MPN)

LDP1PA2DU24

EAN / GTIN

5709870400242

Sales unit

pcs

Number of input probes

1

Adjustable sensitivity

Yes

Min on-delay time

0.01 s

Max on-delay time

1 s

Rated operating voltage

24 V ... 240 V

Connection type

Plug-in connection

Product width

35.5 mm

E-number (NO)

4319146

E-number (SE)

3832483

Supply voltage AC 50 Hz

24–240 V

Supply voltage AC 60 Hz

24–240 V

Supply voltage DC

24–240 V

Rated switch current

5 A

Voltage type (supply voltage)

AC/DC

Type of electric connection

Plug-in connection

Voltage type for actuating

AC/DC

With detachable clamps

No

Number of inputs for electrodes

1

Min. adjustable operate delay time

0.01 s

Max. permitted operate delay time

1 s

Min. adjustable off-delay time

0 s

Response value sensitivity adjustable

Yes

Number of contacts as change-over contact

2

Physical measurement principle

Inductive

Cascadable

No

Width

35.5 mm

Height

81 mm

Depth

76.2 mm

Country of origin

Italy

HS Code

9030.90

• EAN 5709870400242
• SAP 1200293026
• Code 82417005
