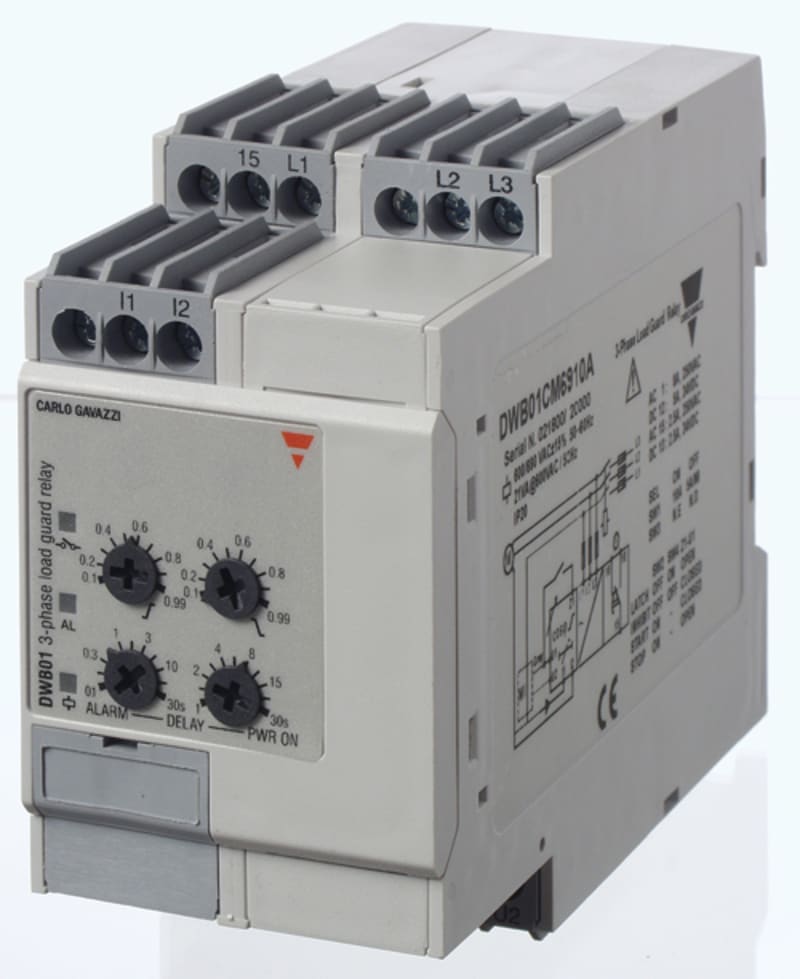

Motor Load Monitor cos. phi 208-240V (DWB01CM2310A)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi DWB01CM2310A Manufacturer description: 3-phase power factor monitoring relay, measuring range up to 5A, 10A or with MI current transformers, 1 SPDT relay output, 45 mm DIN-rail housing. DWB01CM2310A Belastningsrelé.
Technical Specifications
- Manufacturer part number (MPN)
- DWB01CM2310A
- EAN / GTIN
- 8030956005110
- Sales unit
- pcs
- Mains voltage
- 208-240 V AC
- Mounting
- Industrial DIN-rail
- Power function
- Power factor
- 3-phase voltage range
- 208-240 Vac
- Time delay
- Delay on alarm
- Output
- 1 x SPDT change-over contact
- Max. permitted delay-on energization time
- 30 s
- Type of electric connection
- Screw connection
- With approval according to UL
- Yes
- E-number (NO)
- 4134842
- Rated control supply voltage AC 50 Hz
- 208–240 V
- Rated control supply voltage AC 60 Hz
- 208–240 V
- Voltage type for actuating
- AC
- Rated voltage
- 208–240 V
- Measurement current
- 0.5–10 A
- Number of phases
- 3
- Min. adjustable delay-on energization time
- 0.1 s
- Min. adjustable off-delay time
- 0.1 s
- Max. permitted off-delay time
- 30 s
- Number of contacts as change-over contact
- 1
- Width
- 45 mm
- Height
- 80 mm
- Depth
- 99.5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956005110
- SAP 1000140507
- Code 8174414
Product Documentation
