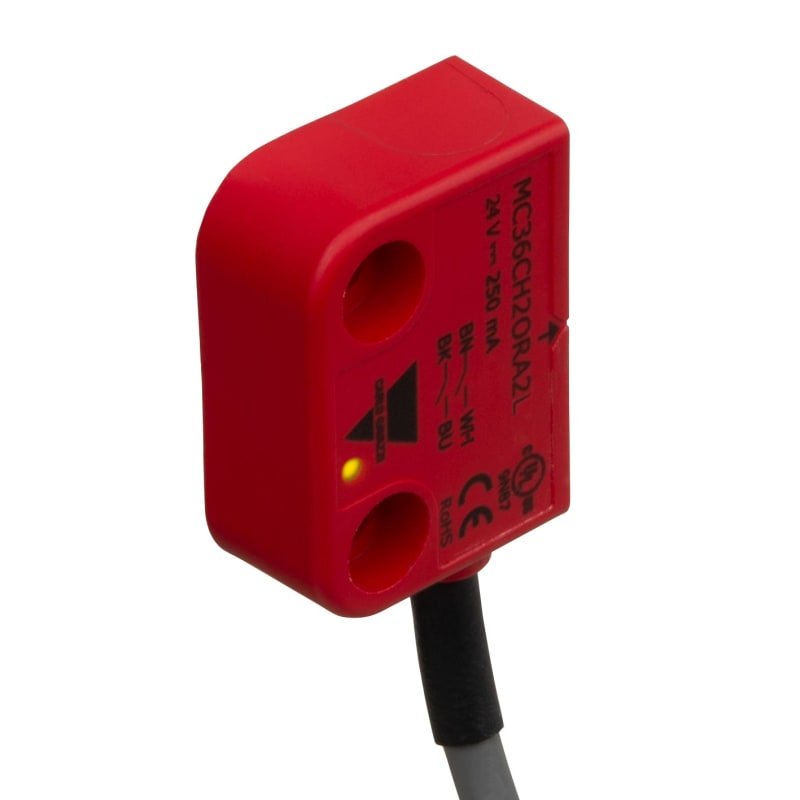

Carlo Gavazzi MC36CH1O1CRA2L Safety Magnetic Sensor with LED, 1NO+1NC, 2 m Cable, IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi MC36CH1O1CRA2L is a rectangular plastic-housed safety magnetic sensor with one NO and one NC reed contact, a status LED and a 2 m right-exit cable. Maximum switching values are 12/24 Vac/dc, 250 mA, 6 W, with a switch-on distance of 5 mm and switch-off at 15 mm. Operating range -25 to +80 °C, IP67.
Technical Specifications
- Manufacturer part number (MPN)
- MC36CH1O1CRA2L
- EAN / GTIN
- 5709870398358
- HS code
- 8544.42
- Sales unit
- pcs
- Switch ON distance
- 5 mm
- Switch OFF distance
- 15 mm
- Output type
- Reed switch
- Max switching current
- 250 mA
- Connection type
- Cable
- Housing type
- Rectangular
- Degree of protection
- IP67
- E-number (NO)
- 4367676
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 5709870398358
- SAP 1200583112
- Code 82959268
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Carlo Gavazzi MC36CH1O1CRM5L Safety Magnetic Sensor with LED, 1NO+1NC, M8 Connector, IP67
Carlo Gavazzi

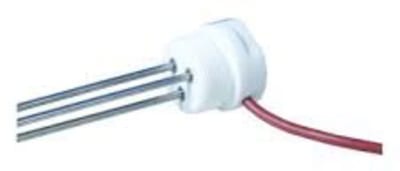

Level Probe Conductive 3 Electrodes (VT3)
Carlo Gavazzi

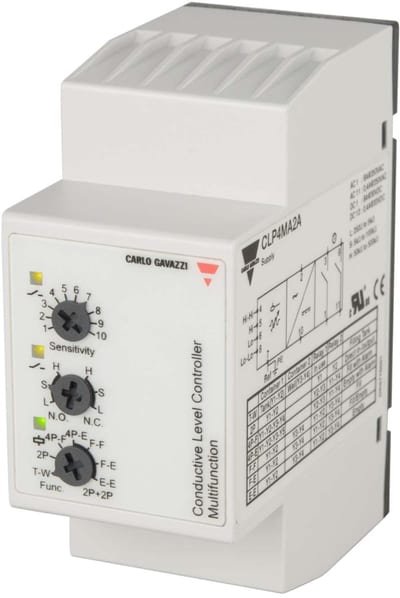

Carlo Gavazzi CLP4MA2AM24 Conductive Level Controller 24 VAC/DC
Carlo Gavazzi

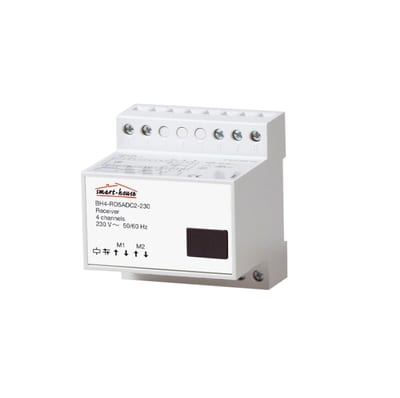

SMH relay output for awning 2X5A
4540526
Carlo Gavazzi

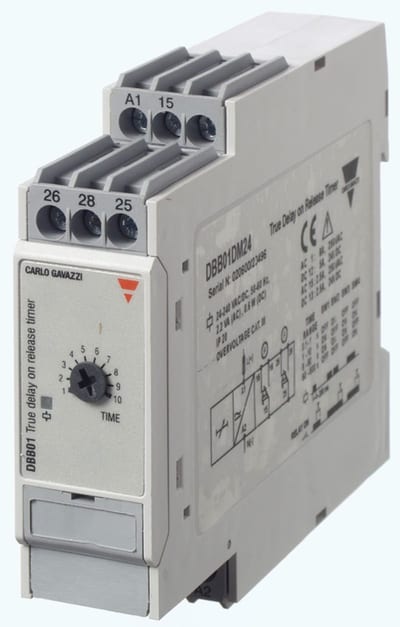

Time relay delayed off 10M 2XRELEUTG. 22.5mm
DBB01DM24
Carlo Gavazzi
3-Phase Soft starter (RSBD4050EV61HP)
Carlo Gavazzi
3F230-400VAC/55A (RSBT4855CV0)
Carlo Gavazzi

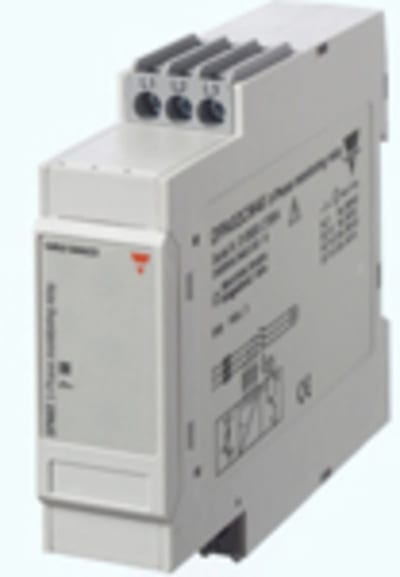

Phase Sequence relay 400V
