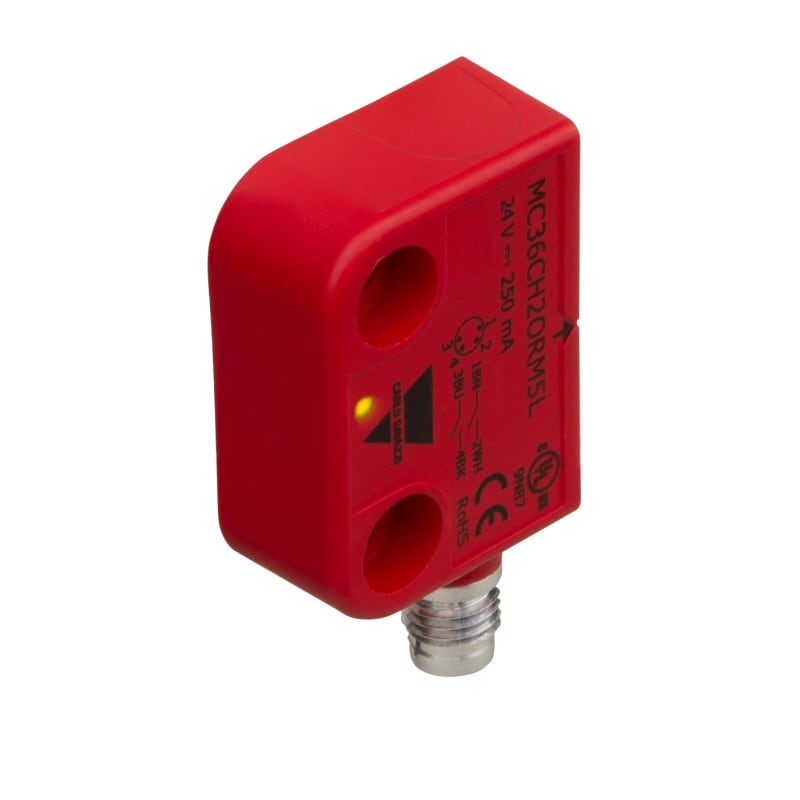

Carlo Gavazzi MC36CH1O1CRM5L Safety Magnetic Sensor with LED, 1NO+1NC, M8 Connector, IP67
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi MC36CH1O1CRM5L is a rectangular plastic-housed safety magnetic sensor with one NO and one NC reed contact, a status LED and an M8 connector on the right side. Maximum switching values are 12/24 Vac/dc, 250 mA, 6 W, with a protected switch-on distance of 5 mm and switch-off at 15 mm. Performance level e per EN ISO 13849-1; sensor body 36x26x13 mm; IP67.
Technical Specifications
- Manufacturer part number (MPN)
- MC36CH1O1CRM5L
- EAN / GTIN
- 5709870398433
- Sales unit
- pcs
- Switch ON distance
- 5 mm
- Switch OFF distance
- 15 mm
- Output type
- Reed switch
- Max switching current
- 250 mA
- Connection type
- Connector M8
- Housing type
- Rectangular
- Degree of protection
- IP67
- E-number (NO)
- 4367678
- Number of contact energized outputs with signalling function
- 2
- Type of actuation
- Magnet
- Type of electric connection
- Connector M8
- Type of switching output
- Dry reed contact
- Width sensor
- 26 mm
- Height of sensor
- 13 mm
- Length of sensor
- 36 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Coating housing
- Uncoated
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 0.25 mA
- Min. output current
- 0 mA
- Voltage type
- AC/DC
- Switching distance
- 5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870398433
- SAP 1200583114
- Code 82959226
Product Documentation
