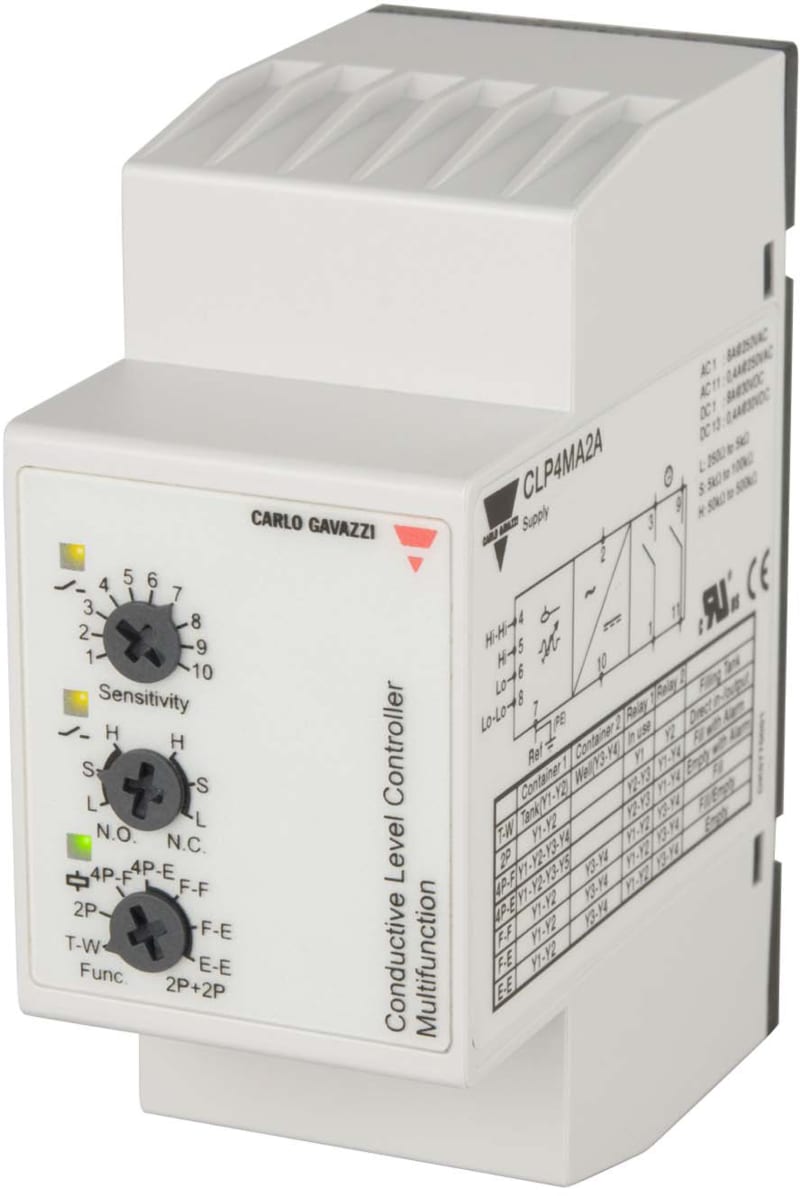

Carlo Gavazzi CLP4MA2AM24 Conductive Level Controller 24 VAC/DC

Carlo Gavazzi CLP4MA2AM24 is a plug-in conductive level controller for 2- to 4-point filling and emptying control with multifunction logic. Sensitivity is adjustable from 250 ohm to 500 kohm and the unit provides two SPST relay outputs rated 8 A. Supply is 24 VAC/DC and the 35.5 x 81 x 60.2 mm housing carries IP20 protection.

Manufacturer part number (MPN)

CLP4MA2AM24

EAN / GTIN

5709870381442

Sales unit

pcs

Adjustable sensitivity

No

Rated operating voltage

19.2 V ... 28.8 V

Connection type

Plug-in connection

E-number (NO)

4367628

E-number (SE)

3864383

Operating voltage AC 50 Hz

0–5 V

Operating voltage AC 60 Hz

0–5 V

Supply voltage AC 50 Hz

19.2–28.8 V

Supply voltage AC 60 Hz

19.2–28.8 V

Supply voltage DC

19.2–28.8 V

Rated switch current

8 A

Voltage type (operating voltage)

AC

Type of electric connection

Plug-in connection

Rated control supply voltage AC 50 Hz

24 V

Rated control supply voltage AC 60 Hz

24 V

Rated control supply voltage DC

24 V

Voltage type for actuating

AC/DC

Number of inputs for electrodes

4

Min. adjustable operate delay time

1 s

Max. permitted operate delay time

1 s

Min. adjustable off-delay time

1 s

Max. permitted off-delay time

1 s

Number of contacts as normally open contact

1

Number of contacts as change-over contact

1

Physical measurement principle

Conductive

Width

35.5 mm

Height

81 mm

Depth

60.2 mm

Country of origin

Italy

HS Code

9030.90

• EAN 5709870381442
• SAP 1000250103
• Code 8208272
