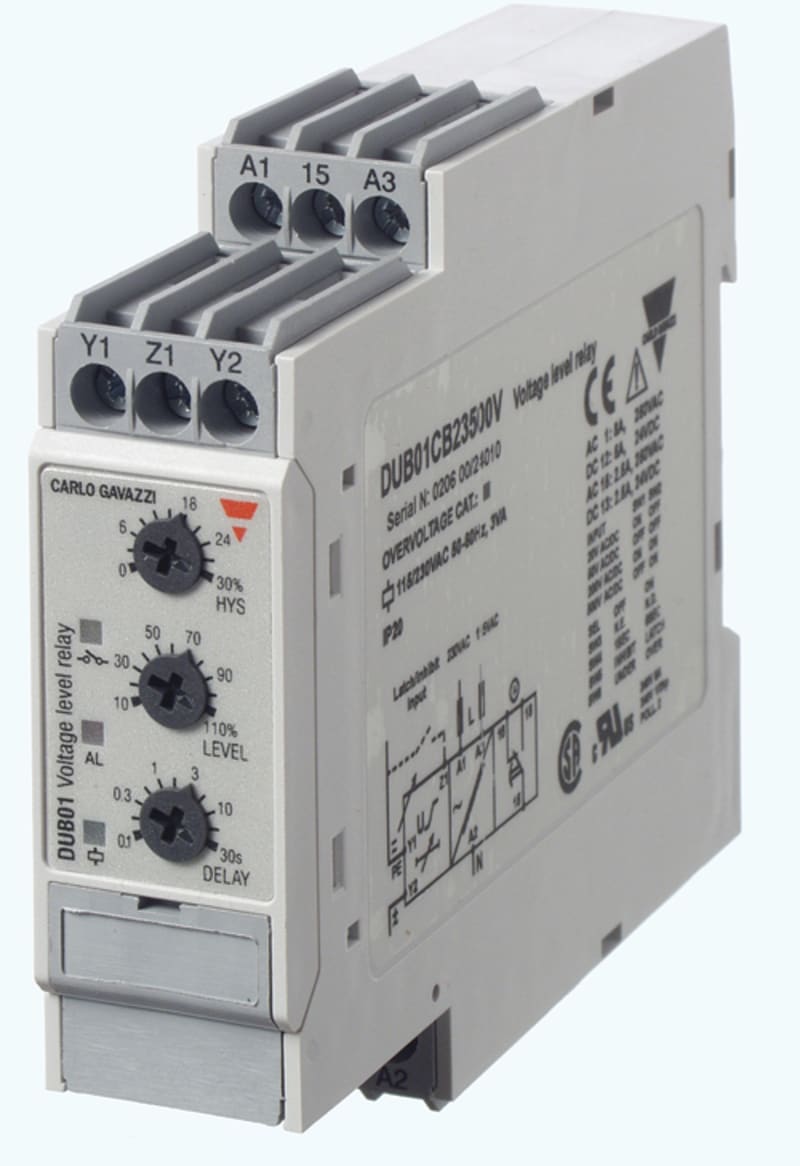

Voltage Relay AC/DC 0-10V, 230VAC (DUB01CB2310V)

Carlo Gavazzi DUB01CB2310V Manufacturer description: 1-phase AC/DC over or undervoltage monitoring relay, nominal range 0.1-10 V AC/DC, SPDT relay output, 22.5 mm DIN-rail housing. DUB01CB2310V Spenningsrelé.

Manufacturer part number (MPN)

DUB01CB2310V

EAN / GTIN

8030956000146

Sales unit

pcs

Supply Voltage

115/230 V AC

Mounting

Industrial DIN-rail

1-phase ac/dc voltage function

Overvoltage; Undervoltage; Over or undervoltage

Monitored voltage

Monitoring external voltage

1-phase voltage range

0,1-10 Vac/dc

Output

1 relay

Time delay

Delay on alarm

E-number (NO)

4367578

E-number (SE)

3864678

Type of electric connection

Screw connection

Type of voltage measuring range

AC/DC

Rated control supply voltage AC 50 Hz

115–230 V

Rated control supply voltage AC 60 Hz

115–230 V

Voltage type for actuating

AC

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

30 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

1

Width

22.5 mm

Height

80 mm

Depth

99.5 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956000146
• SAP 1000140304
• Code 81132096
