Level Relay 2 level DIN 24VAC/DC
Pricing
Request a quote
We reply within 24 hours
Product Description

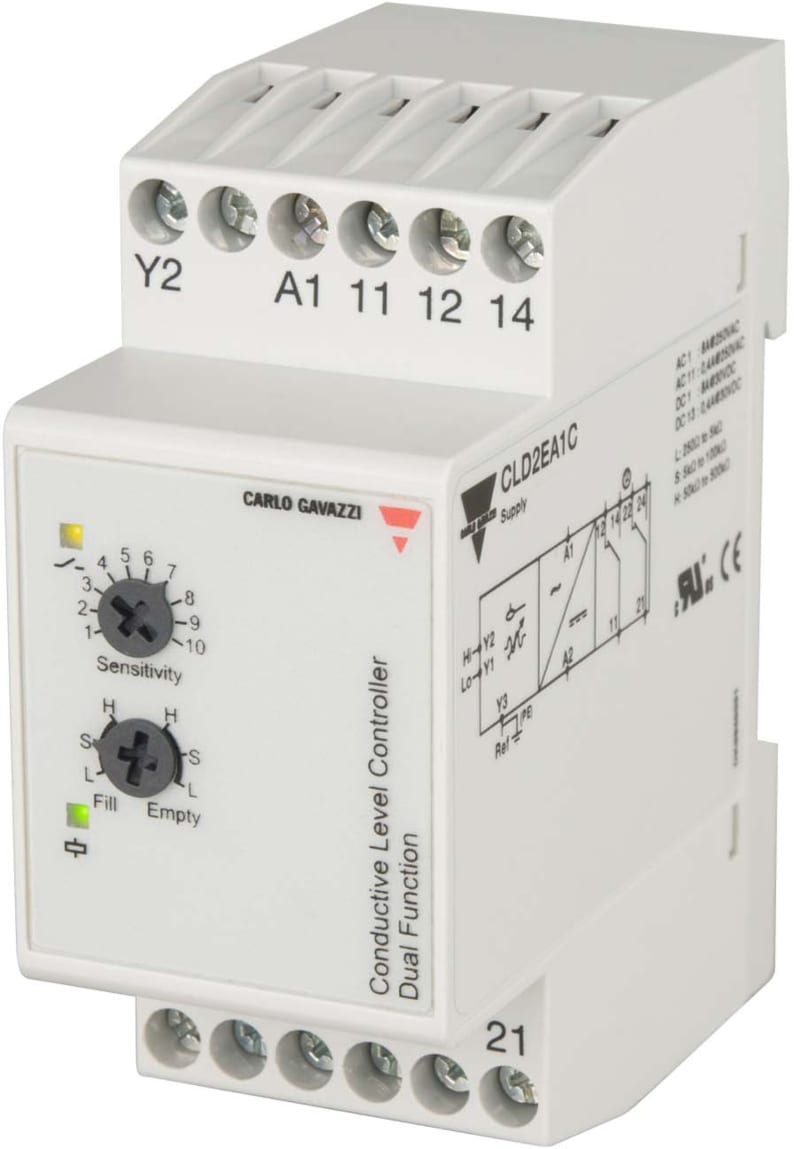

Carlo Gavazzi CLD2EA1CM24 Manufacturer description: Conductive 2-point level controller, DIN rail mount, filing-emptying function, sensitivity 250 ohm -500 Kohm, 2 x DPDT relay output, supply voltage 24VAC/DC, 35.5x81x60,2mm housing, IP20. CLD2EA1CM24 Level Relay.
Technical Specifications
- Manufacturer part number (MPN)
- CLD2EA1CM24
- EAN / GTIN
- 5709870381329
- Sales unit
- pcs
- Number of input probes
- 3
- Adjustable sensitivity
- No
- Min on-delay time
- 1 s
- Max on-delay time
- 1 s
- Min off-delay time
- 1 s
- Max off-delay time
- 1 s
- Rated operating voltage
- 19.2 V ... 28.8 V
- Connection type
- Screw terminals
- Product width
- 35.5 mm
- E-number (NO)
- 4367604
- E-number (SE)
- 3864375
- Operating voltage AC 50 Hz
- 0–5 V
- Operating voltage AC 60 Hz
- 0–5 V
- Supply voltage AC 50 Hz
- 19.2–28.8 V
- Supply voltage AC 60 Hz
- 19.2–28.8 V
- Supply voltage DC
- 19.2–28.8 V
- Rated switch current
- 8 A
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- AC/DC
- Number of inputs for electrodes
- 2
- Min. adjustable operate delay time
- 1 s
- Max. permitted operate delay time
- 1 s
- Min. adjustable off-delay time
- 1 s
- Max. permitted off-delay time
- 1 s
- Number of contacts as change-over contact
- 2
- Physical measurement principle
- Conductive
- Width
- 35.5 mm
- Height
- 81 mm
- Depth
- 60.2 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870381329
- SAP 1000250091
- Code 81125118
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
3-Phase Soft starter (RSBD4016EV61HP)
Carlo Gavazzi
Soft starter 3F 230-400VAC/16A
RSBD4016FV61HP
Carlo Gavazzi
Motor Load Monitor cos. phi 208-240V (DWA01CM235A)
Carlo Gavazzi
SMH Floor sensor FOR Temdis
BSO-TEMDIG
Carlo Gavazzi
Carlo Gavazzi MC36CH2ORA2L Safety Magnetic Sensor, 2NO, LED, 2 m Cable
Carlo Gavazzi
Meter 1-/3 Phase RS485, MID (EM330DINAV53HS1PFA)
Carlo Gavazzi
Option Module for WM30/40 (MOV2)
Carlo Gavazzi
Power Supply 100W 24VDC 4.2A
SPMA241001S
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CLD2EA1CM24?
- CLD2EA1CM24 can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CLD2EA1CM24.
- What is the HS code for CLD2EA1CM24?
- The customs tariff (HS) code for CLD2EA1CM24 is 9030.90.
- Who manufactures CLD2EA1CM24?
- CLD2EA1CM24 is a Carlo Gavazzi product in the Control & Automation range.
- Is a datasheet available for CLD2EA1CM24?
- Yes — the CLD2EA1CM24 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CLD2EA1CM24?
- The minimum order quantity is 1.
- Is CLD2EA1CM24 available?
- Yes — CLD2EA1CM24 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
